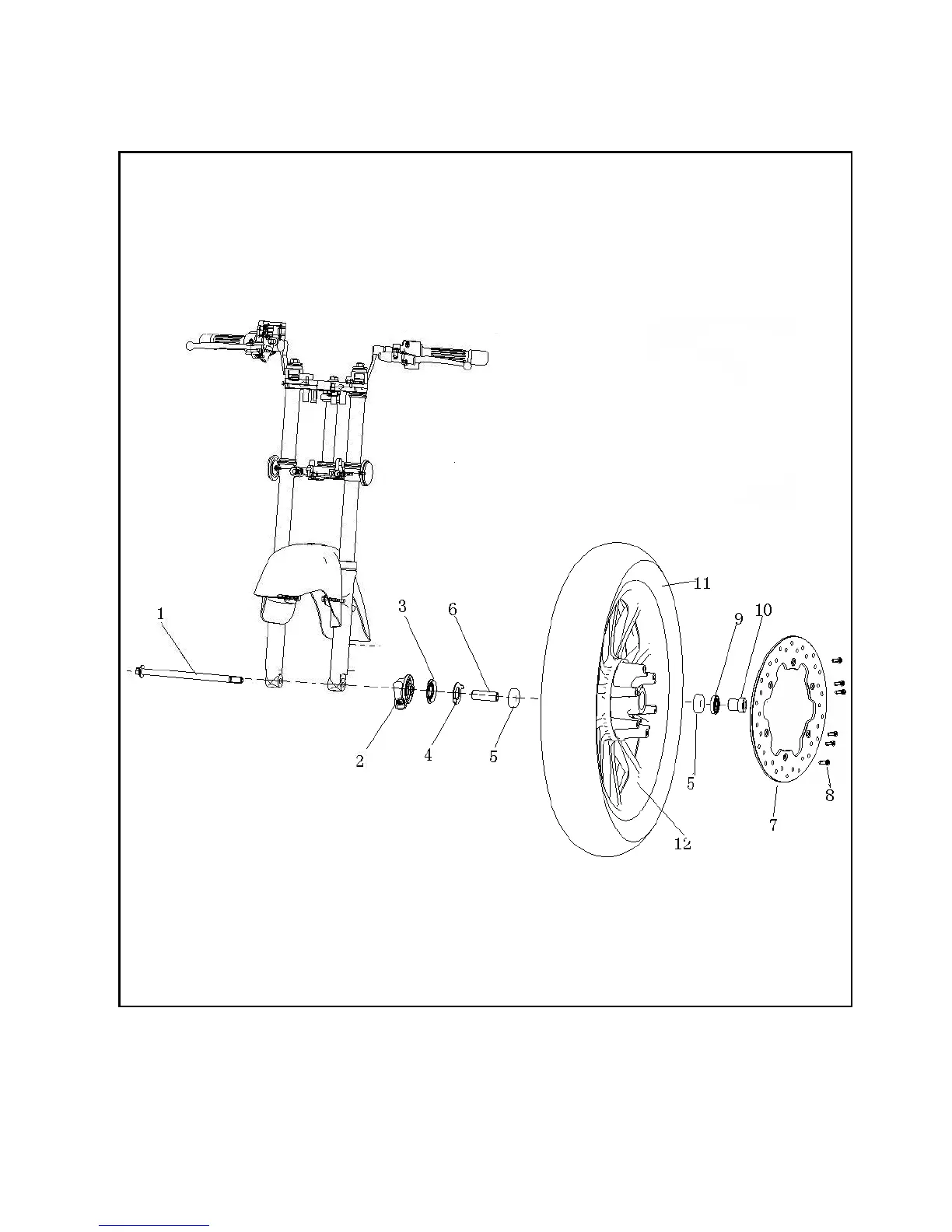

Front wheel / Front Suspension
1 Front wheel shaft 2 Gear seat assembly 3 Gear seat oil seal 4 Drive plate 5 Bearing 6 Front wheel
middle sleeve 7 Front brake disc 8 Front brake disc mounting bolt 9 Front wheel oil seal assembly 10 Front
wheel left sleeve 11 Tubeless tyre 12 Front wheel rim
