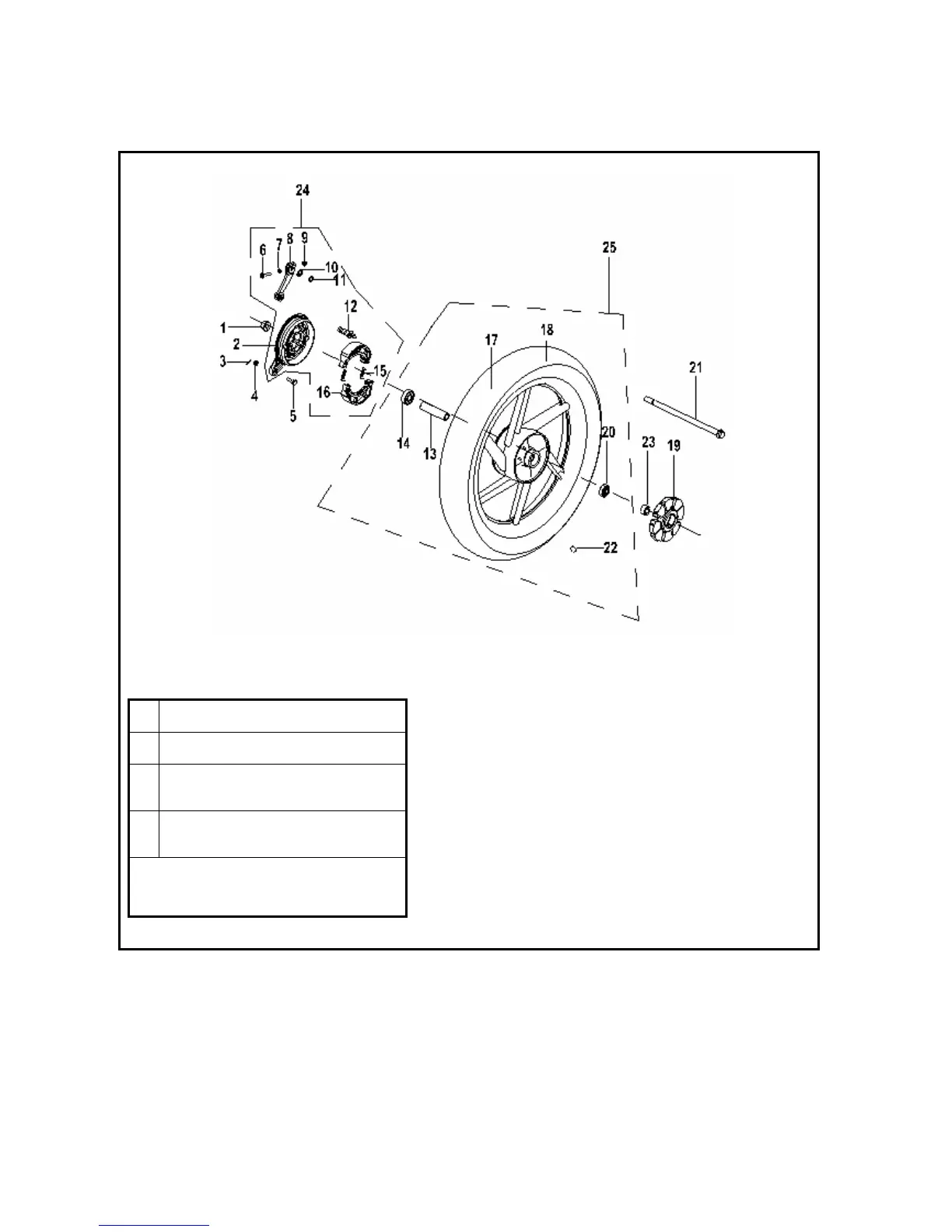

Rear Drum Brake
A
Rear brake ID：130mm
B
Service limit：131
C
Brake shoe thickness：4mm
Service limit：3mm
D
Mounting torque for Bolt 21 in the
diagram：22-29
N·m
1 Nut M14 2 Rear hub cap assembly 3 Copper pin 2×18 4 Nut M8 5 Rear hub cap mounting bolt
6 Bolt M6×30 7 Washer 6 8 Rear brake rocker arm 9 Nut M6 10 Washer 11 Cam shaft O sealing ring
12 Rear braking cam shaft 13 Rear wheel right bush 14 Rolling bearing 6302-2RS 15 Braking shoe tension
spring 16 Braking shoe assembly 17 Tube and tyre 110/80-17 18 Rear rim assembly 19 Rear buffer
20 Rolling bearing 6202-2RS 21 Rear wheel shaft 22 Valve cap 23 Rear wheel left bush
24 Rear wheel assembly 25 Rear wheel hub assembly
