10.3 Oil Pump

10.3.1 Removal

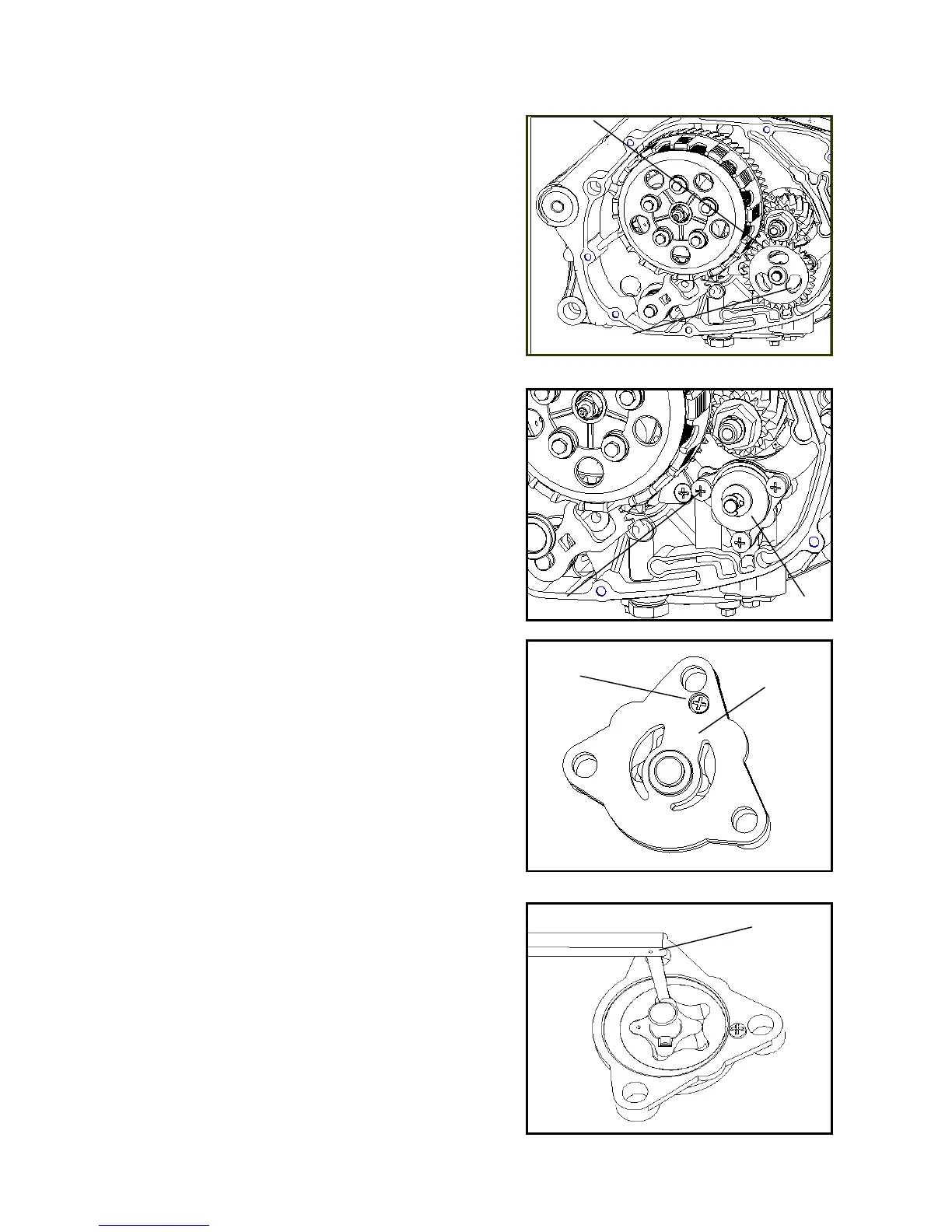

Remove right cover. Take down the engine oil filter and release

oil pump mounting screw.

Take down oil pump block, drive gear and pump shaft.

Screw off the screw

Take down pump seat.

Remove the screw and take down pump cover.

Disassemble oil pump

Check radial clearance between inner rotors

Allowable limit: 0.2mm.

Testing gauge

Screw

Engine oil pump

Screw

Engine

oil pump

Oil pump gear

Oil pump block
