Exhaust System Inspection and Maintenance
Muffler Assembly
A
Tightening torque of mounting bolt 5 for muffler connector in the diagram：5-9 N·m
B Dual catalysts are added into the muffler welding assembly in the diagram.
C
Tightening torque of combined screw 6 for muffler protecting plate in the diagram：5-9 N·m

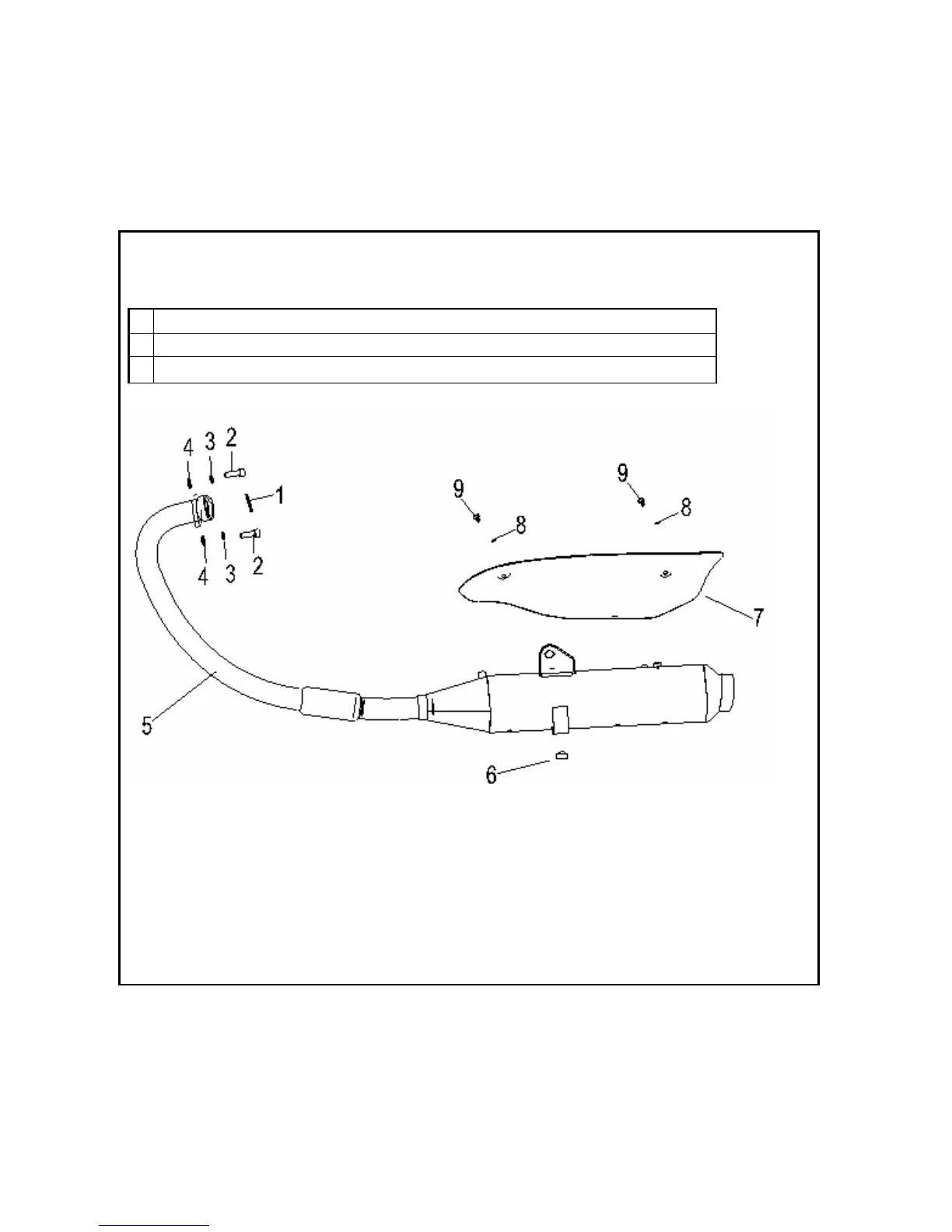

1 Exhaust pipe gasket assembly 2 Bolt M8×30 3 Washer 8 4 Spring washer 5 Muffler welding assembly
6 Muffler cushion rubber 7 Muffler decorative plate 8 Thermal insulation spacer 9 Combination screw
