8.2.2 Inflexible Wheel Rotation
Incorrect brake adjustment
Worn rear bearing
Too tight the drive chain
8.2.3 Poor Braking Performance
Incorrect brake adjustment
Worn braking shoe
Worn brake drum
Incorrect installation of braking shoe
8.2.4 Brake Pedal Inflexible or Slow
Return
Worn or broken return spring
Incorrect brake adjustment
Worn or contaminated brake drum
Incorrect installation of braking shoe
8.2.5 Noisy Brake
Worn braking shoe
Worn brake drum
Contaminated braking shoe
Contaminated brake drum
8.3 Rear Wheel

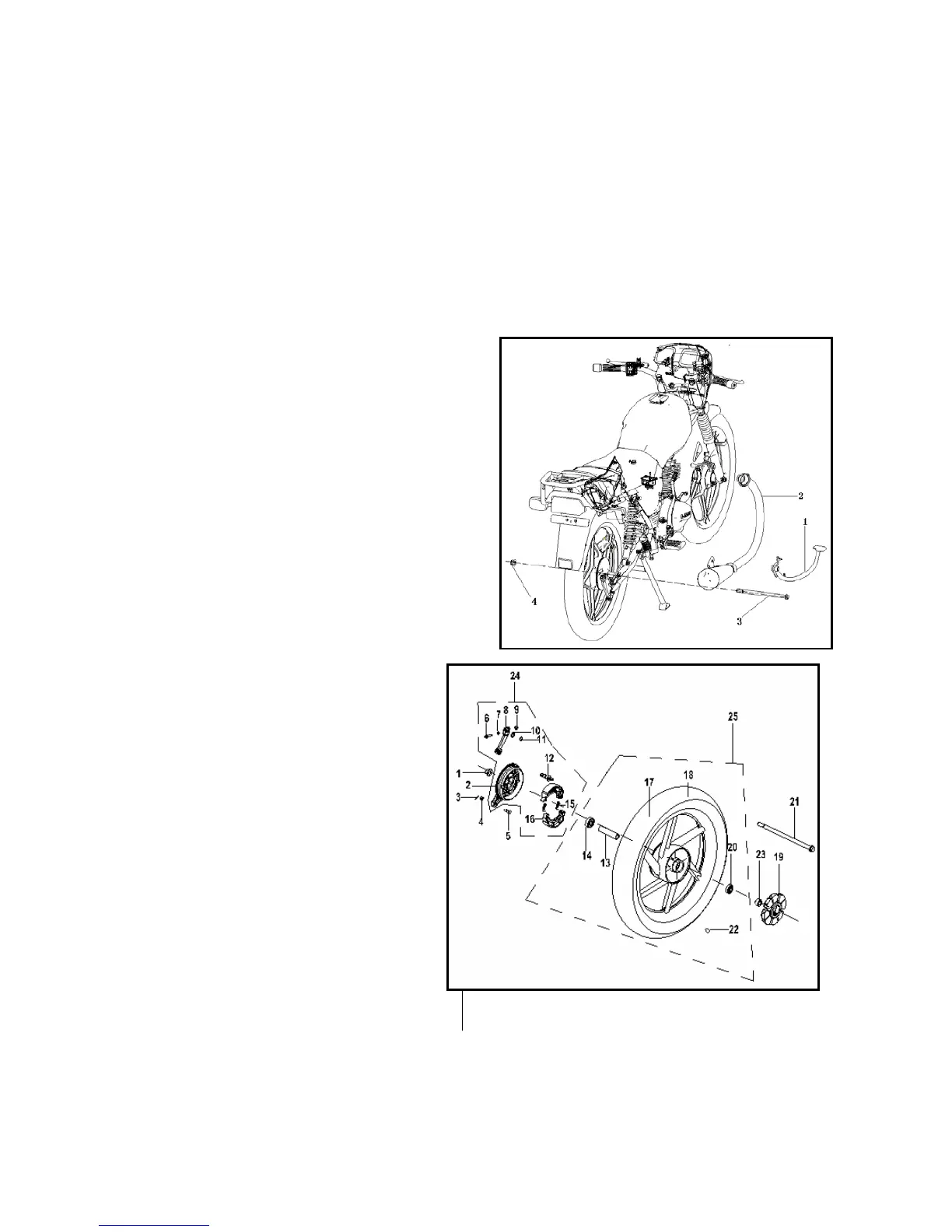

8.3.1 Removal
Stand the motorcycle steadily and rear wheel is off
the ground.
Remove rear brake pedal assembly1.
Remove muffler assembly2.
Screw off rear wheel adjuster.
Take down the brake rod from brake arm.
Remove connector and spring on the brake arm.
Remove brake pin, washer, rear wheel buffer and
brake nut.
Remove torque linked arm from rear drum brake.
Screw off drive chain adjuster20.
Remove rear shaft locknut21and rear shaft4.
Move forward rear wheel. Remove the drive chain
from the drive sprocket.
Remove the rear wheel.
