Allowable limit: Internal spring: 30mm.
External spring: 37.8mm.

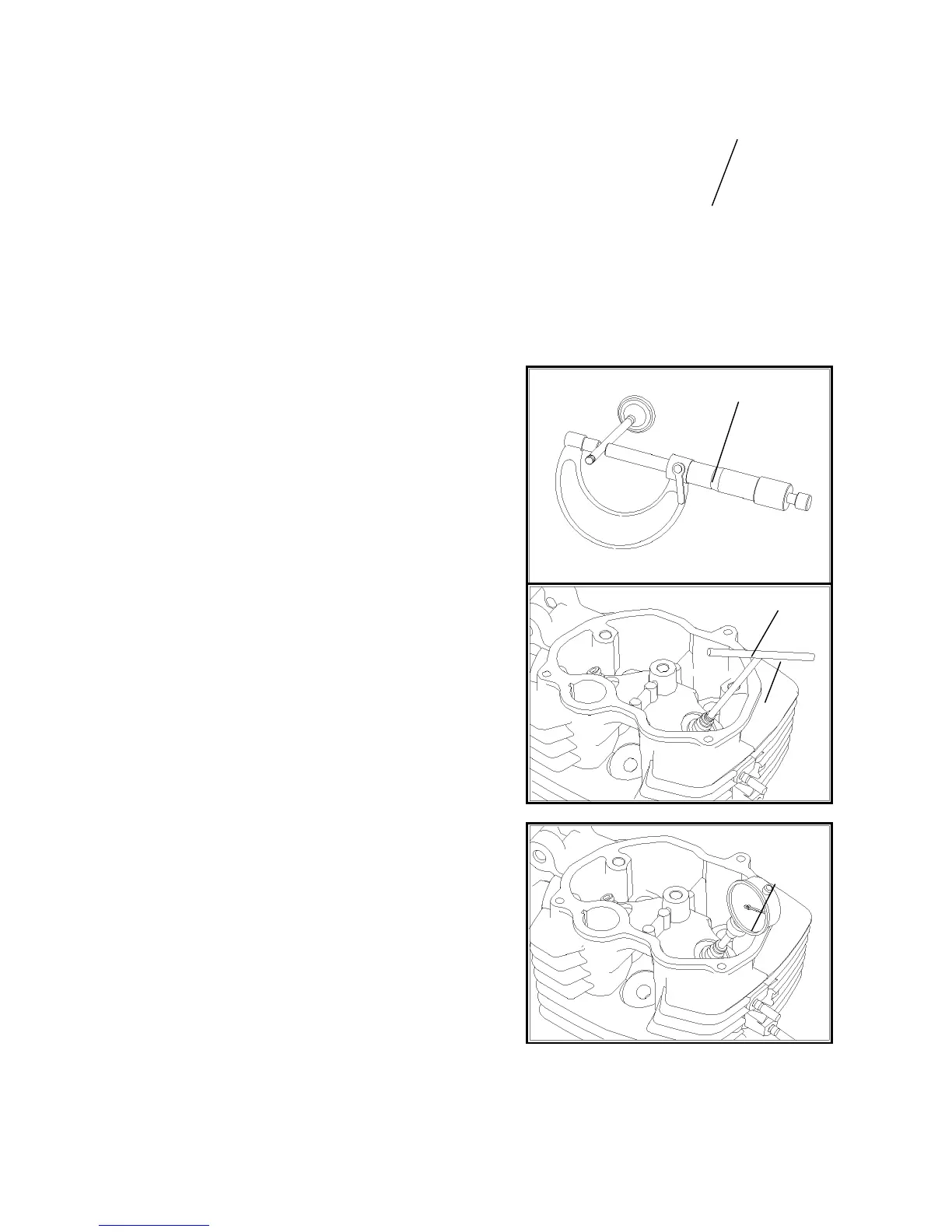

Measure OD of valve stem
Allowable limit: 4.9mm.
Check valve guide. Please eliminate the carbon deposition in the
valve guide with a reamer before inspection
Attention: Rotate the reamer in clockwise. Please do not rotate
he reamer in counterclockwise.
Measure valve guide ID.
Allowable limit: Intake/Exhaust: 5.5mm.
Clearance between valve and valve guide
Allowable limit: Intake Valve: 0.08m.
Exhaust valve: 1.0mm
Valve reamer
Micrometer
Vernier caliper
Tester
