Cylinder Block and Piston

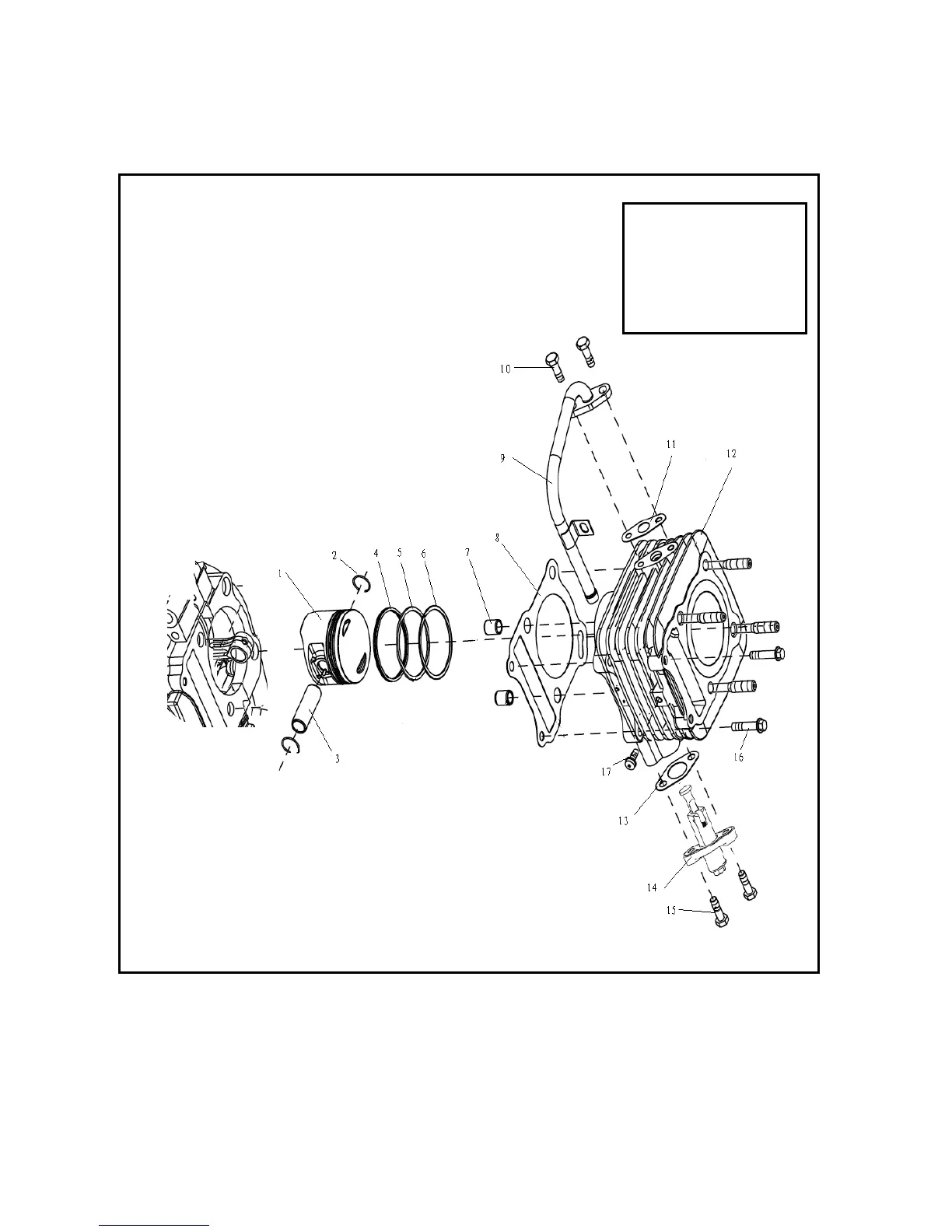

1 Piston 2 Retainer 3 Piston pin 4 Combined oil ring 5 Second compressing ring 6 Top ring 7 Location pin

8 Washer 9 Cylinder cover connecting bent pipe assembly 10 Bolt 11 Cylinder cover connecting bent pipe

washer assembly 12 Cylinder block 13 Washer 14 Tensioner assembly 15 Bolt 16 Bolt 17 Screw

Attention: All the

components shall be

cleaned before inspection

and test, and purged with

high-pressure air.
