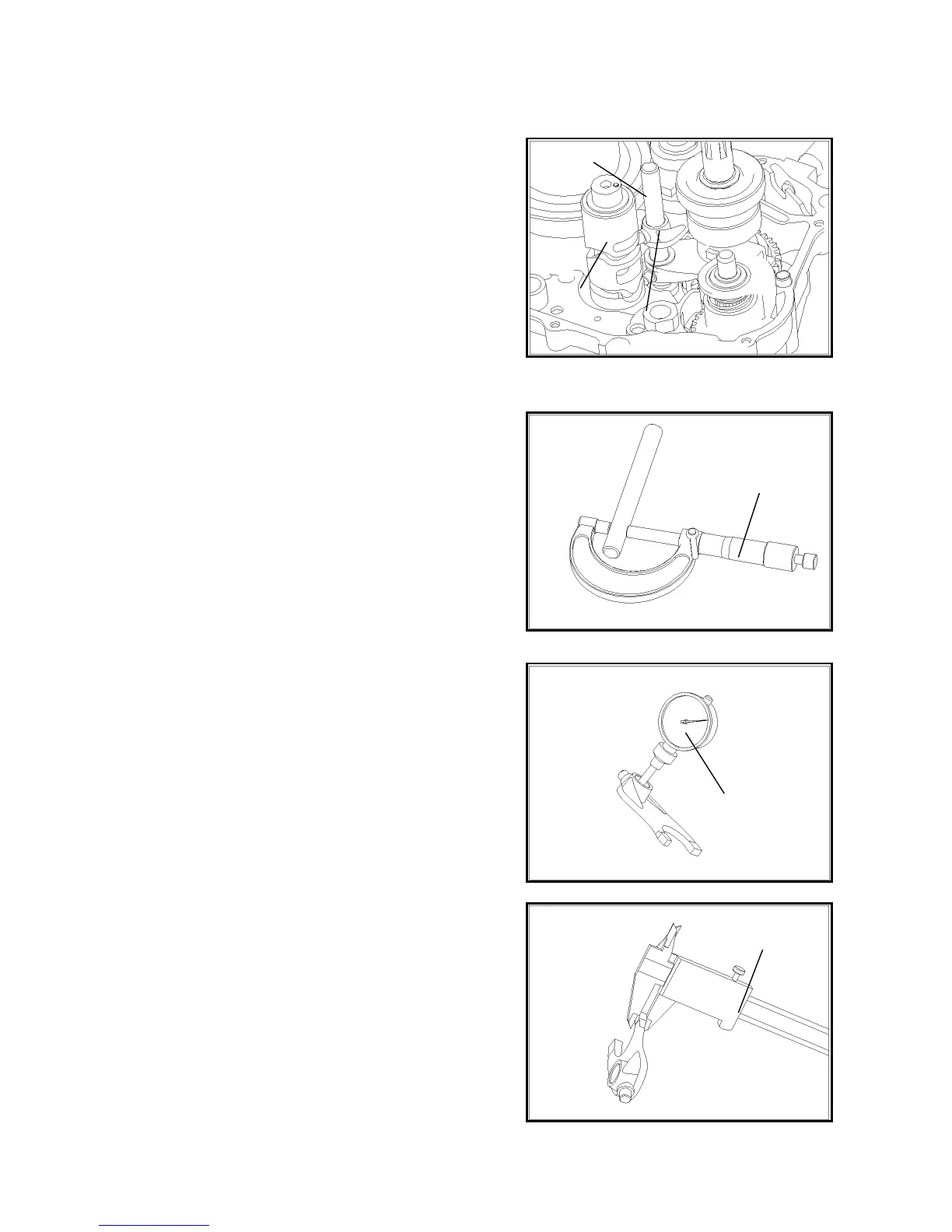

Remove left case block.
Pull out shift fork shaft.
Remove gearshift drum.
Remove gearshift fork.
Measure shift fork OD.
Allowable limit: 9.96mm.
Measure shift fork hole ID.
Allowable limit: 10.05mm.
Measure shift fork thickness.
Allowable limit: 4.6mm.
Shift fork shaft
Gearshift drum
Shifting fork
Micrometer
Tester
Vernier caliper
