Screw off rear shaft nut and lock-nuts of adjusters on both drive chains.
Rotate uniformly both adjusters till the drive chains gain normal slackness.
* Attention
Do not install new drive chains onto worn sprockets or install worn drive chains onto the new sprockets.
Keep both sprocket and drive chain in good conditions, or
newly replaced chain or sprocket will be worn soon.

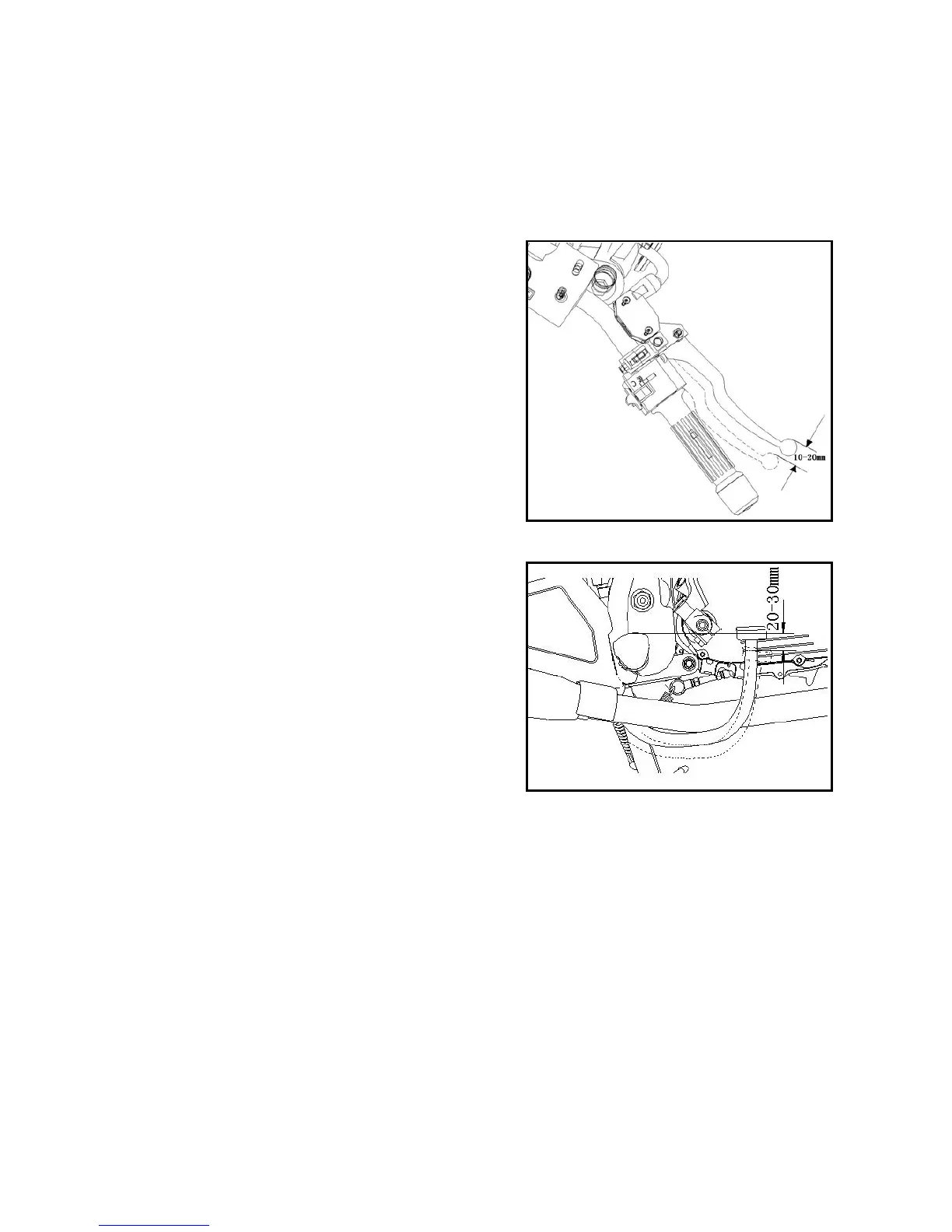

Clearance of front/rear brake
Front brake clearance
Measure the clearance of front brake at the tip of front brake
handle.
Clearance: 10-20mm
Brake pedal clearance
Measure brake pedal clearance.
Clearance: 20-30mm.
If the clearance measured does not meet the specified value,
adjust it.
Adjust clearance of brake pedal.
Screw in or screw off adjuster.
If the adjuster is screwed in, clearance is decreased; if screwed
out, clearance is increased.
Adjust till the clearance is up to the specification.
After adjustment, brake does not drag.
Headlamp
Remove mounting screw (1) of cowling.
Remove cowling（3）, headlamp hood and headlamp.
Pull out headlamp holder and remove the reflector.
Release the circlip and take out lamp adapter.
* Attention
When the bulb is lit, keep your hands and inflammable materials with some distance away from it. If lighting bulb is
hot, touch it when it cools down.
