C-5000 COMMUNICATION MANAGEMENT CONTROLLER
INSTALLATION MANUAL
Publication No. 150-041118 Page 5-5
Rev. A Section 5 – Configuration and Programming
Sep 2001

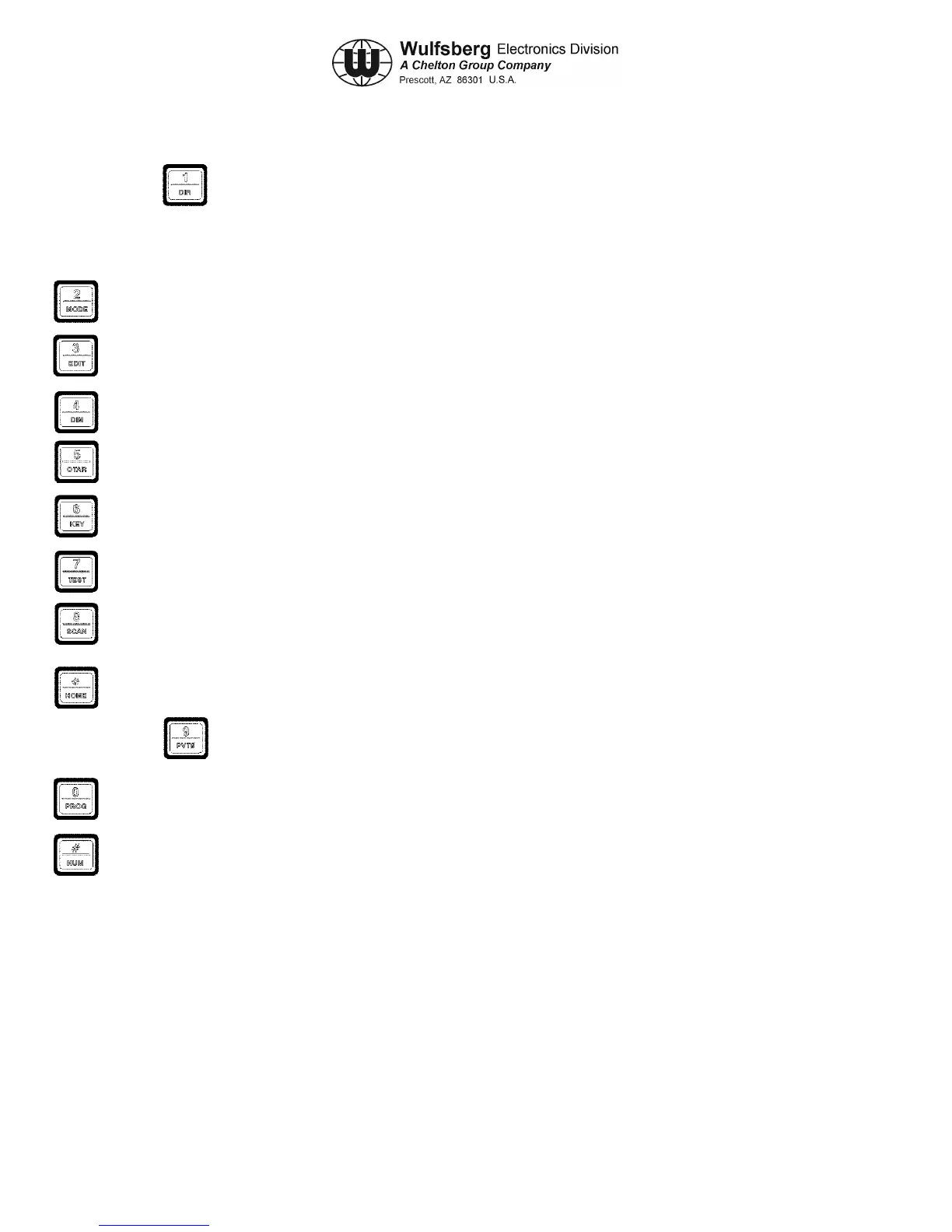

KEYPAD – The C-5000 has a 12 button keypad. Each button’s primary functions are described
below.
1:DIR Toggles the transceiver under cursor control in and out of DIRECT mode. Use this button
to enter a “1” during keypad entry mode.
2:MODE This button will cycle through the enhanced modes of operation. Use this button to
enter a “2” during keypad entry mode.
3:EDIT This button will display the EDIT PAGE for the transceiver under cursor control. Use
this button to enter “3” during keypad entry mode.
4:DIM This button will display the page used to control the display’s brightness. Use this button to enter a “4”
during keypad entry mode.
5:OTAR This button will initiate an “Over The Air Rekey” for the transceiver under cursor control . Use this
button to enter a “5” during keypad entry mode.
6:KEY This button will prompt the user for a transmit encryption key to override the preset value for the transceiver
under cursor control. Use this button to enter a “6” during keypad entry mode.
7:TEST This button will override the squelch system of the radio under cursor control, allowing the user to set the
volume level. Use this button to enter a “7” during keypad entry mode
8:SCAN FUNCTION NOT AVAILABLE AT THIS TIME. Use this button to enter a “8” during keypad entry
mode.
*:HOME This button will display the HOME PAGE, except in some advanced modes of operation, where it will
return the user to a previous page or mode of operation. Use this button to enter a “*” during keypad entry mode.
9:PVTφ
φφ
φ This button will toggle the transceiver under cursor control in and out of private mode.
Use this button to enter a “9” during keypad entry mode.
0:PROG This button will display the programming password page. Use this button to enter a “0”
during keypad entry mode.
#:NUM This button will select keypad entry mode, such as for entering a channel number or
frequency using the keypad. Use this button to enter a “#” during keypad entry mode.
