Scanner Options, Maintenance and Troubleshooting
Xerox
®
DocuMate
®
4790
User’s Guide
9-160

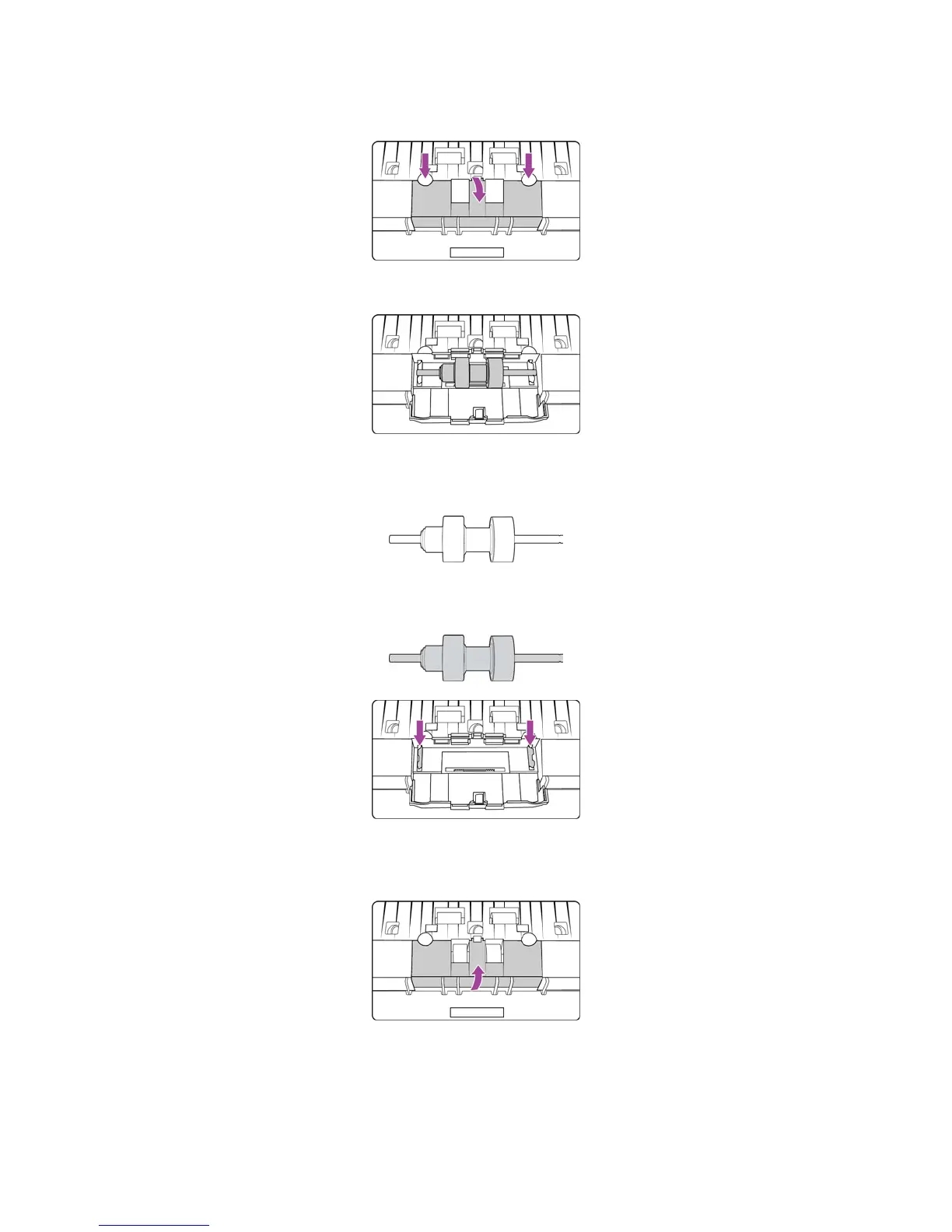

1. Flip open the double feed prevention roller cover.
2. Lift the roller up and out of the scanner.
3. Discard the roller, it cannot be repaired or reused.
4. Take the new roller out of its packaging.
5. Align the roller bar with the brackets in the roller compartment. Make sure the groove on the right side of the
roller bar is aligned so that it slides in place into the U shape of the bracket.
6. The roller is properly in place when you cannot rotate the metal bar of the roller.
7. Close the double feed prevention roller cover when you are finished.
