Scanner Options, Maintenance and Troubleshooting
Xerox
®
DocuMate
®
4790
User’s Guide
9-163

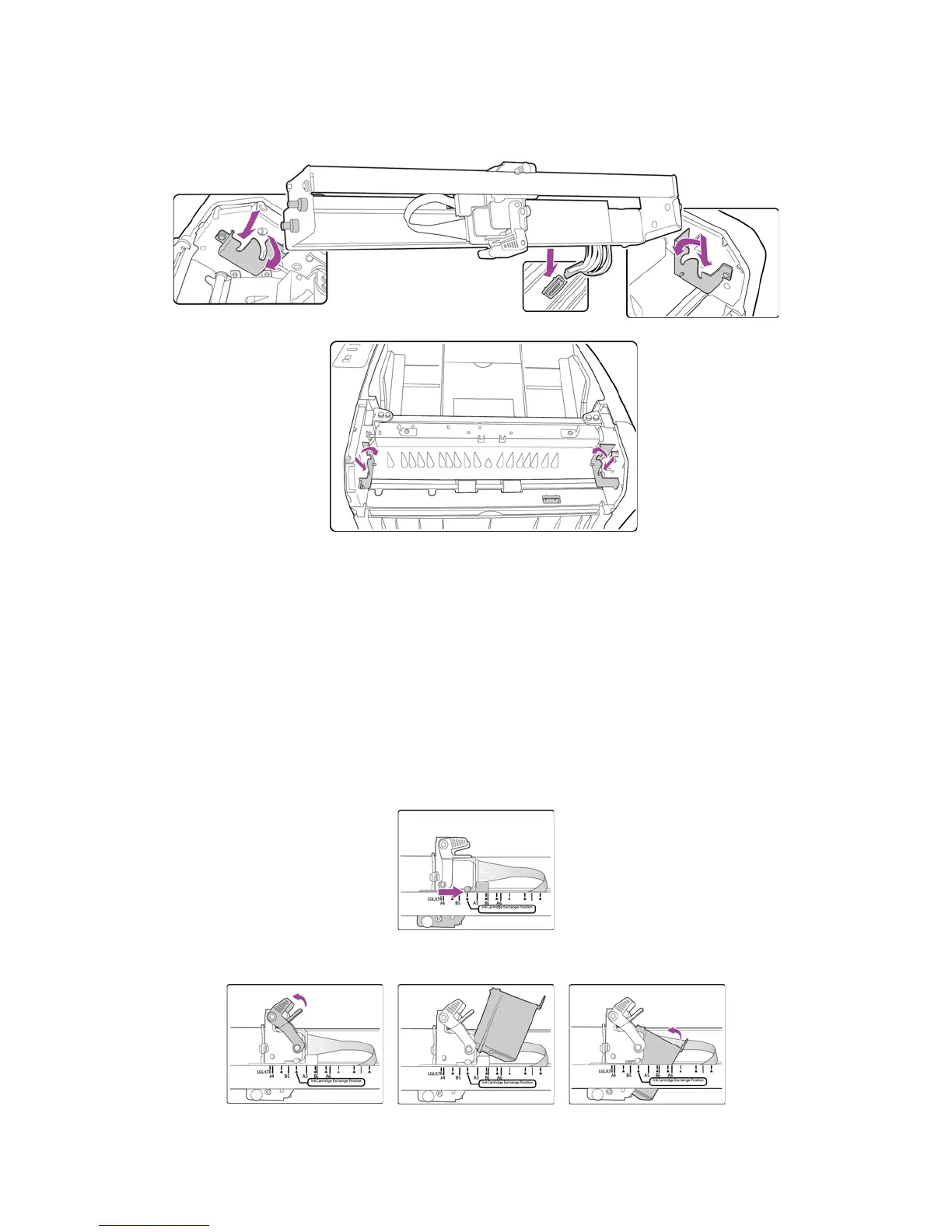

4. While keeping the imprinter in the direction shown in the diagram below, insert the pins on both sides of the
imprinter, into the slots in the scanner. Slide the imprinter unit down until it locks in place.
5. Close the post-imprinter door when you are finished.
Installing an Ink Cartridge
1. Turn off the scanner.
2. Open the imprinter door.
3. Remove the protective tape from the ink cartridge.
4. Move the ink cartridge carriage to the ink cartridge exchange position on the imprinter unit.
5. Insert the ink cartridge into the carriage as shown in the diagram.
