Xerox DocuPrint C1190 FS - Page 208

Replacing the Consumables
11-16

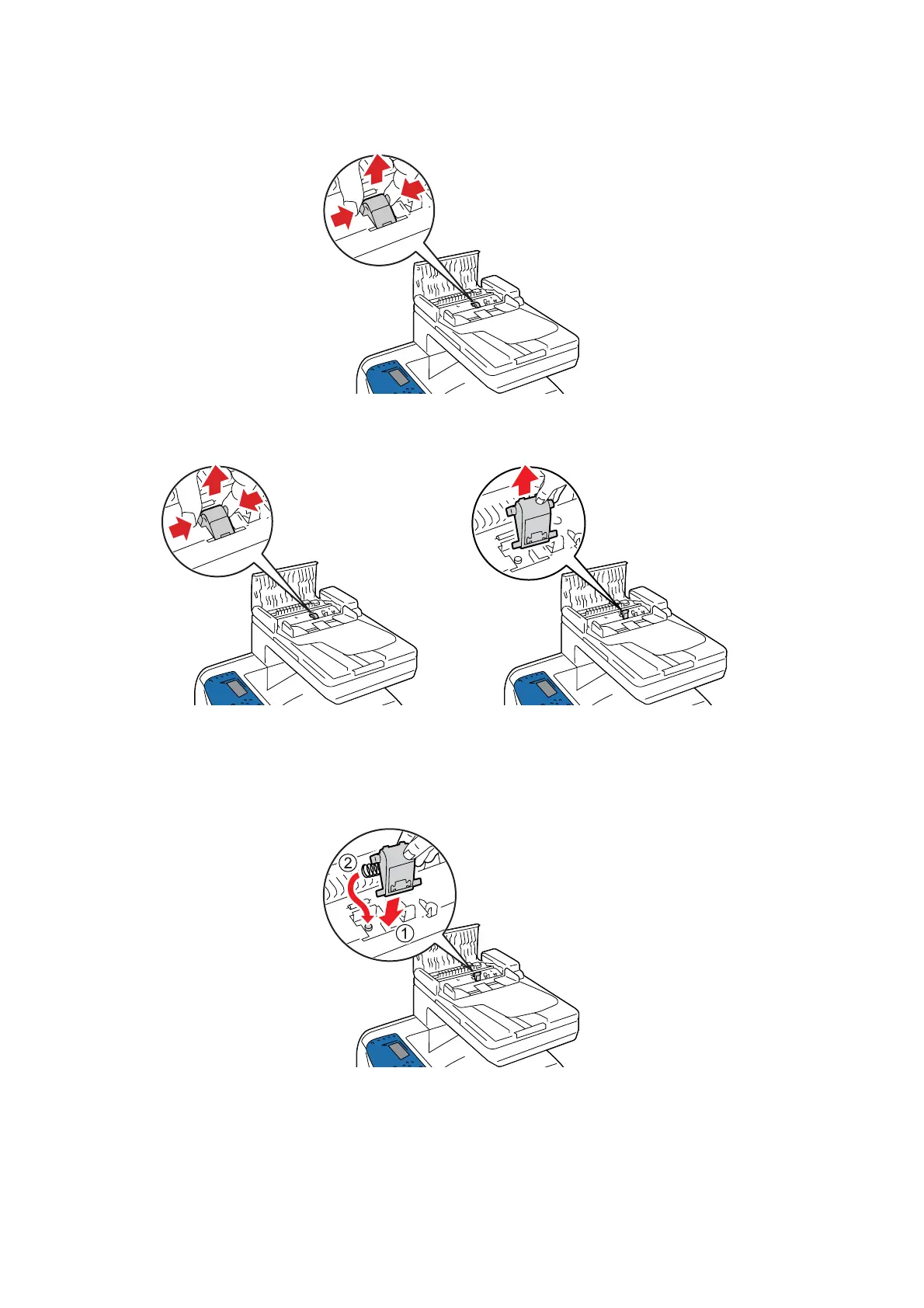

3. Pinch the claws on both sides of the ADF Pad.
4. Pull out the ADF Pad.
5. Insert and align the leading edge of the ADF Pad in the bearings.
Important: A spring is attached to the rear side of the ADF Pad. When inserting the ADF Pad, do not
dislocate the spring.
