Xerox Phaser 3635MFP User Manual

3-8
Phaser 3635MFP
IQ1, IQ2
Draft 4
Image Quality

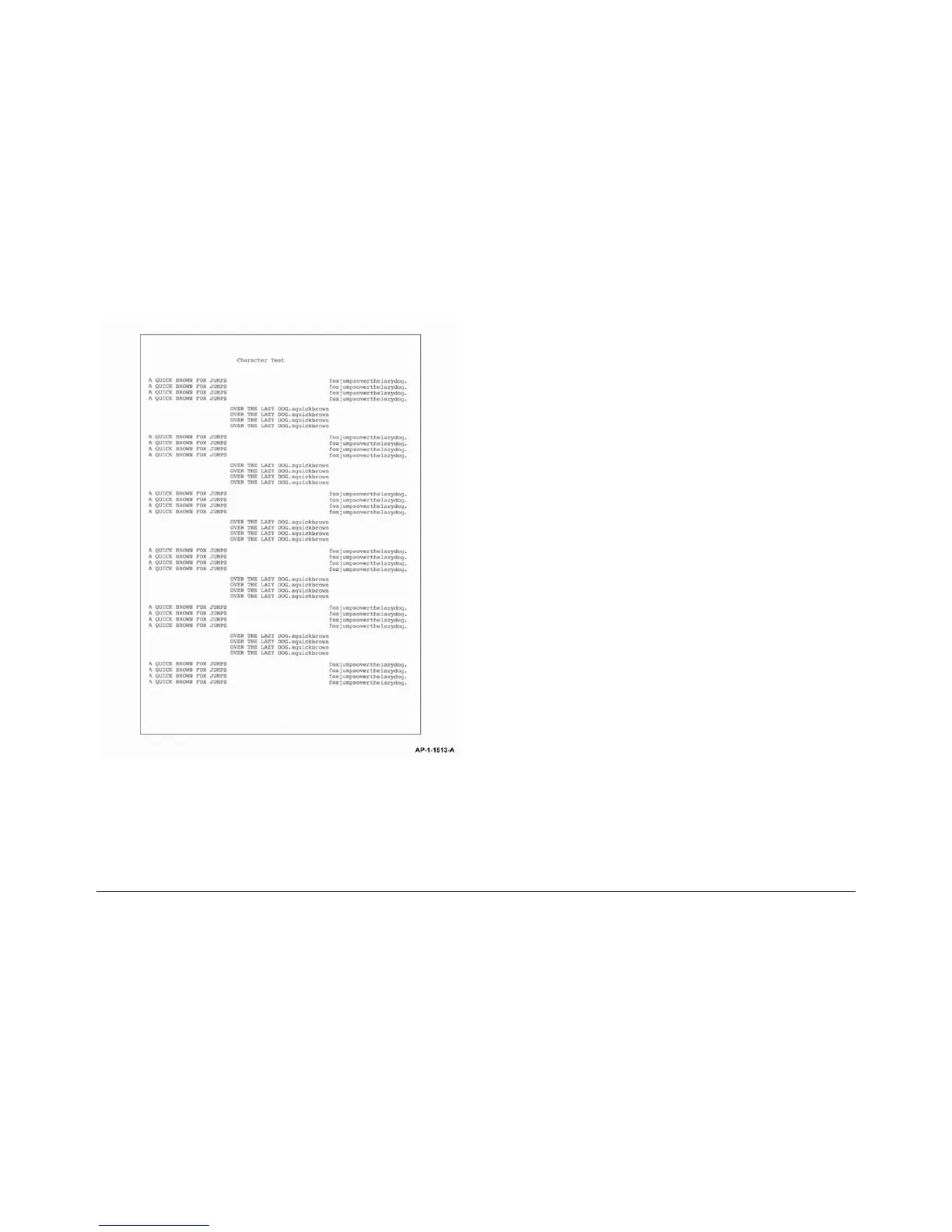

Figure 7 Test pattern 8 and 16
IQ2 Blank Copies RAP
Use this RAP when the machine produces blank copies.
Procedure
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Determine the source of the problem. Make a print. Make a copy.
2. If the fault appears only in copy mode, perform the following:
a. Ensure the DADF is closed. Room illumination can be transmitted through thin origi-
nals.
b. If the fault appears only when using the DADF, check that the scanner lock, PL 14.10
Item 22 is completely unlocked.
c. Perform the Shading Test procedure, GP 15. If the shading test fails:
i. Install new components as necessary:
• CCD module, PL 14.10 Item 8.
• CCD module cable, PL 14.10 Item 23.
• Scanner assembly, PL 14.10 Item 26.
ii. Perform OF7 Main PWB Check RAP.
3. If the fault appears in all modes, perform the following:
a. Examine the print cartridge, PL 9.10 Item 1. Ensure it is free from all packing or seal-
ing material.
b. Check the LSU. Go to the 06-100, 06-200 LSU Error RAP.
c. Refer to Wiring Diagram 5. Perform the following:
• Check the wiring between the LSU and CN24 on the Main PWB.
• Install a new LSU, PL 6.10 Item 1.
d. Perform the following:
• Refer to Wiring Diagram 2. Check the spring contacts between the HVPS PL
1.10 Item 3 and the print cartridge PL 9.10 Item 1. The spring contacts supply
the voltages to the print cartridge. If necessary, clean the spring contacts.
• Check the following wiring:
– Wiring Diagram 1. Between CON3 on the SMPS and the CN6 on the Con-
nection PWB.
– Wiring Diagram 2. Between CN31 on the Main PWB and CN5 on the
HVPS.
– Wiring Diagram 6. Between CN5 on the Connection PWB and CN26 on
the Main PWB.
e. Install new components as necessary:
• HVPS, PL 1.10 Item 3.
• Connection PWB, PL 3.10 Item 17.
• Print cartridge, PL 9.10 Item 1.
Perform OF7 Main PWB Check RAP.

Xerox Phaser 3635MFP Specifications

General

Network ready	Yes
Dimensions (WxDxH)	472 x 478 x 54 mm
Networking features	Fast Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	Scan
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	33 ppm
Digital sender	No
Maximum duty cycle	75000 pages per month
Page description languages	PCL 5e, PCL 6, PostScript 3
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	99 copies
Scan to	E-mail, Fax, FTP, USB
Maximum scan area	220 x 300 mm
Image formats supported	JPG, TIF
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Fax coding methods	JBIG, JPEG, MH, MMR (Fax coding method), MR
Fax speed dialing (max numbers)	199
Paper input type	Paper tray
Total input capacity	550 sheets
Total output capacity	250 sheets
Maximum number of input trays	3
Auto document feeder (ADF) input capacity	60 sheets
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper, Transparencies
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Display	LCD
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	1
Security algorithms	802.1x RADIUS, HTTPS
Supported network protocols (IPv4)	FTP, HTTP, HTTPs, LPR, SNMPv1, SNMPv2, SNMPv3, TCP/IP, UDP
Internal memory	512 MB
Card reader integrated	-
Internal storage capacity	80 GB
Sound pressure level (printing)	59 dB
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	15 W
Power consumption (PowerSave)	55 W
Power consumption (average operating)	600 W
Mac operating systems supported	Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Professional, Windows XP Professional x64
Storage temperature (T-T)	10 - 32 °C
Operating temperature (T-T)	16 - 30 °C
Storage relative humidity (H-H)	20 - 80 %
Operating relative humidity (H-H)	30 - 70 %
Sustainability certificates	ENERGY STAR
Certification	CE, FCC, RoHS
