Xerox Phaser 3635MFP User Manual

4-18
Phaser 3635MFP
REP 5.6, REP 5.7
Draft 4
Repairs and Adjustments
REP 5.6 DADF Paper Length Sensor
Parts List on PL 5.20
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
1. Remove the DADF, PL 5.10 Item 1.
2. Remove the DADF rear cover, PL 5.10 Item 9.
3. Remove the DADF front cover, PL 5.10 Item 10.
4. Remove 3 screws to remove the input tray, PL 5.20 Item 1.
5. Remove the sensor assembly cover, PL 5.20 Item 12.
6. Remove the DADF paper length sensor, PL 5.20 Item 11.
Replacement
1. Replacement is the reverse of the removal procedure.
REP 5.7 Pickup Assembly
Parts List on PL 5.25
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
1. Remove the DADF, PL 5.10 Item 1.
2. Remove the DADF door assembly, PL 5.10 Item 3.
3. Release the pickup spring PL 5.25 Item 7,
4. Remove the pickup assembly, Figure 1.

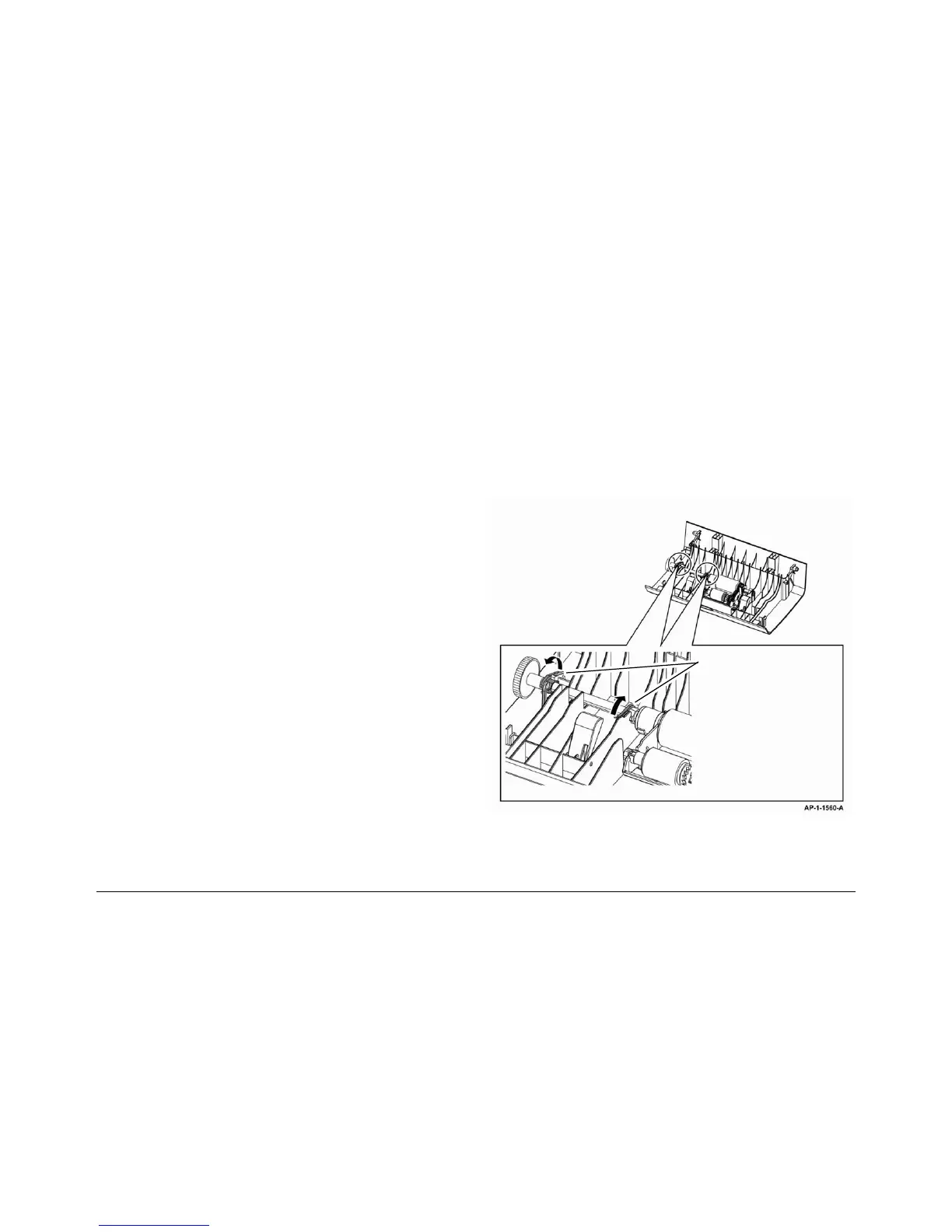

Figure 1 Pickup assembly removal
Replacement
1. Ensure that the pickup assembly is correctly installed into the DADF door assembly, Fig-
ure 2.
1
Rotate the locking collars into the
vertical position
2
Carefully unclip the pickup assem-
bly from the DADF door assembly

Xerox Phaser 3635MFP Specifications

General

Network ready	Yes
Dimensions (WxDxH)	472 x 478 x 54 mm
Networking features	Fast Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	Scan
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	33 ppm
Digital sender	No
Maximum duty cycle	75000 pages per month
Page description languages	PCL 5e, PCL 6, PostScript 3
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	99 copies
Scan to	E-mail, Fax, FTP, USB
Maximum scan area	220 x 300 mm
Image formats supported	JPG, TIF
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Fax coding methods	JBIG, JPEG, MH, MMR (Fax coding method), MR
Fax speed dialing (max numbers)	199
Paper input type	Paper tray
Total input capacity	550 sheets
Total output capacity	250 sheets
Maximum number of input trays	3
Auto document feeder (ADF) input capacity	60 sheets
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper, Transparencies
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Display	LCD
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	1
Security algorithms	802.1x RADIUS, HTTPS
Supported network protocols (IPv4)	FTP, HTTP, HTTPs, LPR, SNMPv1, SNMPv2, SNMPv3, TCP/IP, UDP
Internal memory	512 MB
Card reader integrated	-
Internal storage capacity	80 GB
Sound pressure level (printing)	59 dB
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	15 W
Power consumption (PowerSave)	55 W
Power consumption (average operating)	600 W
Mac operating systems supported	Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Professional, Windows XP Professional x64
Storage temperature (T-T)	10 - 32 °C
Operating temperature (T-T)	16 - 30 °C
Storage relative humidity (H-H)	20 - 80 %
Operating relative humidity (H-H)	30 - 70 %
Sustainability certificates	ENERGY STAR
Certification	CE, FCC, RoHS
