Xerox Phaser 3635MFP User Manual

3-16
Phaser 3635MFP
IQ15, IQ16
Draft 4
Image Quality

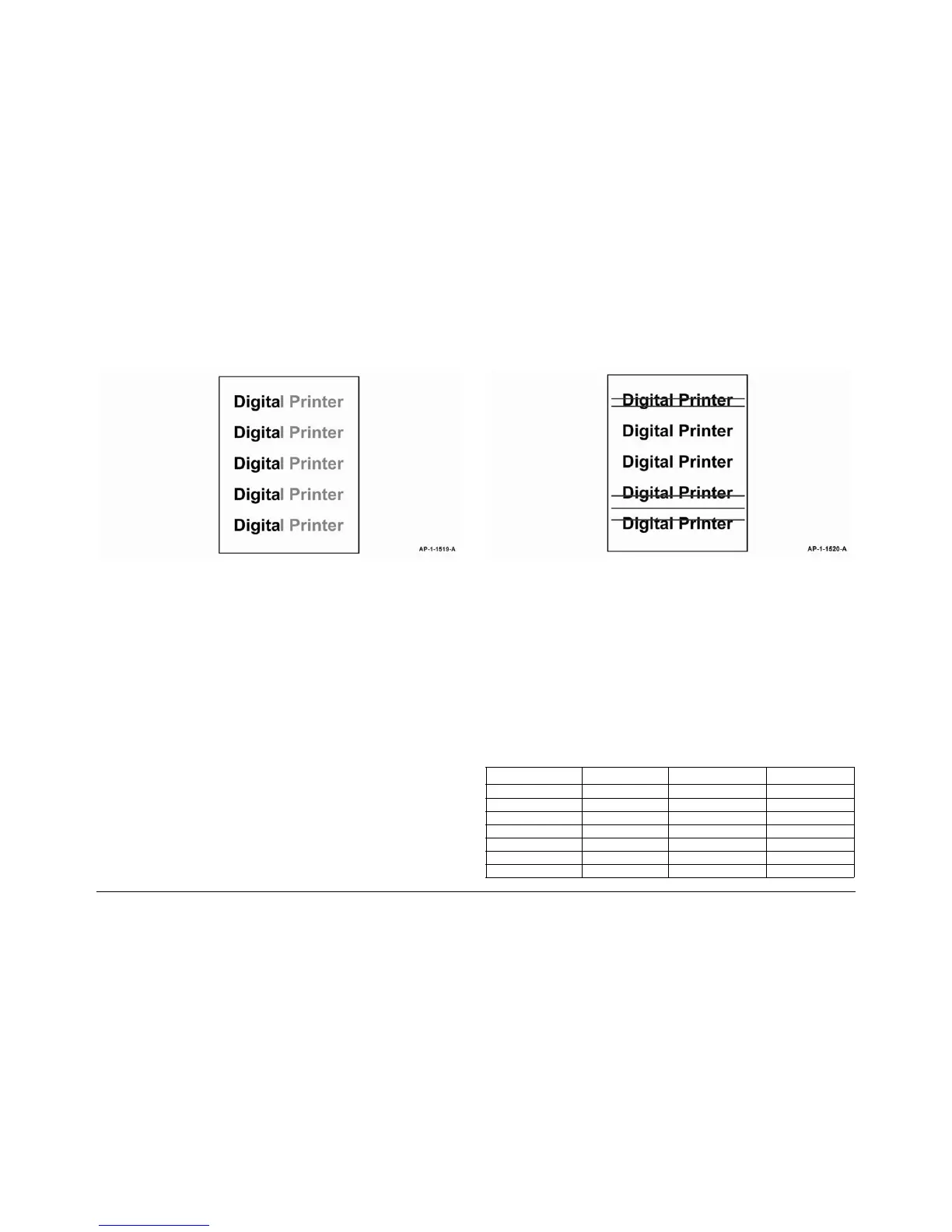

IQ15 Different Image Density (Left and Right) RAP
Use this RAP when the printed sheets have different areas of image density across the pro-
cess direction. An example is shown in Figure 1.
Figure 1 Image density
Procedure
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
Perform the following:
1. The transfer roll pressure may be unbalanced. Check the spring pressure at each end, PL
9.10. Install new components as necessary, PL 9.10.
2. Shake the print cartridge to evenly distribute the toner. If necessary, install a new print
cartridge, PL 9.10 Item 1.
3. If necessary, install a new print cartridge, PL 9.10 Item 1.
4. Perform the Shading Test procedure, GP 15. If the shading test fails:
a. Install new components as necessary:
• CCD module, PL 14.10 Item 8.
• CCD module cable, PL 14.10 Item 23.
• Scanner assembly, PL 14.10 Item 26.
b. Perform OF7 Main PWB Check RAP.
IQ16 Horizontal Bands RAP
Use this RAP when the image has bands appearing across the process direction. An example
is shown in Figure 1.
Figure 1 Horizontal bands
Procedure
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
Perform the following:
1. Refer to Wiring Diagram 2. Check the spring contacts between the HVPS PL 1.10 Item 3
and the print cartridge PL 9.10 Item 1. The spring contacts supply the voltages to the print
cartridge. If necessary, clean the spring contacts.
2. If necessary, install a new print cartridge, PL 9.10 Item 1.
3. Measure the distance between the image and the defect. Refer to Table 1 to determine
the possible cause of the defect.
Table 1 Defect distance
Defect distance Roll Component Parts List Ref.
95mm (3.7 inches) Xerographic drum Print cartridge PL 9.10 Item 1
38mm (1.5 inches) Charge roll Print cartridge PL 9.10 Item 1
45mm (1.8 inches) Supply roll Print cartridge PL 9.10 Item 1
47mm (1.9 inches) Transfer roll Transfer roll PL 9.10 Item 2
89mm (3.5 inches) Heat roll Fuser assembly PL 10.15 Item 1
51mm (2 inches) Pressure roll 1 Fuser assembly PL 10.15 Item 2
64mm (2.5 inches) Pressure roll 2 Fuser assembly PL 10.15 Item 3

Xerox Phaser 3635MFP Specifications

General

Network ready	Yes
Dimensions (WxDxH)	472 x 478 x 54 mm
Networking features	Fast Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	Scan
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	33 ppm
Digital sender	No
Maximum duty cycle	75000 pages per month
Page description languages	PCL 5e, PCL 6, PostScript 3
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	99 copies
Scan to	E-mail, Fax, FTP, USB
Maximum scan area	220 x 300 mm
Image formats supported	JPG, TIF
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Fax coding methods	JBIG, JPEG, MH, MMR (Fax coding method), MR
Fax speed dialing (max numbers)	199
Paper input type	Paper tray
Total input capacity	550 sheets
Total output capacity	250 sheets
Maximum number of input trays	3
Auto document feeder (ADF) input capacity	60 sheets
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper, Transparencies
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Display	LCD
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	1
Security algorithms	802.1x RADIUS, HTTPS
Supported network protocols (IPv4)	FTP, HTTP, HTTPs, LPR, SNMPv1, SNMPv2, SNMPv3, TCP/IP, UDP
Internal memory	512 MB
Card reader integrated	-
Internal storage capacity	80 GB
Sound pressure level (printing)	59 dB
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	15 W
Power consumption (PowerSave)	55 W
Power consumption (average operating)	600 W
Mac operating systems supported	Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Professional, Windows XP Professional x64
Storage temperature (T-T)	10 - 32 °C
Operating temperature (T-T)	16 - 30 °C
Storage relative humidity (H-H)	20 - 80 %
Operating relative humidity (H-H)	30 - 70 %
Sustainability certificates	ENERGY STAR
Certification	CE, FCC, RoHS
