Xerox Phaser 3635MFP - PL 5.25 DADF (4 of 7)

5-11
Phaser 3635MFP
PL 5.25
Parts List
Draft 4

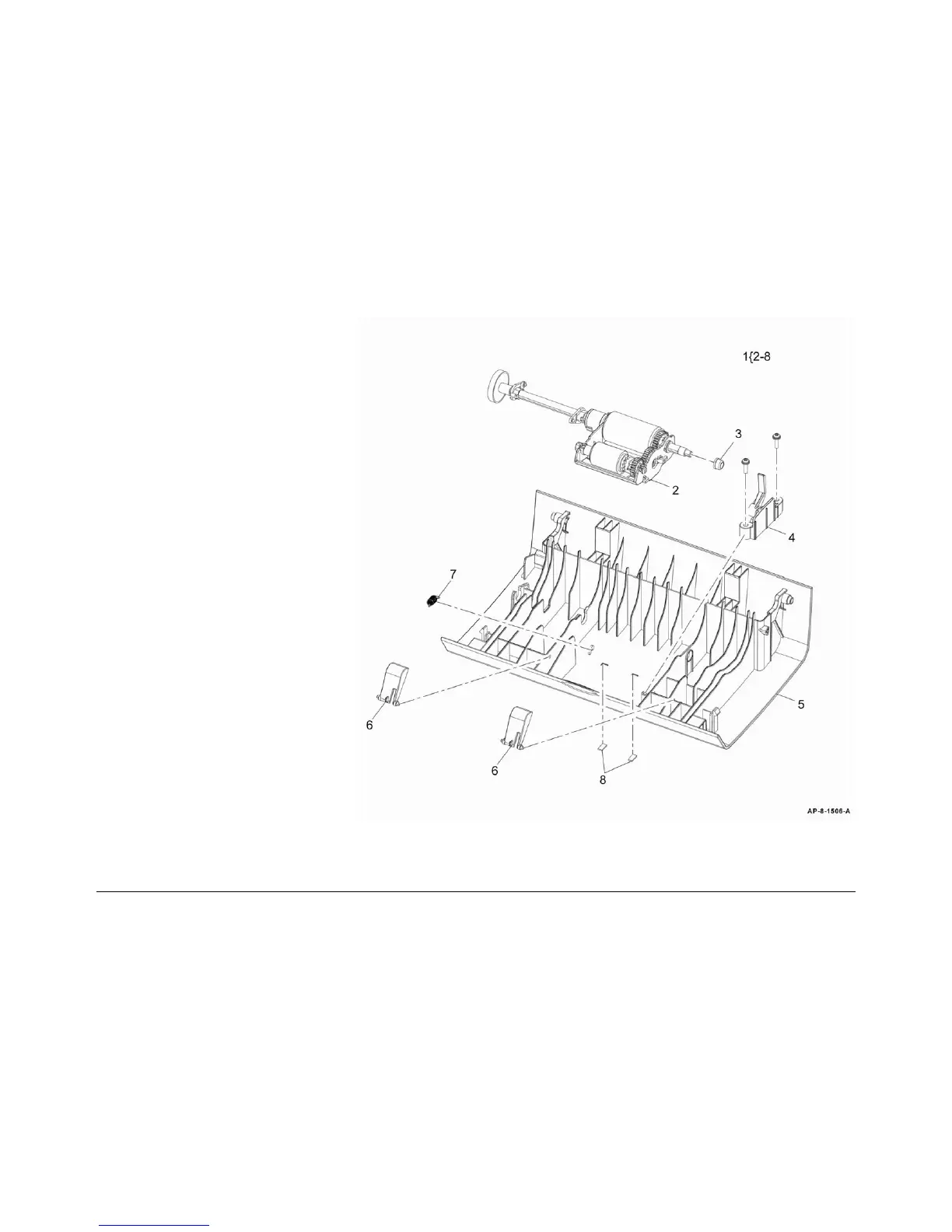

PL 5.25 DADF (4 of 7)
Item Part Description
1 – DADF door assembly (Complete)
(P/O PL 5.10 Item 1)
2 130N01533 Pickup roll assembly (REP 5.7)
3 – Bush (P/O PL 5.10 Item 1)
4 – Document gate (P/O PL 5.10 Item
1)
5 – DADF door (P/O PL 5.10 Item 1)
6 – Guide fingers (P/O PL 5.10 Item 1)
7 – Pickup spring (P/O PL 5.10 Item 1)
8 – Pickup damper (P/O PL 5.10 Item
1)
