4-16
Phaser 3635MFP
REP 5.4
Draft 4
Repairs and Adjustments

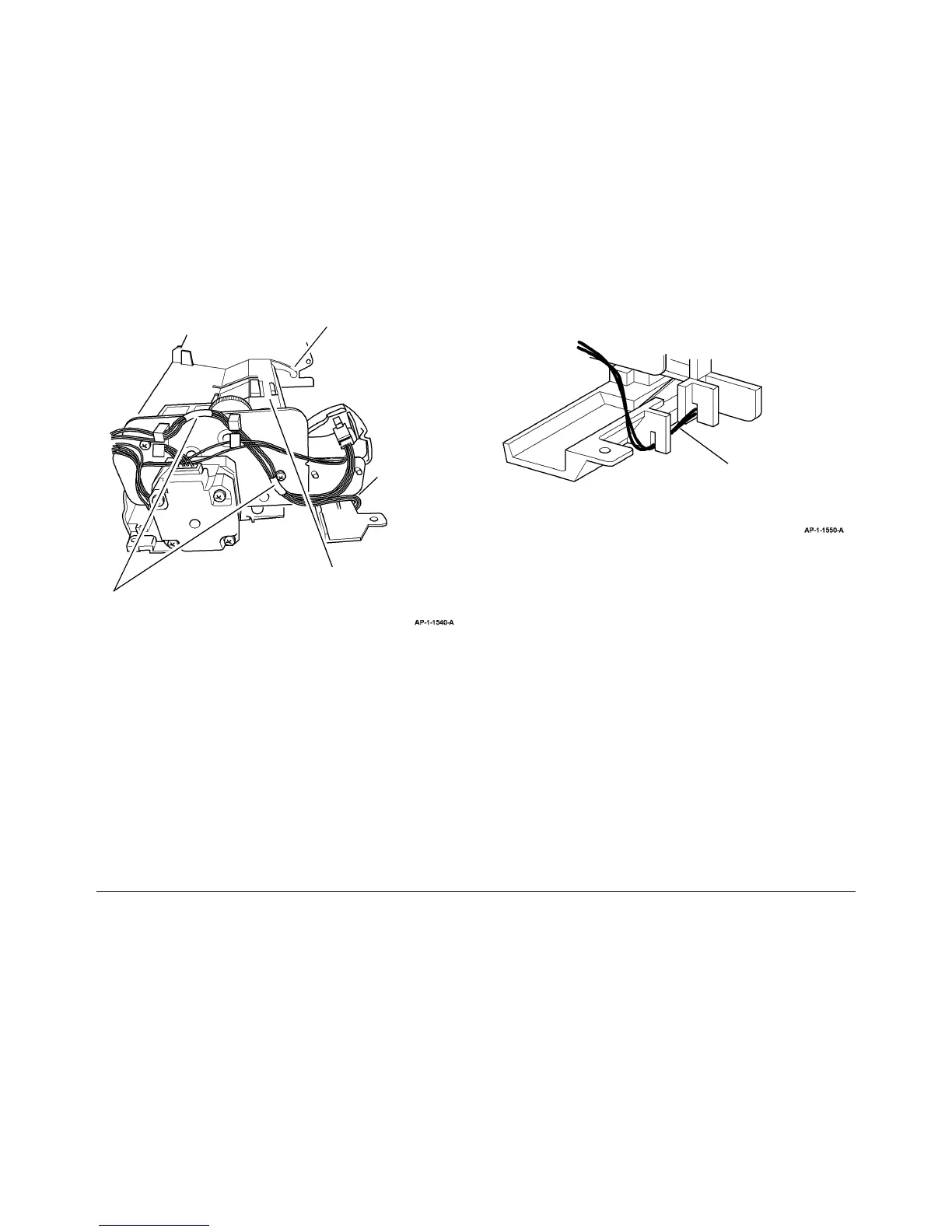

Figure 2 Feed assembly removal
Replacement
WARNING
Ensure all ground leads are connected.
1. Replacement is the reverse of the removal procedure. Make sure the document detect
sensor harness is routed correctly before reinstalling the feed assembly, refer to Figure 2
and Figure 3.
Figure 3 Harness routing
2
Separate the harnesses.
3
Remove the feed assembly.
1
Separate the feed assembly
from the transport assembly by
flexing the hinges.
Document detect
sensor harness
Document detect
sensor harness
To Next Page
