Xerox Phaser 3635MFP User Manual

4-51
Phaser 3635MFP
ADJ 8.2
Repairs and Adjustments
Draft 4
5. Measure the distance between the lead edge of the paper and the ADG line on the printed
test pattern, Figure 1.

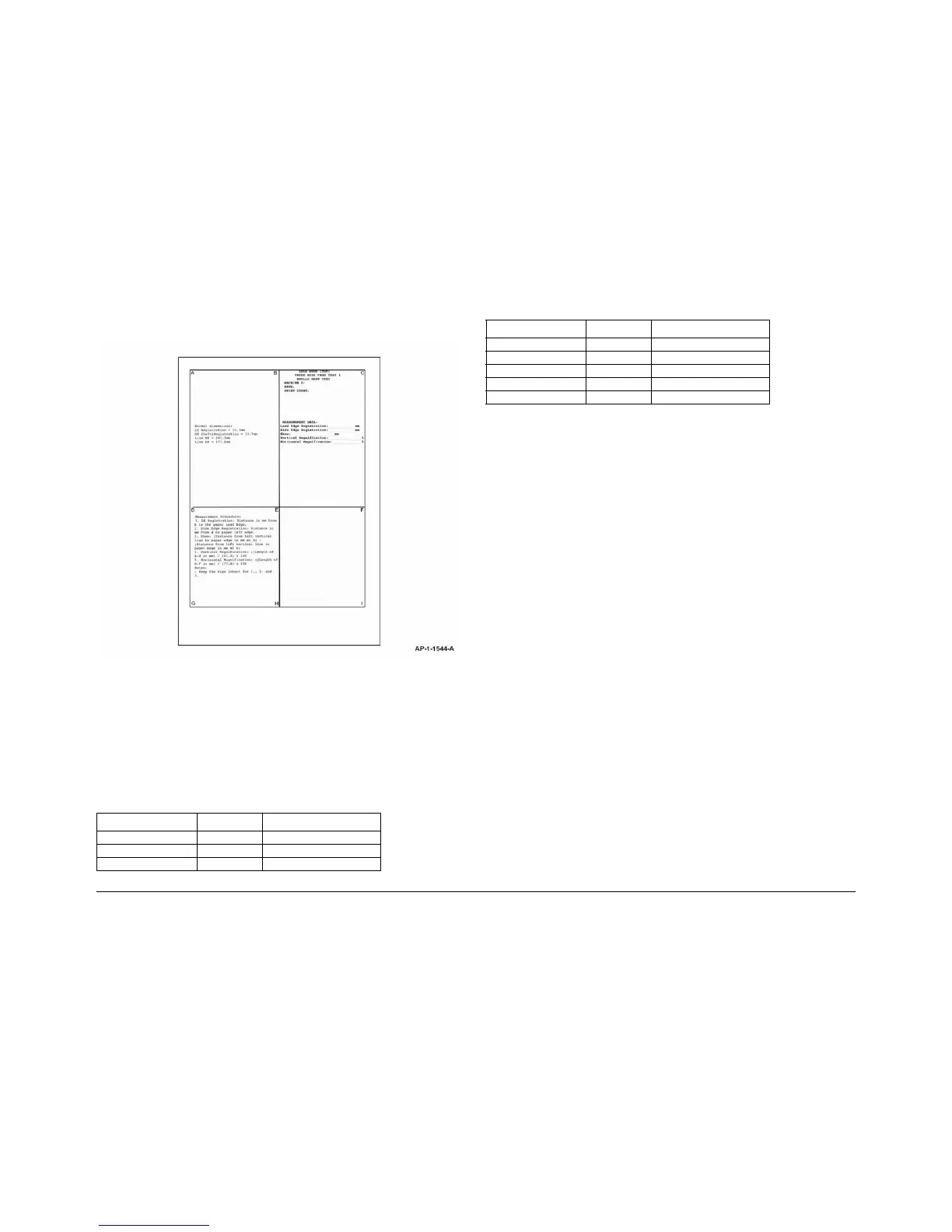

Figure 1 Test pattern 7
6. If the distance measured is not 12.7mm (0.5 inch) +/-3mm (1/8 inch), perform the Adjust-
ment.
Adjustment
1. Select Exit (on the dC606 Internal Print Test Patterns screen).
2. Select Diagnostic Routines.
3. Select Copier Routines.
4. Select 131 NVM Read Write.
5. Refer to Table 1. Select the relevant NVM setting.
6. Select Read/Write. Enter a new value as follows:
• To increase the side edge registration (move the ADG line away from the paper
edge), enter a value larger than the current value.
• To decrease the side edge registration (move the ADG line toward the paper edge),
enter a value smaller than the current value.
NOTE: A change of 12 will change the registration by approximately 1mm (0.04
inch)
7. Save the adjustment.
a. Select Save.
b. Select OK.
8. Prepare to check the adjustment.
a. Select Close.
b. Select Diagnostic Routines.
c. Select Other Routines.
9. Perform again the Check.
Table 1 NVM location
Mode Tray Location
Simplex 1 07-110
Simplex 2 07-210
Simplex Bypass 07-510
Duplex Side 1 1 07-150
Duplex Side 1 2 07-250
Duplex Side 1 Bypass 07-550
Duplex Side 2 1 07-130
Duplex Side 2 2 07-230
Table 1 NVM location
Mode Tray Location

Xerox Phaser 3635MFP Specifications

General

Network ready	Yes
Dimensions (WxDxH)	472 x 478 x 54 mm
Networking features	Fast Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	Scan
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	33 ppm
Digital sender	No
Maximum duty cycle	75000 pages per month
Page description languages	PCL 5e, PCL 6, PostScript 3
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	99 copies
Scan to	E-mail, Fax, FTP, USB
Maximum scan area	220 x 300 mm
Image formats supported	JPG, TIF
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Fax coding methods	JBIG, JPEG, MH, MMR (Fax coding method), MR
Fax speed dialing (max numbers)	199
Paper input type	Paper tray
Total input capacity	550 sheets
Total output capacity	250 sheets
Maximum number of input trays	3
Auto document feeder (ADF) input capacity	60 sheets
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper, Transparencies
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Display	LCD
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	1
Security algorithms	802.1x RADIUS, HTTPS
Supported network protocols (IPv4)	FTP, HTTP, HTTPs, LPR, SNMPv1, SNMPv2, SNMPv3, TCP/IP, UDP
Internal memory	512 MB
Card reader integrated	-
Internal storage capacity	80 GB
Sound pressure level (printing)	59 dB
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	15 W
Power consumption (PowerSave)	55 W
Power consumption (average operating)	600 W
Mac operating systems supported	Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Professional, Windows XP Professional x64
Storage temperature (T-T)	10 - 32 °C
Operating temperature (T-T)	16 - 30 °C
Storage relative humidity (H-H)	20 - 80 %
Operating relative humidity (H-H)	30 - 70 %
Sustainability certificates	ENERGY STAR
Certification	CE, FCC, RoHS
