Xerox Phaser 3635MFP User Manual

5-34
Phaser 3635MFP
PL 14.10
Draft 4
Parts List

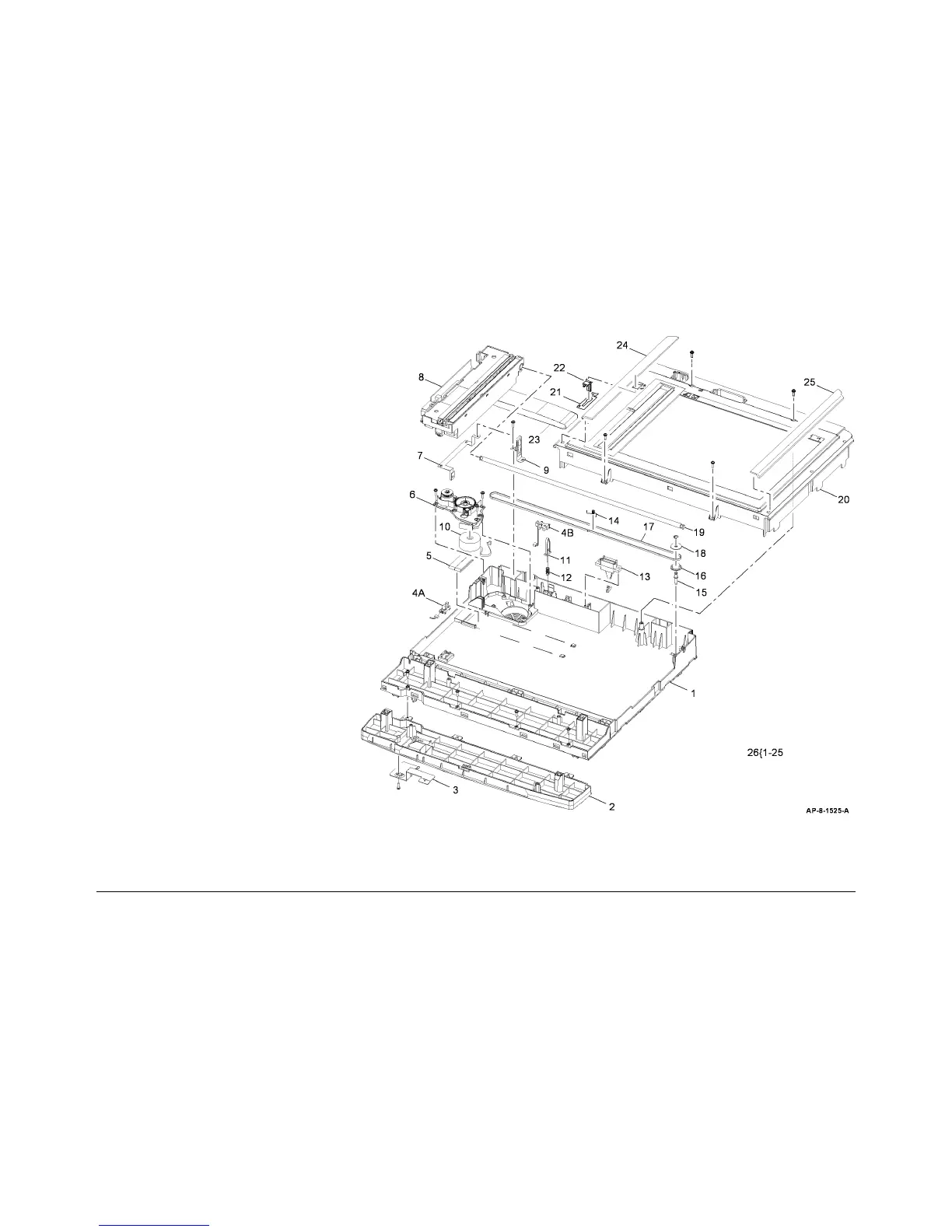

PL 14.10 Scanner Assembly
Item Part Description
1 – Scanner base (P/O PL 14.10 Item
26)
2 – UI base (P/O PL 14.10 Item 26)
3 – LCD support (P/O PL 14.10 Item
26)
4 130N01274 CCD home sensor (A), Platen
cover sensor (B) (REP 14.2)
5 – Ferrite (P/O PL 14.10 Item 26)
6 127N07564 Scan motor drive assembly
7 – Ground strip (P/O PL 14.10 Item
26)
8 133N23230 CCD module (REP 14.2)
9 – Ground strip (P/O PL 14.10 Item
26)
10 127N07561 Scan motor
11 – Platen cover sensor actuator (P/O
PL 14.10 Item 26)
12 – Platen cover sensor actuator spring
(P/O PL 14.10 Item 26)
13 152N11750 DADF connector
14 – Drive belt spring (P/O PL 14.10
Item 26)
15 – Pulley shaft (P/O PL 14.10 Item 26)
16 – Pulley (lower) (P/O PL 14.10 Item
26)
17 109N00542 CCD module belt
18 – Pulley (upper) (P/O PL 14.10 Item
26)
19 – CCD module guide rail (P/O PL
14.10 Item 26)
20 002N02719 Scanner cover (REP 14.2)
21 – Scanner lock bracket (P/O PL
14.10 Item 26)
22 – Scanner lock (P/O PL 14.10 Item
26)
23 117N01788 CCD module cable
24 – Left trim (P/O PL 14.10 Item 26)
25 – Right trim (P/O PL 14.10 Item 26)
26 109N00688 Scanner assembly (Complete)
(REP 14.1)

Xerox Phaser 3635MFP Specifications

General

Network ready	Yes
Dimensions (WxDxH)	472 x 478 x 54 mm
Networking features	Fast Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	Scan
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	33 ppm
Digital sender	No
Maximum duty cycle	75000 pages per month
Page description languages	PCL 5e, PCL 6, PostScript 3
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	99 copies
Scan to	E-mail, Fax, FTP, USB
Maximum scan area	220 x 300 mm
Image formats supported	JPG, TIF
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Fax coding methods	JBIG, JPEG, MH, MMR (Fax coding method), MR
Fax speed dialing (max numbers)	199
Paper input type	Paper tray
Total input capacity	550 sheets
Total output capacity	250 sheets
Maximum number of input trays	3
Auto document feeder (ADF) input capacity	60 sheets
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper, Transparencies
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Display	LCD
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	1
Security algorithms	802.1x RADIUS, HTTPS
Supported network protocols (IPv4)	FTP, HTTP, HTTPs, LPR, SNMPv1, SNMPv2, SNMPv3, TCP/IP, UDP
Internal memory	512 MB
Card reader integrated	-
Internal storage capacity	80 GB
Sound pressure level (printing)	59 dB
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	15 W
Power consumption (PowerSave)	55 W
Power consumption (average operating)	600 W
Mac operating systems supported	Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Professional, Windows XP Professional x64
Storage temperature (T-T)	10 - 32 °C
Operating temperature (T-T)	16 - 30 °C
Storage relative humidity (H-H)	20 - 80 %
Operating relative humidity (H-H)	30 - 70 %
Sustainability certificates	ENERGY STAR
Certification	CE, FCC, RoHS
