Maintenance
WorkCentre 6015 Color Multifunction Printer 165
User Guide

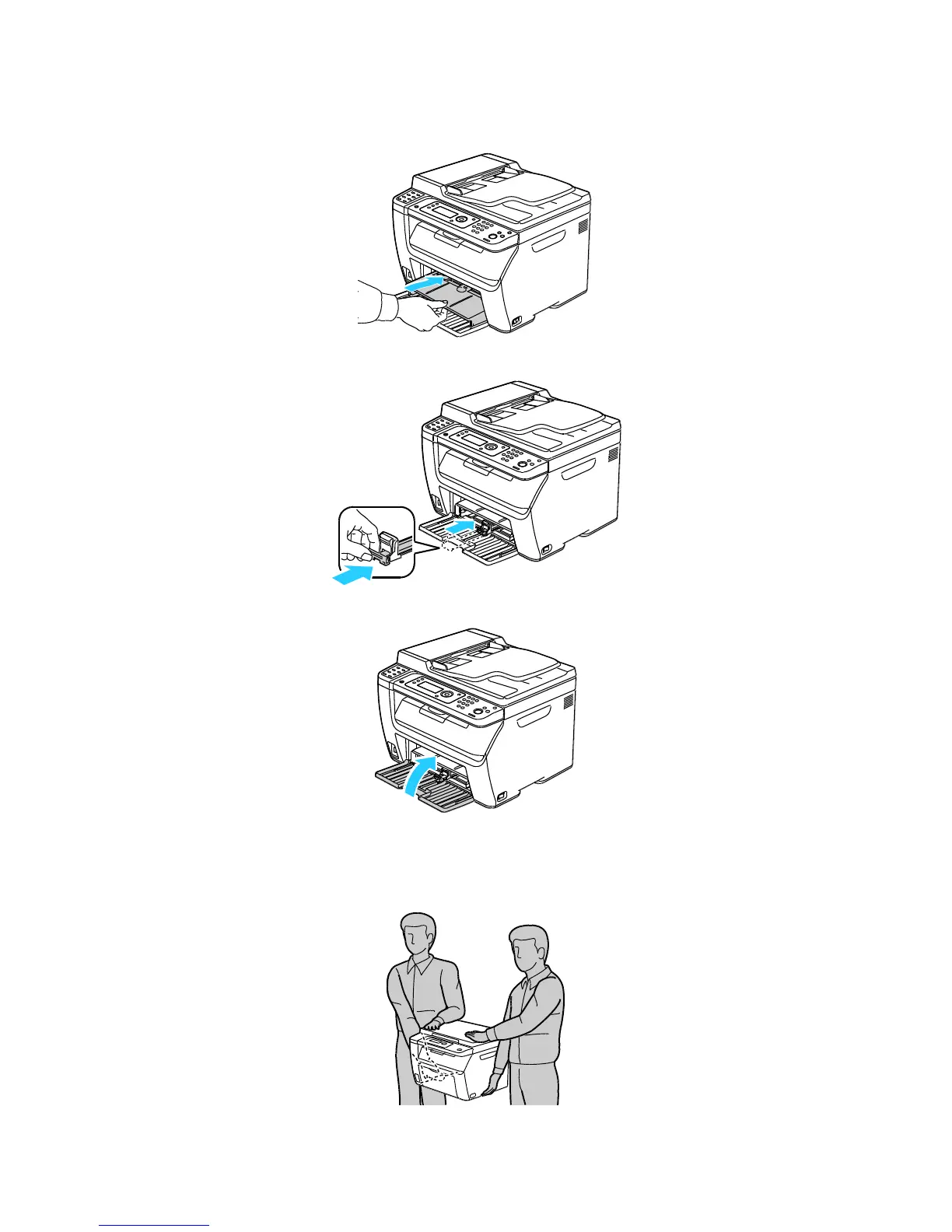

4. Lift the bypass tray and push it into the printer.
5. Push in the length guides and slide bar until they stop.
6. Fold up the main tray to cover the paper feed.
7. Lift and carry the printer as shown in the illustration.
Note: To find the weight for your printer configuration, see Physical Specifications on page 192.
