Xerox WorkCentre 7970 - Clearing Jams at Door B

Troubleshooting
Clearing Jams at Door B

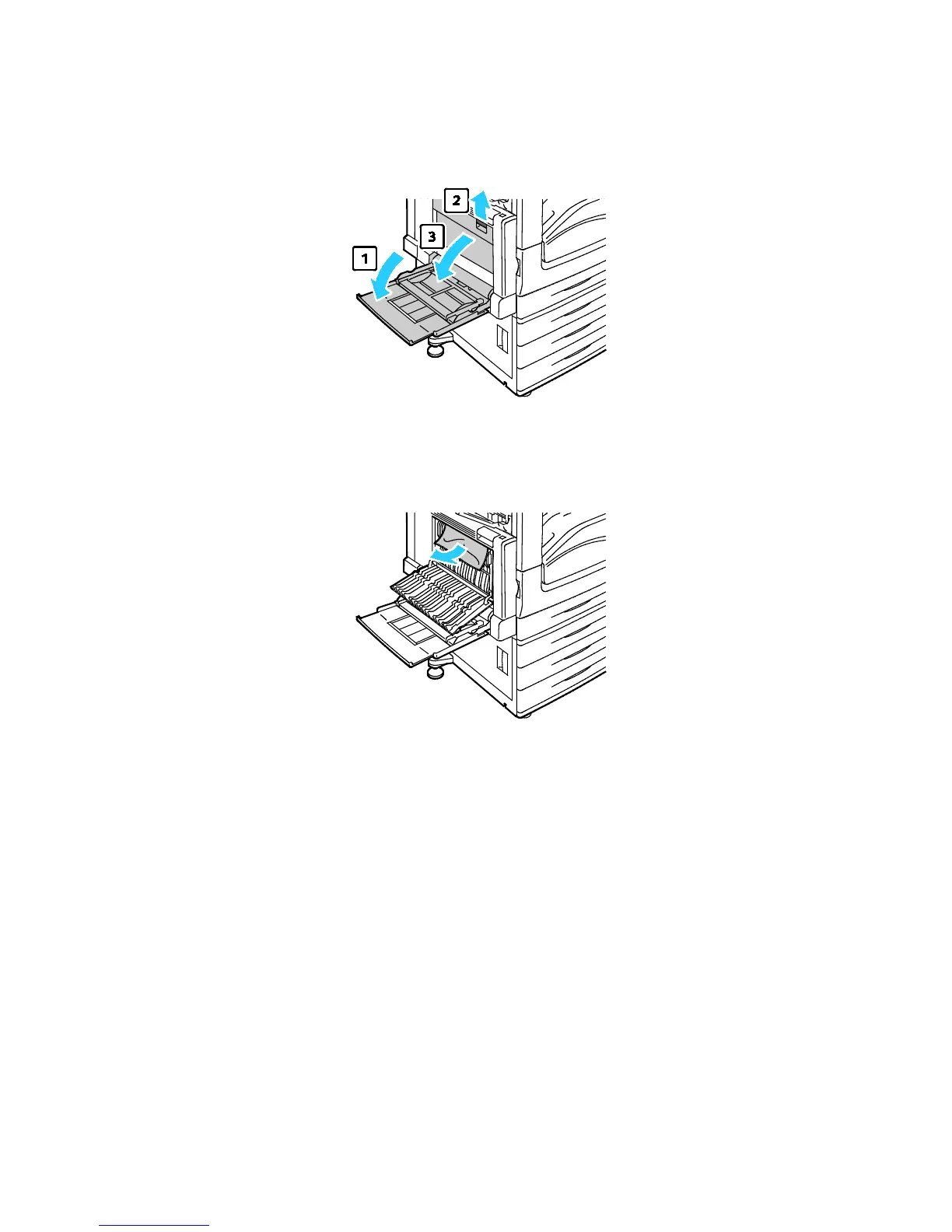

1. Open tray 5 as shown (1).
2. While lifting the release lever (2), open door B as shown (3).
3. Remove the jammed paper as shown.
Note: If the paper is torn, remove all torn pieces from the printer.
4. Close door B, then close tray 5.
Xerox
®
WorkCentre
®
7970 Multifunction Printer 227
User Guide
