Xerox WorkCentre 7970 User Manual

Installation and Setup
Connecting to a Telephone Line
1. Ensure that the printer is turned off.
2. Connect a standard RJ11 cable, No. 26 American Wire Gauge (AWG) or larger, to the Line port on the
back of the printer.
3. Connect the other end of the RJ11 cable to an operating telephone line.
4. Enable and configure the Fax functions.
For details, see Selecting Fax Options on page 154, Selecting Server Fax Options on page 163, or
Selecting Internet Fax Options on page 168.
Turning the Printer On and Off
This printer has two power switches. The main power switch located behind the front door controls the
main power to the printer. The secondary power switch on the top of the printer controls power to the
printer electronic components, and initiates a software-controlled shutdown when turned off. Using the
secondary power switch to turn on and off the printer is the preferred method. To operate the printer,
turn on both switches. First turn on the main power switch, then turn on the secondary power switch.
CAUTION: Do not plug or unplug the power cord while the power switch is in the On position.

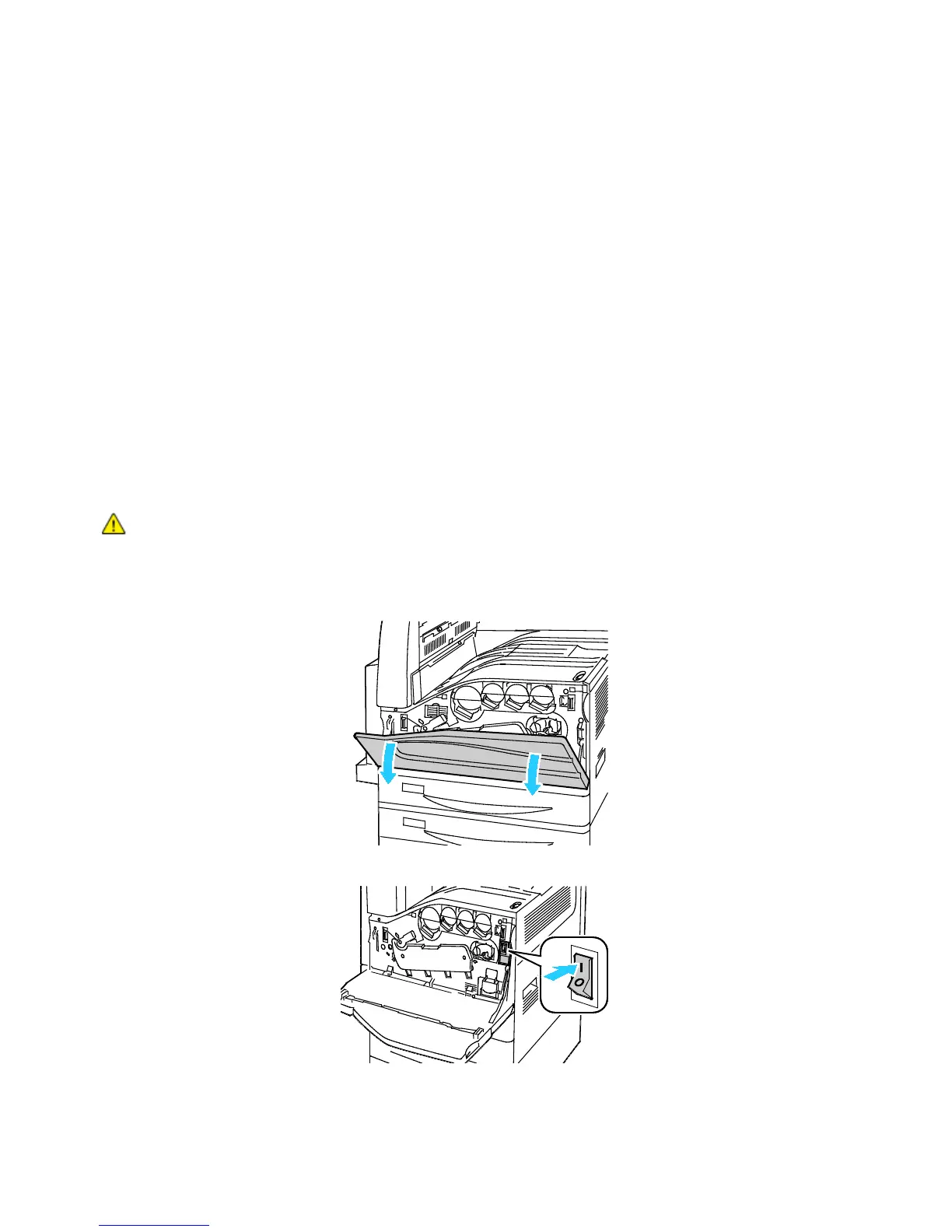

To turn on the printer:
1. Open the front door.
2. Turn on the main power switch.
Xerox
®
WorkCentre
®
7970 Multifunction Printer 39
User Guide

Xerox WorkCentre 7970 Specifications

General

Print Resolution	1200 x 2400 dpi
Maximum Paper Capacity	5, 140 sheets
Monthly Duty Cycle	Up to 300, 000 pages
Functions	Print, Copy, Scan, Fax
Duplex Printing	Yes
Hard Disk	250 GB
Print Technology	Laser
Copy Resolution	600 x 600 dpi
Scan Resolution	Up to 600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Print Speed	Up to 70 ppm
Copy Speed	Up to 70 cpm
Connectivity	Ethernet, USB
Processor Speed	1.2 GHz
Memory	2 GB
Scan Type	Color, Black/White
Operating System Compatibility	Windows, Mac, Linux
Weight	217 kg
