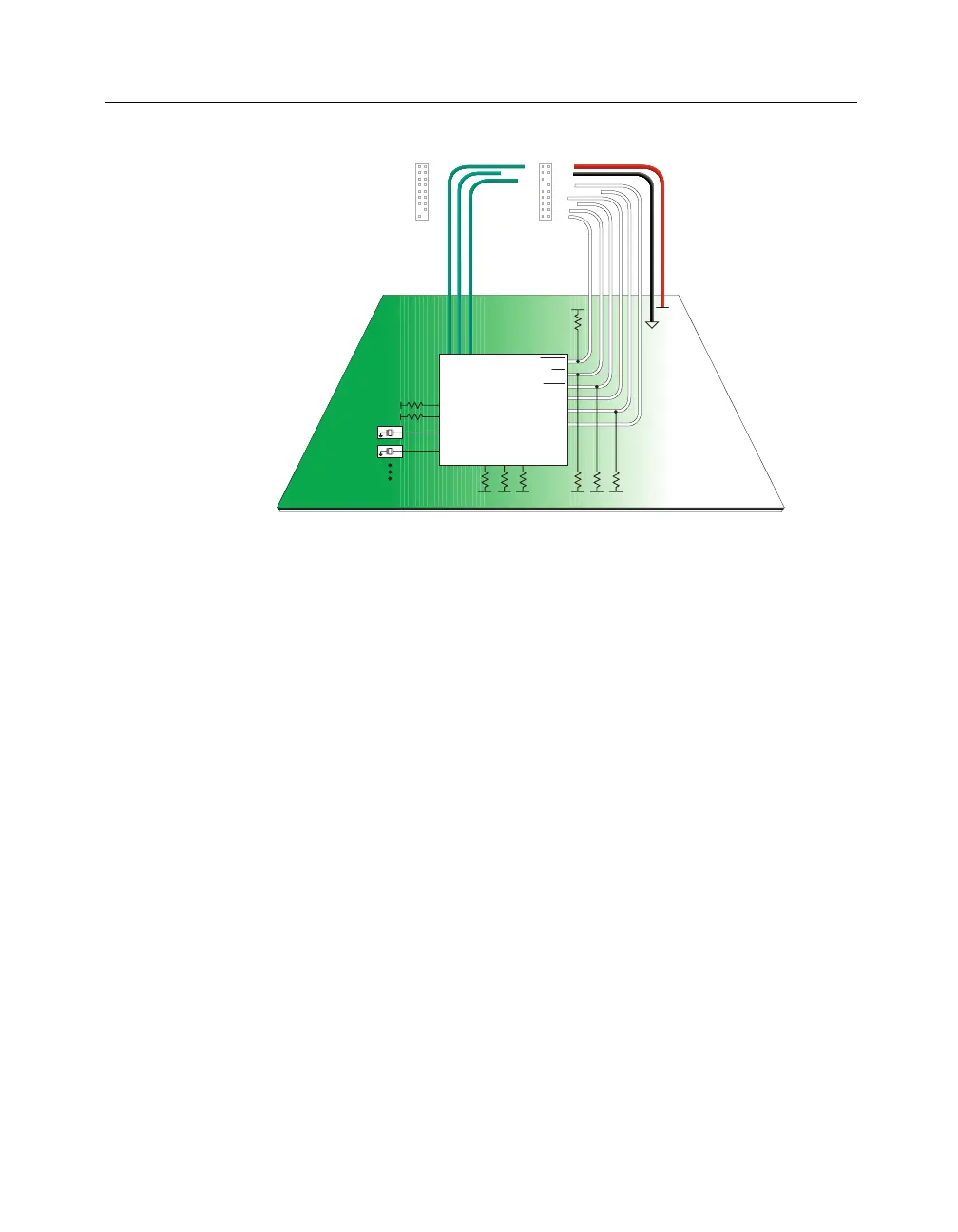

Figure 2-8 Slave Serial Mode (Spartan, XC5200, XC4000)
SelectMAP Mode (Virtex)
ThefollowingfigureshowsindetailtheSelectMAPModeconnec-
tions for downloading/verification of configuration data with Virtex
devices.
D0
D1
D2
D3
D4
D5
D6
D7
RDY/BUSY
CS2
CS1
CS0 (CS)
WS
GND
CCLK
DIN
RT
TDI
TCK
TMS
RST
TRIG
RD (TDO)
PWR
VCC
RS (RDWR)
CLK2-IN
CLK2-OUT
CLK1-IN
CLK1-OUT
DONE (D / P)
PROG
INIT
4
2
3
1
NOTE: Pull-up resistors are 4.7k ohm.
VCC
Circuit Board
XILINX device
MultiLINX Connectors
VCC
System Clock (x)
System Clock (y)
(optional)
(optional- only used for probing)
VCC
VCC VCC VCC
M0 M1 M2
INIT
CCLK
RESET
DIN
DONE
User I/O: TRIGGER
GCK (x)
GCK (y)
User I/O: RD
User I/O: RT
User I/O:
VCC VCC VCC
PROG
X8937
TCK
TMS
