Cable Hardware
Hardware User Guide 1-17

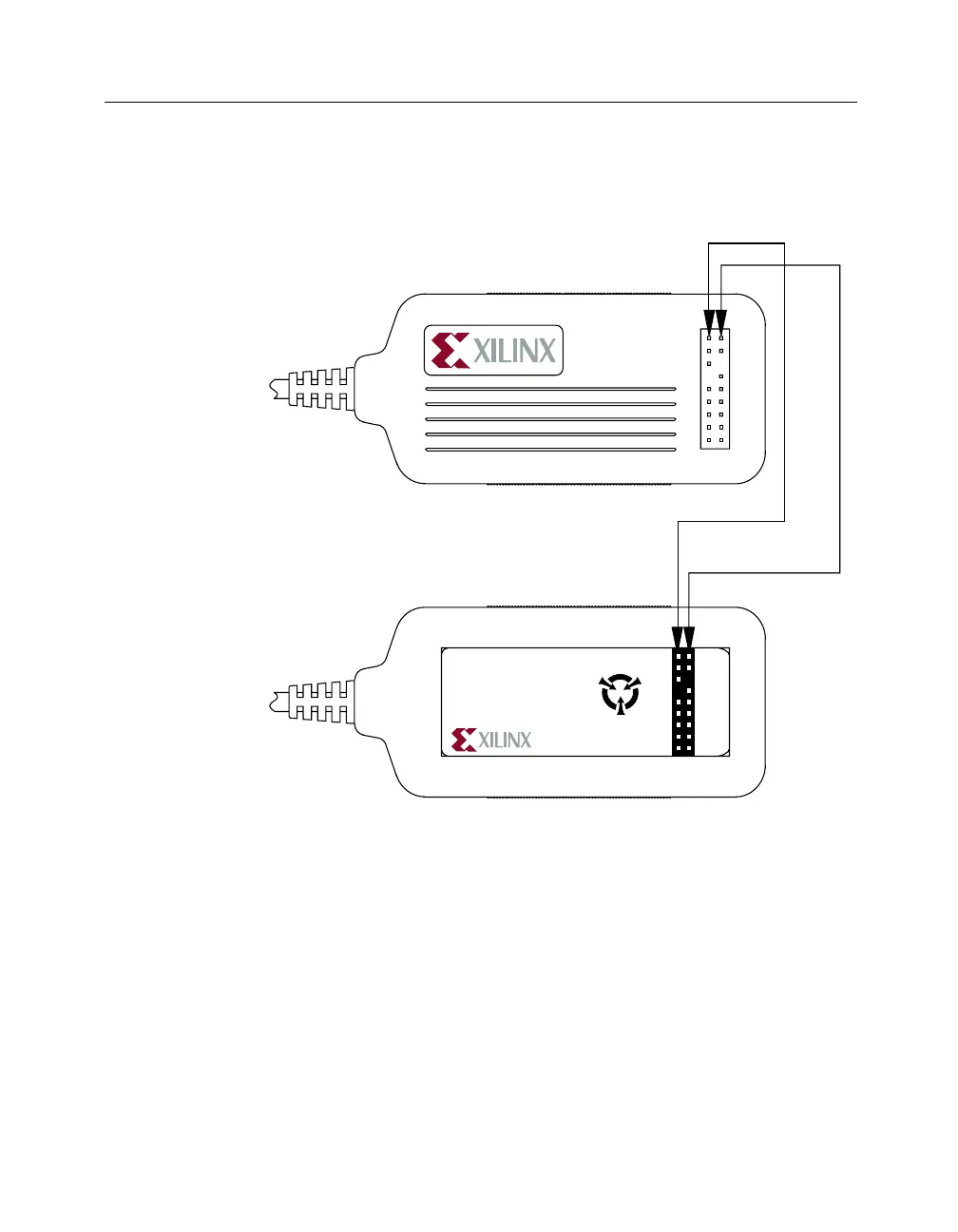

Figure 1-10 XChecker Cable
Note The plastic cover of the XChecker Cable is beige, while the
cover for the Parallel Cable III is grey. The flying lead wires are keyed
to fit into the appropriate cable header. Use Header 1 for FPGAs and
Header 2 for CPLDs.
XChecker Cable
Top View
Bottom View
Header 2 Header 1
Model : DLC4
CAUTION
SENSITIVE
ELECTRONIC
DEVICE
Power : 5V 100mA Typ.
Serial: DL - 1 2 3 4 5
RT
RD
TRIG
TDI
TCK
TMS
CLKI
CLKO
VCC
Made in U.S.A
GND
CCLK
D/P
DIN
PROG
INIT
RST
X7249
