Chapter 4: Physical Interface
R

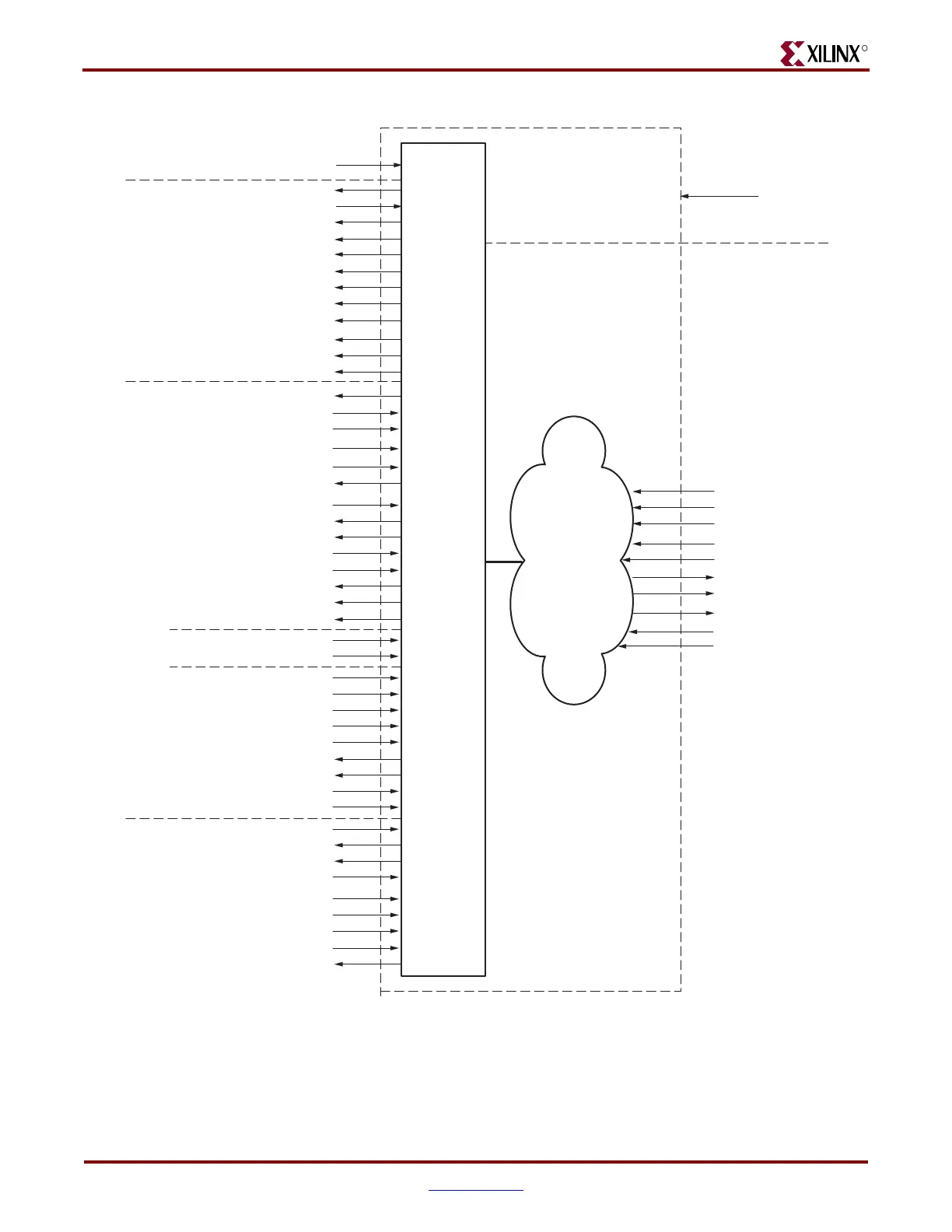

Figure 4-1: Ethernet MAC Configured in MII Mode
MII
Ethernet
MAC
MII_RX_CLK_#
MII_RXD[3:0]_#
MII_RX_DV_#
MII_RX_ER_#
MII_TX_CLK_#
MII_TXD[3:0]_#
MII_TX_EN_#
MII_TX_ER_#
MII_COL_#
MII_CRS_#
DCREMACABUS[8:9]
DCREMACCLK
DCREMACDBUS[0:31]
DCREMACREAD
DCREMACWRITE
DCRHOSTDONEIR
EMAC#CLIENTRXD[15:0]
EMAC#CLIENTRXDVLD
EMAC#CLIENTRXDVLDMSW
EMAC#CLIENTRXGOODFRAME
EMAC#CLIENTRXBADFRAME
EMAC#CLIENTRXFRAMEDROP
CLIENTEMAC#TXFIRSTBYTE
EMAC#CLIENTTXCOLLISION
HOSTADDR[9:0]
HOSTCLK
HOSTMIIMSEL
HOSTOPCODE[1:0]
HOSTREQ
HOSTMIIMRDY
HOSTRDDATA[31:0]
HOSTWRDATA[31:0]
DCREMACENABLE
EMACDCRACK
EMACDCRDBUS[0:31]
EMAC#CLIENTRXSTATS[6:0]
EMAC#CLIENTRXSTATSBYTEVLD
EMAC#CLIENTRXSTATSVLD
CLIENTEMAC#TXD[15:0]
CLIENTEMAC#TXDVLD
CLIENTEMAC#TXDVLDMSW
EMAC#CLIENTTXACK
EMAC#CLIENTTXRETRANSMIT
EMAC#CLIENTTXSTATS
EMAC#CLIENTTXSTATSBYTEVLD
EMA
C#CLIENTTXSTAT SVLD
HOSTEMAC1SEL
CLIENTEMAC#PAUSEREQ
CLIENTEMAC#PAUSEVAL[15:0]
CLIENTEMAC#TXUNDERRUN
CLIENTEMAC#TXIFGDELAY[7:0]
EMAC#CLIENTRXCLIENTCLKOUT
CLIENTEMAC#RXCLIENTCLKIN
EMAC#CLIENTTXCLIENTCLKOUT
CLIENTEMAC#TXCLIENTCLKIN
EMAC#CLIENTRXDVREG6
RESET
DCR HOST
Flow
Control
TX Client RX Client
Physical Interface
WRAPPER
VHDL/Verilog
CLIENTEMAC#DCMLOCKED
UG074_3_50_022007
