Xylem hydrovar User Manual

276
305
185
265
HVNG-IOM_HVLB_DIMENSIONS_A_SC

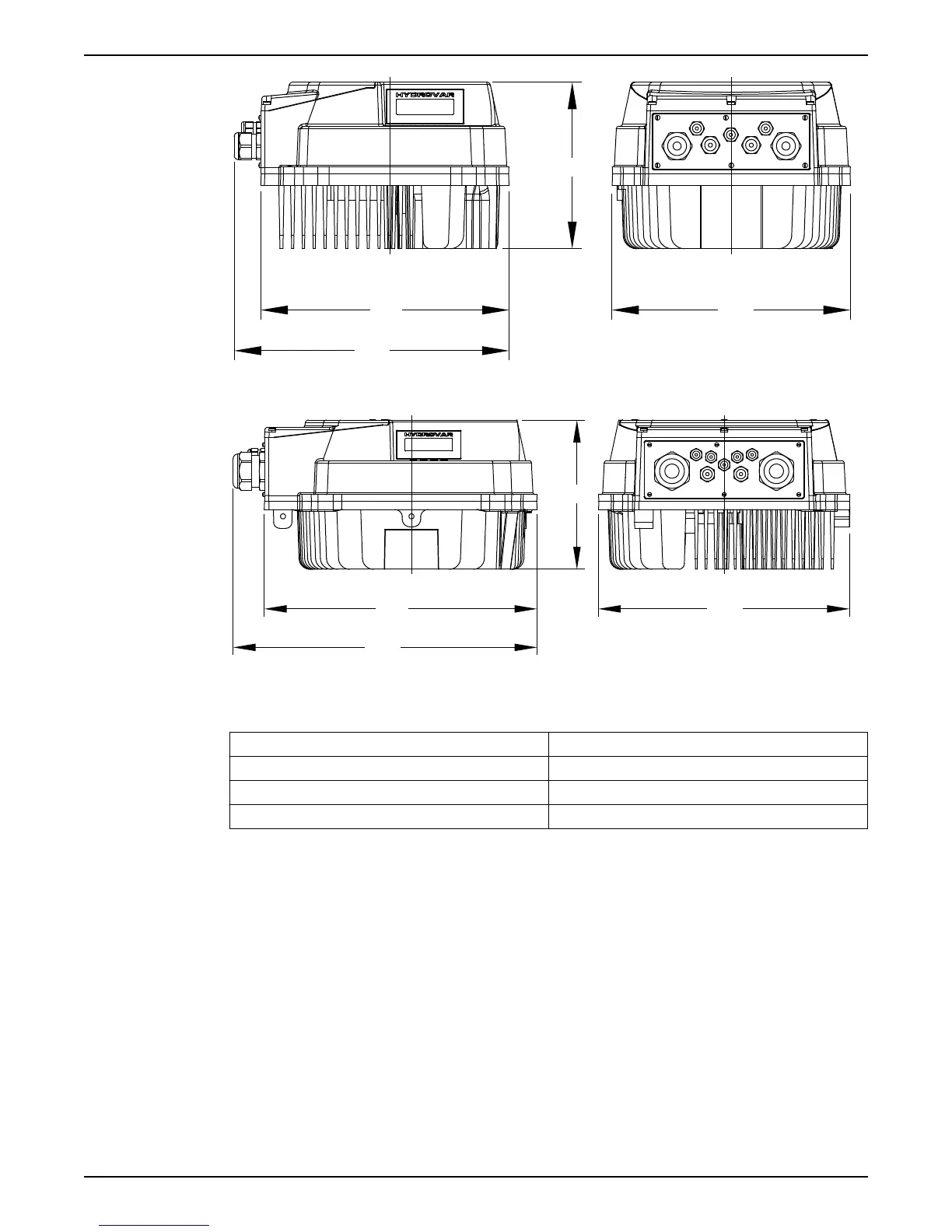

Figure 5: HVL2.030, HVL2.040, HVL3.030 ÷ HVL3.055, HVL4.055 ÷ HVL4.110
366
407
200
337
HVNG-IOM_HVLC_DIMENSIONS_A_SC
Figure 6: HVL3.075 ÷ HVL3.110, HVL4.150 ÷ HVL4.220
Weight
Models Maximum Weight
HVL 2.015 ÷ 2.022 | 3.015 ÷ 3.022 | 4.015 ÷ 4.040 5,6 Kg (12,3 lbs)
HVL 2.030 ÷ 2.040 | 3.030 ÷ 3.055 | 4.055 ÷ 4.110 10,5 Kg (23 lbs)
HVL 3.075 ÷ 3.110 | 4.150 ÷ 4.220 15,6 Kg (34,4 lbs)
3.8 Design and layout
Parts and descriptions
The unit can be fitted with the features the application requires.
3 Product Description
18 HVL 2.015-4.220 Installation, Operation, and Maintenance Manual

Xylem hydrovar Specifications

General

Frequency	50/60 Hz
Control type	Variable speed drive
Protection class	IP55
Communication protocols	Modbus
Relative Humidity	5% - 95% (non-condensing)
Altitude	Up to 1000 m without derating
Input voltage	200-690 V AC
Storage Temperature	-25°C to +70°C (-13°F to 158°F)
