Xylem hydrovar User Manual

U V W
L1/L L2 L3/N
RFI
SWITCH
HVNG-IOM_RFI-SWITCH_A_SC
SWITCH
RFI
6.5 AC mains and motor connection terminals

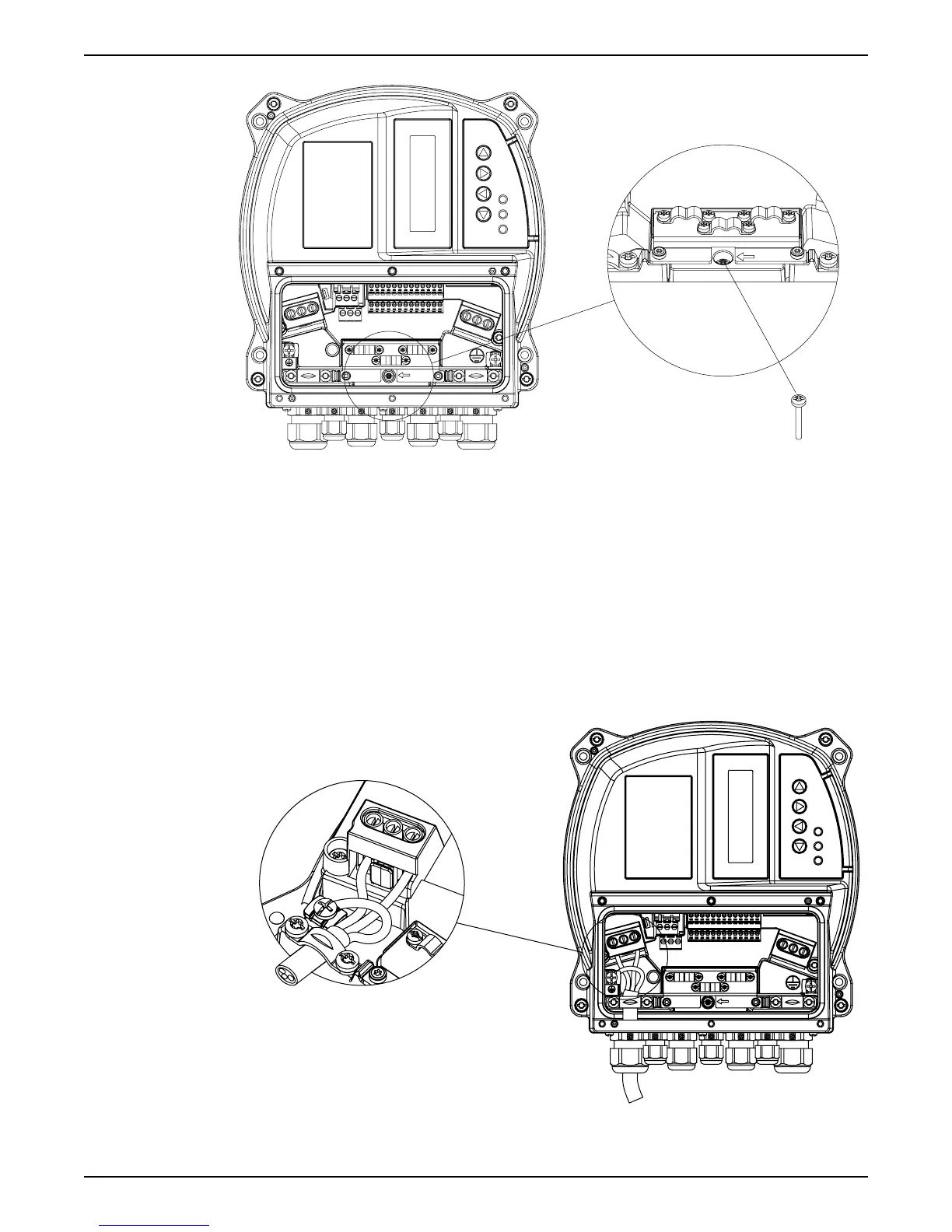

Unscrew the dedicated 6 screws and remove the plastic cover of Hydrovar, in order to
proceed wiring the power supply and the motor terminal, as described in the following
paragraphs.
6.5.1 AC Mains (power supply) connection
1. Size wiring based upon the input current of Hydrovar
Comply with local and national electrical codes for cable sizes.
2. Connect 1–phase AC input power wiring to terminals L and N: make sure phase and
neutral are properly aligned to provided terminals L and N.
HVNG-IOM_SUPPLY-CABLE-1F_A_SC
U V W
L1/L L2 L3/N
RFI
SWITCH
L1/L L2 L3/N
6 Electrical Installation
32 HVL 2.015-4.220 Installation, Operation, and Maintenance Manual

Xylem hydrovar Specifications

General

Frequency	50/60 Hz
Control type	Variable speed drive
Protection class	IP55
Communication protocols	Modbus
Relative Humidity	5% - 95% (non-condensing)
Altitude	Up to 1000 m without derating
Input voltage	200-690 V AC
Storage Temperature	-25°C to +70°C (-13°F to 158°F)
