Xylem hydrovar User Manual

HVNG-IOM_MOUNT_EXPLOD-1_B_SC
1
3
6
4
8
2
5
7
9

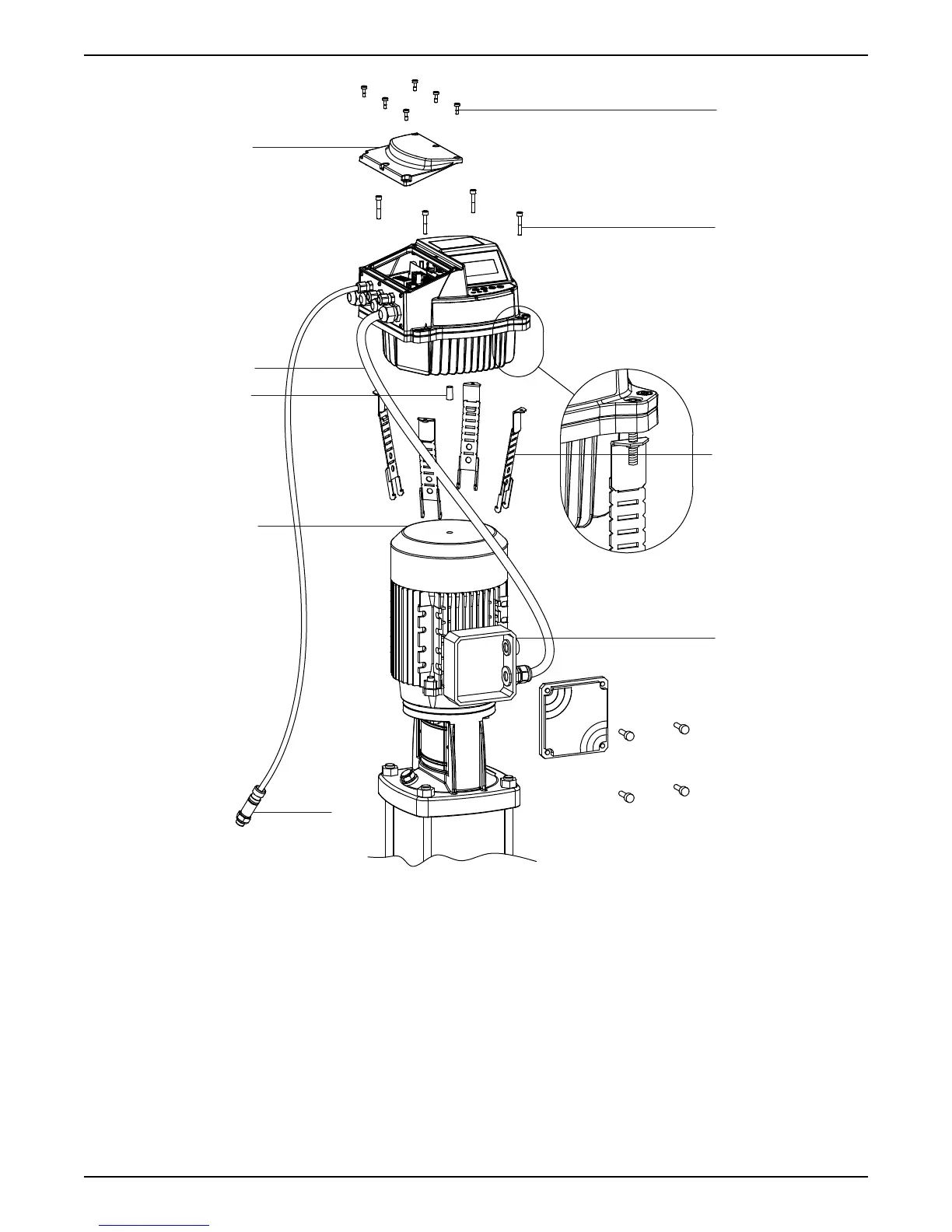

1. Actual value sensor
2. Motor conduit box
3. Motor fan cover
4. Motor cable
5. Mounting clamps
6. Centring pin
7. Screws for mounting clamps
8. Plastic cover
9. Screws for plastic cover
Refer to callouts in preceding image.
1. Fit the rubber centering pin [6] on the bottom of the HYDROVAR
®
.
5 Mechanical Installation
24 HVL 2.015-4.220 Installation, Operation, and Maintenance Manual

Xylem hydrovar Specifications

General

Frequency	50/60 Hz
Control type	Variable speed drive
Protection class	IP55
Communication protocols	Modbus
Relative Humidity	5% - 95% (non-condensing)
Altitude	Up to 1000 m without derating
Input voltage	200-690 V AC
Storage Temperature	-25°C to +70°C (-13°F to 158°F)
