XYZ Bed Mill Safety, Installation, Maintenance, Service & Parts List Manual
2.0 Installation
Read and understand this entire installation section before beginning the installation procedure.
2.1 Floor Plan, Layout & Space Requirements
2.1.1 SMX2500

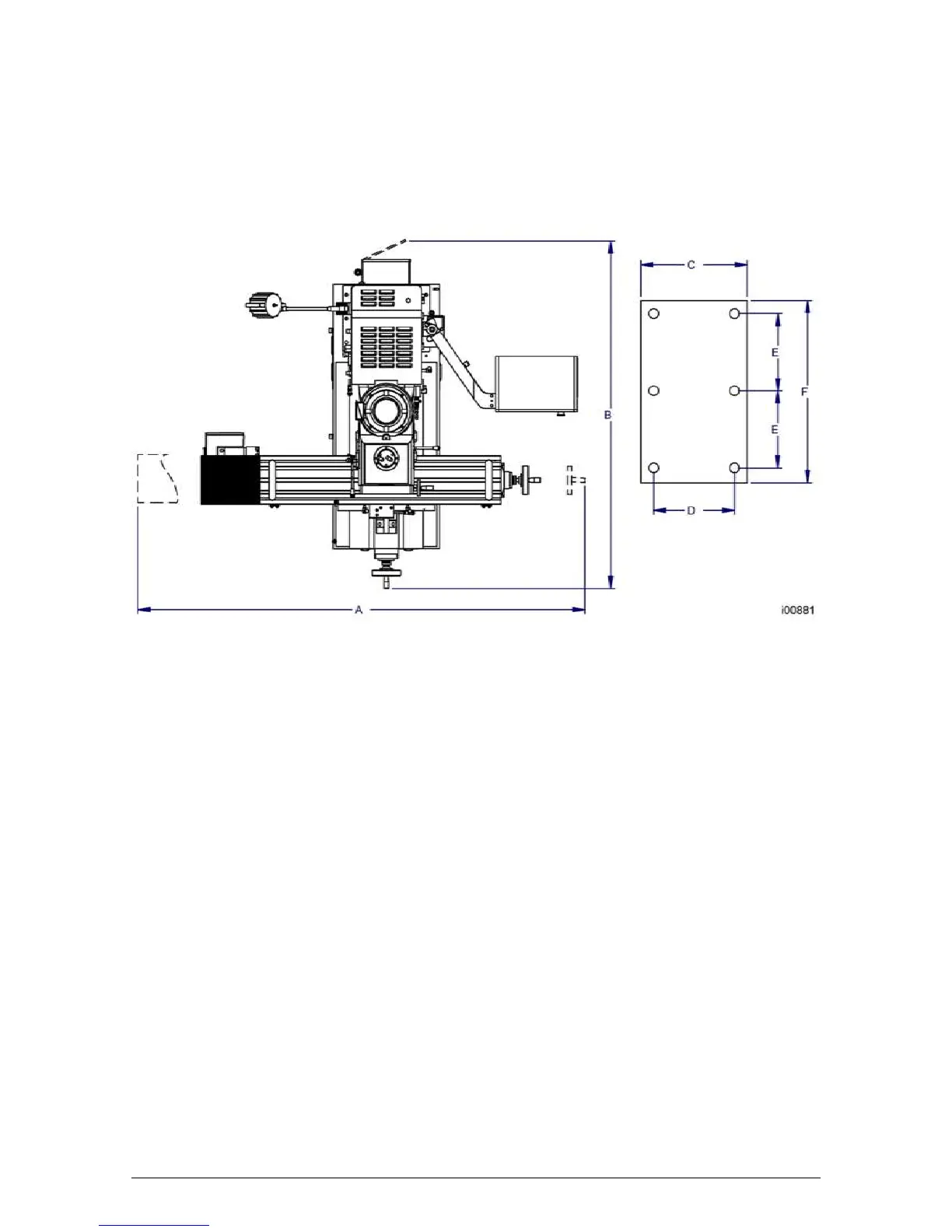

Figure 1a - SMX 2500 - Machine Footprint
SMX2500
Footprint of Machine
587 x 1029 mm
Weight (approximate) net
1452 kg
Weight (approximate) shipping
1588 kg
Pallet Size
1778 x 1778 mm
A
Overall width
2565 mm
B
Overall length w/ electric box door open
1926 mm
C
Bed width
587 mm
D
Bed width between levelling screws
520.7 mm
E
Distance between levelling screws
825.5 mm
F
Bed length
1029 mm
