XYZ Machine Tools SMX 5000 User Manual

140
XYZ Machine Tools Ltd
XYZ Bed Mill Safety, Installation, Maintenance, Service & Parts List Manual

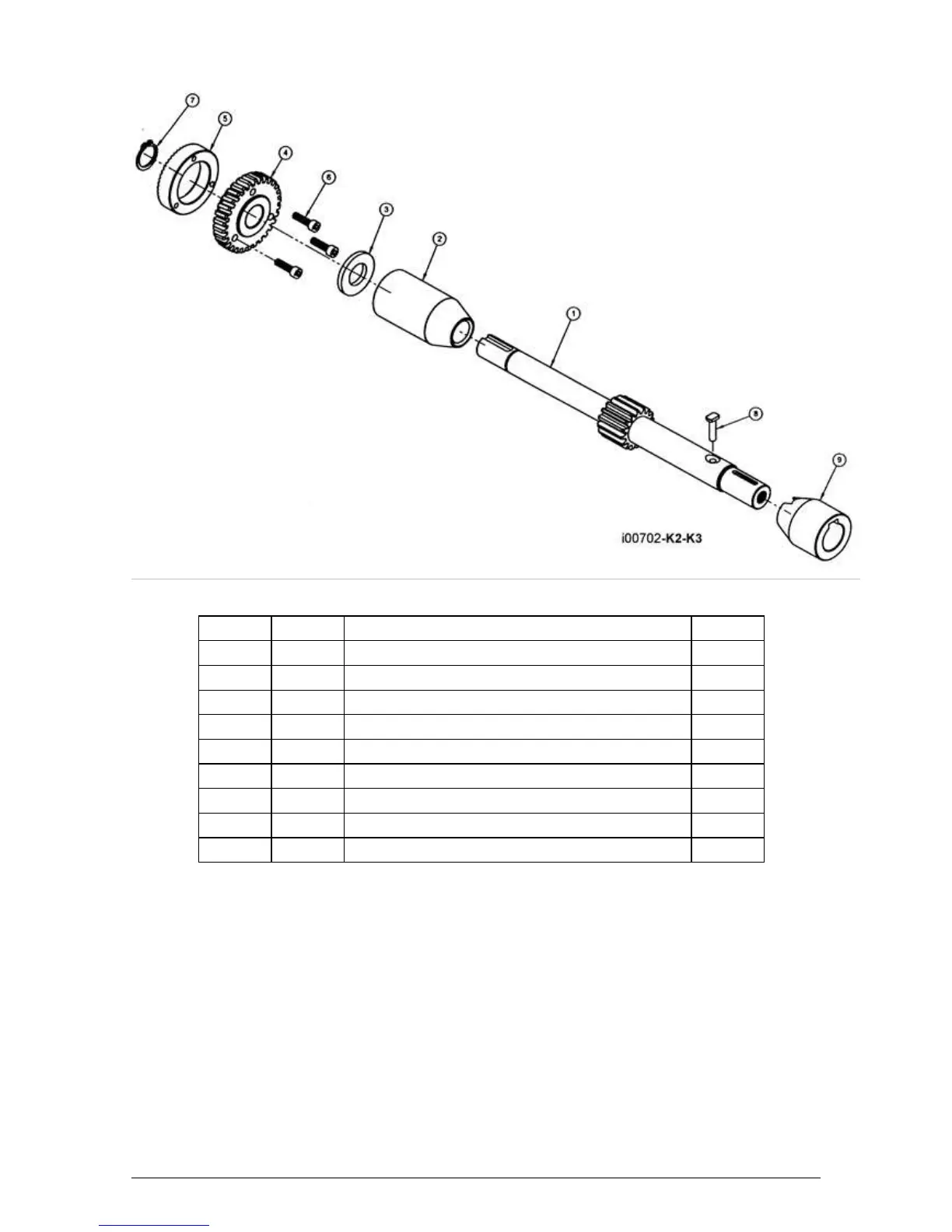

Figure 57 – SMX 2500 - Quill Pinion Shaft - P/N: 20779-3
ITEM
P/N
DESCRIPTION
QTY
1
K-B166
FRU-K3-QUILL PINION SHAFT
1
2
K-B90
FRU-K3-QUILL PINION SHAFT BUSHING- LEFT
1
3
K-B91
FRU-K3-WASHER
1
4
K-B92
FRU-K3-OVERLOAD CLUTCH WORM GEAR
1
5
K-B93
FRU-K3-OVERLOAD CLUTCH RING
1
6
K-B92-1
FRU-K3-SCREW SOC HD CAP M4-P0.7x15L
3
7
K-B94
FRU-K3-SNAP RING 95 DOWEL PIN Ø 14
1
8
K-B168
FRU-K3-SCREW PIN
1
9
K-B90-1
FRU-K3-QUILL PINION SHAFT BUSHING- RIGHT
1
I00702-K2-K3
