XYZ Bed Mill Safety, Installation, Maintenance, Service & Parts List Manual

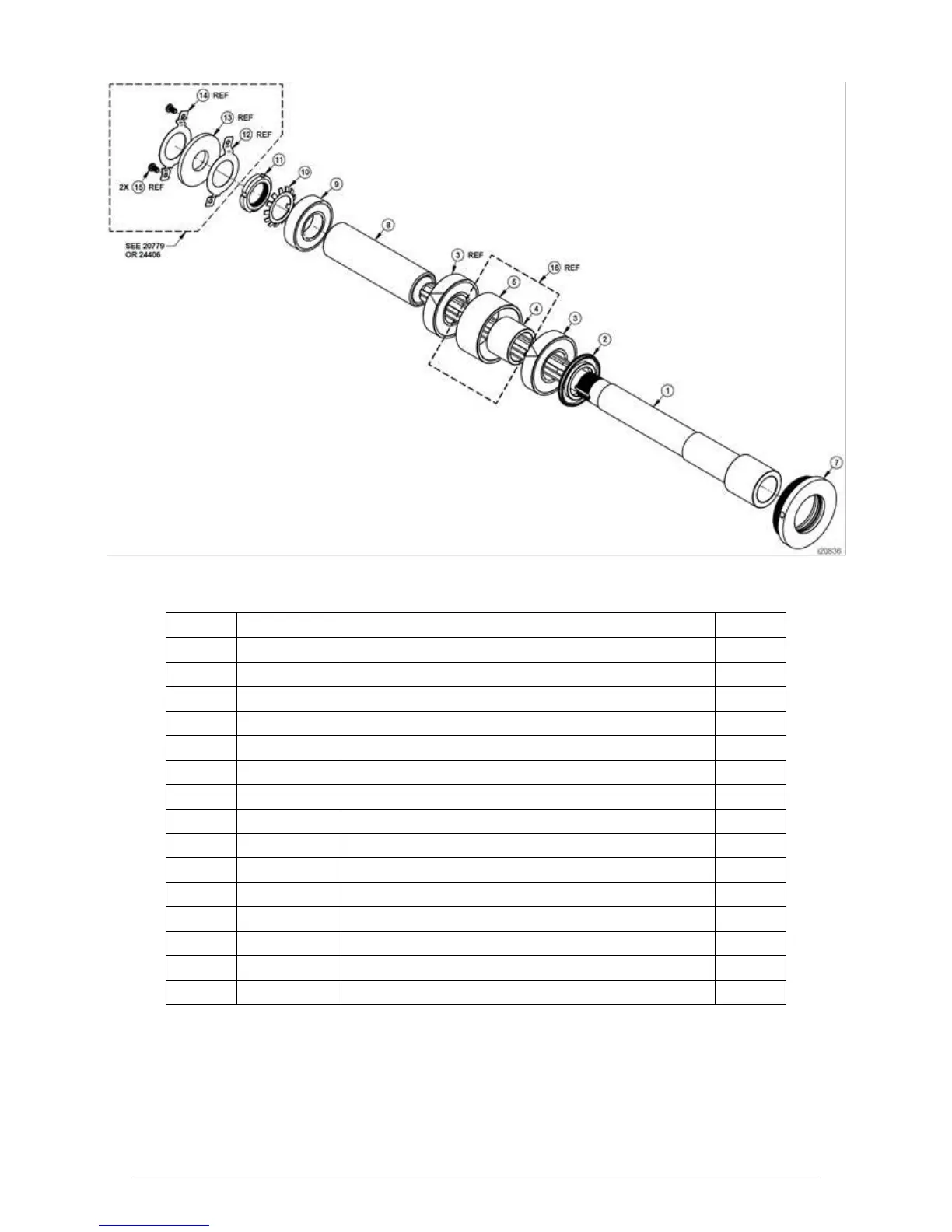

Figure 60 – SMX 2500 - Spindle Assembly - P/N: 20836
ITEM
P/N
DESCRIPTION
QTY
1
K-B127
FRU-K3-SPINDLE R8
1
2
K-B134
FRU-K3-SPINDLE DIRT SHIELD
1
3
20838
FRU-K3-BEARING 7207ZZ
1 SET
4
K-B136
FRU-K3-BEARING SPACER-SMALL
1
5
K-B137
FRU-K3-BEARING SPACER-LARGE
1
7
K-B133
FRU-K3-NOSE-PIECE
1
8
K-B132
FRU-K3-SLEEVE
1
9
K-B131
FRU-K3-BEARING-6206ZZ
1
10
K-B130
FRU-K3-BEARING LOCKWASHERØ 30
1
11
K-B129
FRU-K3-SPINDLE BEARING LOCK NUT- Ø30-20N
1
12
K-B150-1
FRU-K3-STRAIGHT LOWER CLAMP
1
13
K-B151
FRU-K3-FELT OIL STRAINER
1
14
K-B150-2
FRU-K3-STRAINER UPPER CLAMP
1
15
K-B139
FRU-K3-SCREW-PH-HD-M5-0.8X8L
2
16
20840
BEARING SPACER SET
1
i00705-K2-K3
