128
XYZ Machine Tools Ltd
XYZ Bed Mill Safety, Installation, Maintenance, Service & Parts List Manual

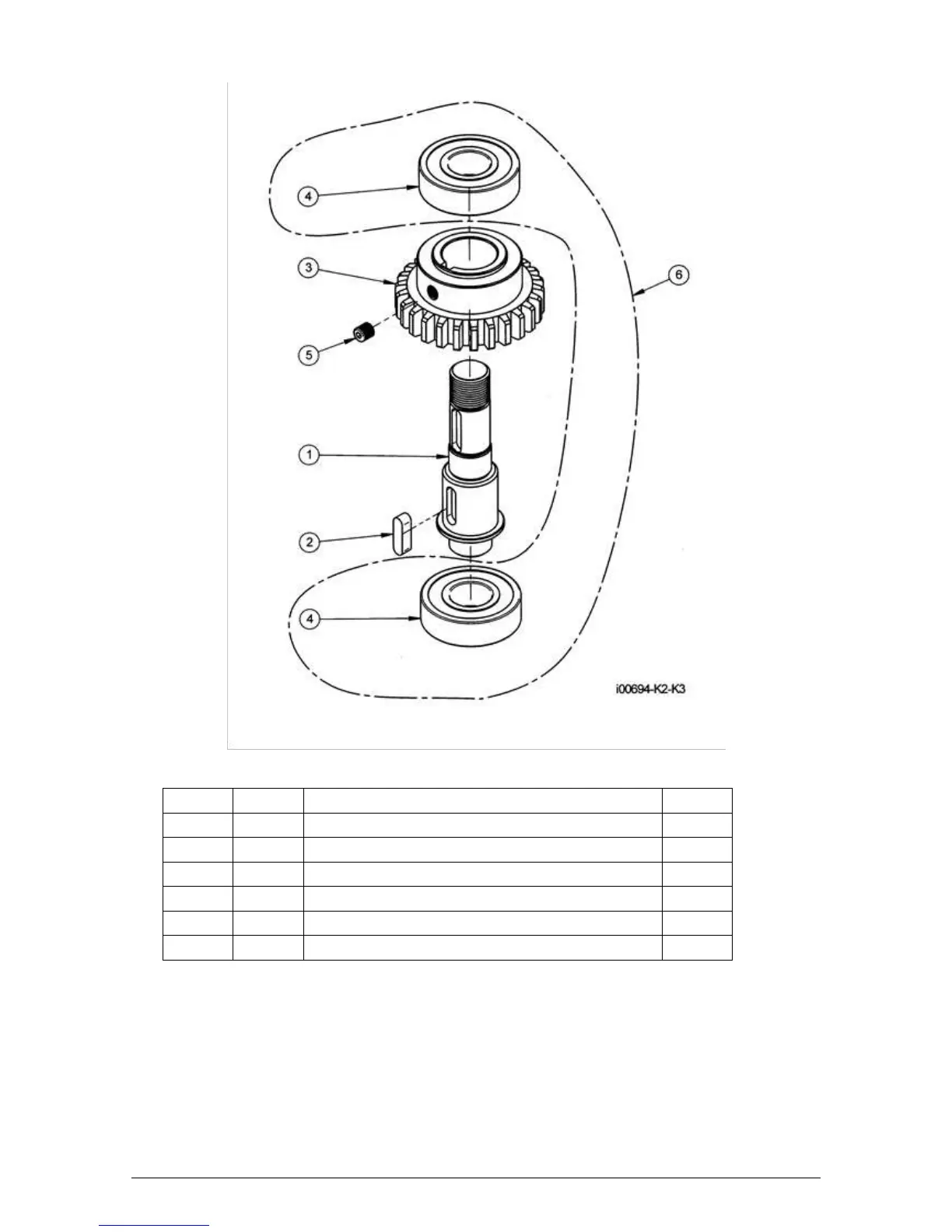

Figure 49 – SMX 2500 - Pulley Pinion - P/N: 20778-4
ITEM
P/N
DESCRIPTION
QTY
1
VS67
FRU-K3-BULL GEAR PINION COUNTER SHAFT
1
2
VS69
FRU-K3-KEY 5X5X18L
1
3
VS66
FRU-K3-BULL GEAR PINION
1
4
VS65
FRU-K3-BALL BEARING (2 REQ.) 6203ZZ
2
5
VS3
FRU-K3-SOCKET SET SCREW M6-P1.0x6L
1
6
23954
BEARING SET (2) BEARING 6203ZZ
1
