134
XYZ Machine Tools Ltd
XYZ Bed Mill Safety, Installation, Maintenance, Service & Parts List Manual

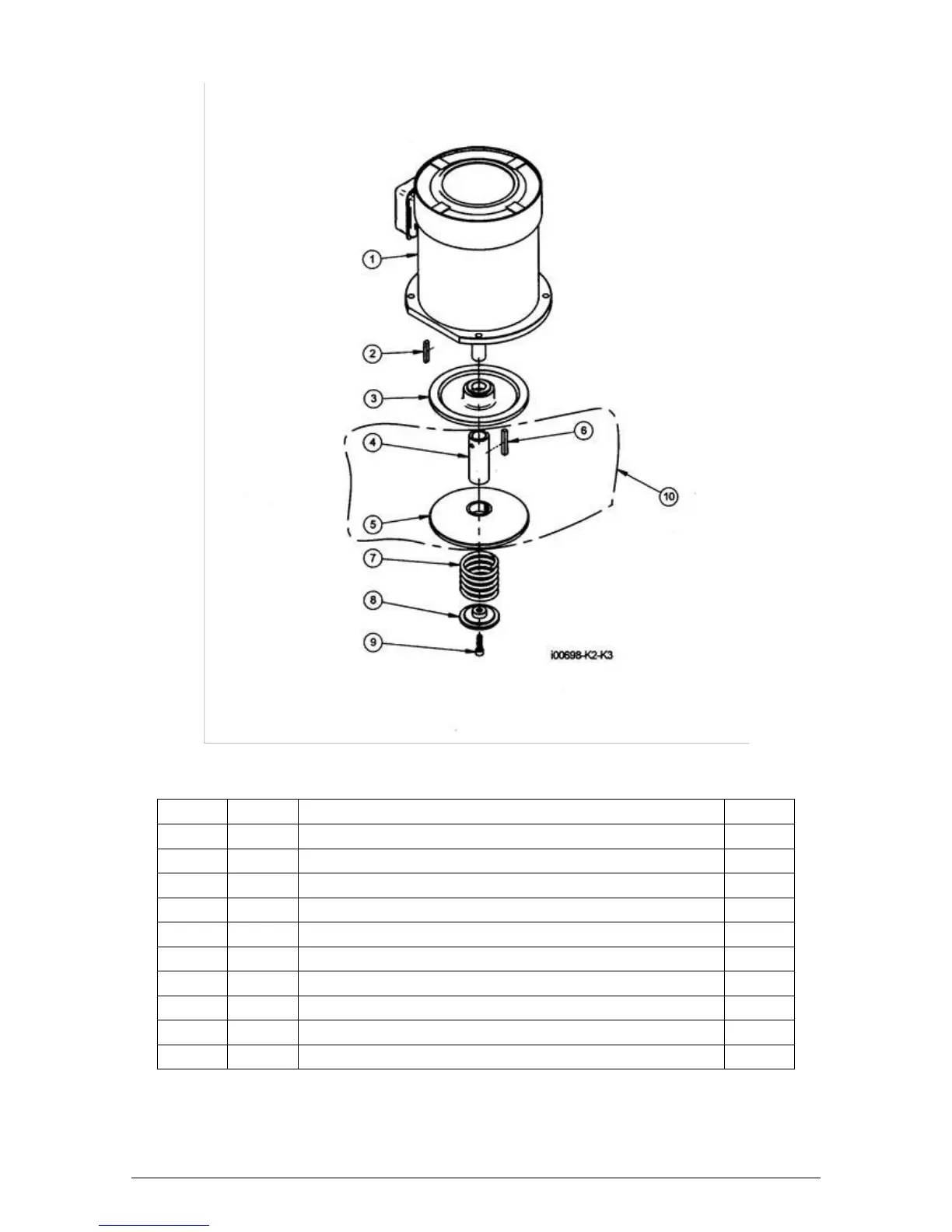

Figure 53 – SMX 2500 - Spindle Motor - P/N: 20819-1
ITEM
P/N
DESCRIPTION
QTY
1
VS110
FRU-K3-MOTOR 3 HP
1
2
VS3-1
FRU-K3-KEY 6x6x45L
1
3
VS2
FRU-K3-STATIONARY MOTOR VARIDISC
1
4
VS6
FRU-K3-BUSHING
1
5
VS5
FRU-K3-ADJUSTABLE MOTOR VARIDISC
1
6
VS6-1
FRU-K3-KEY 7x7x50L
1
7
VS8
FRU-K3-SPRING FOR VARIDISC MOTOR SHAFT
1
8
VS9
FRU-K3-ADJUSTABLE VARIDISC SPRING COLLAR
1
9
VS10
FRU-K3-SCREW- SOC HD CAP M8-P1.25x30L
1
10
23953
VARIDISC ASSY-ADJUSTABLE MOTOR VARIDISC ASSY
1
i00698-K2-K3
