XYZ Machine Tools Ltd
XYZ Bed Mill Safety, Installation, Maintenance, Service & Parts List Manual

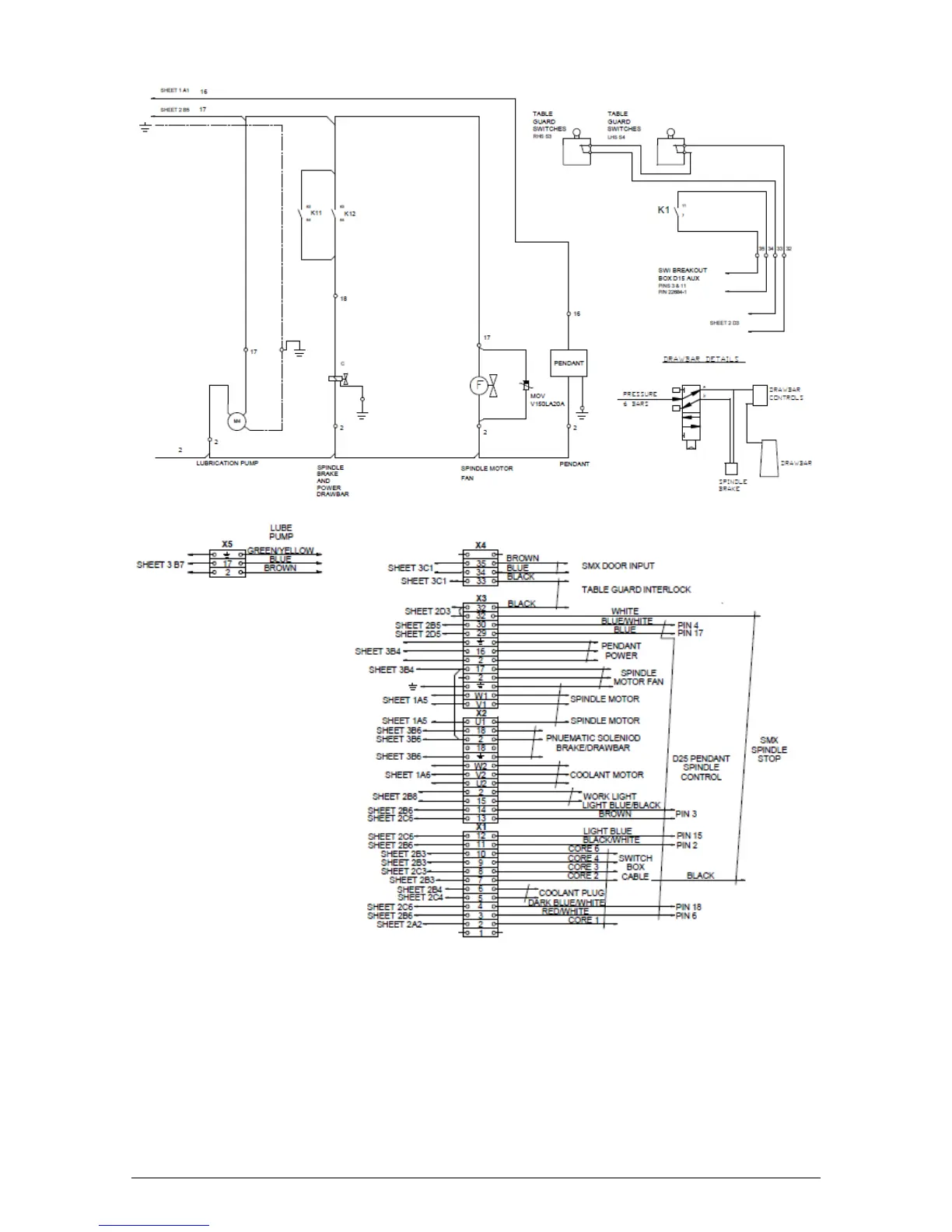

Figure 15b – SMX 2500 Electrical Schematic
4.8 Service Codes
Service codes are broken down into the 4 categories: software, machine setup, diagnostics and user
options/defaults.
All Service Codes are accessed in the SET-UP Mode by pressing the soft key for “SERV CODES”. The
service codes can be found via one of the headings listed on the main screen. Press the heading you
