166
XYZ Machine Tools Ltd
XYZ Bed Mill Safety, Installation, Maintenance, Service & Parts List Manual

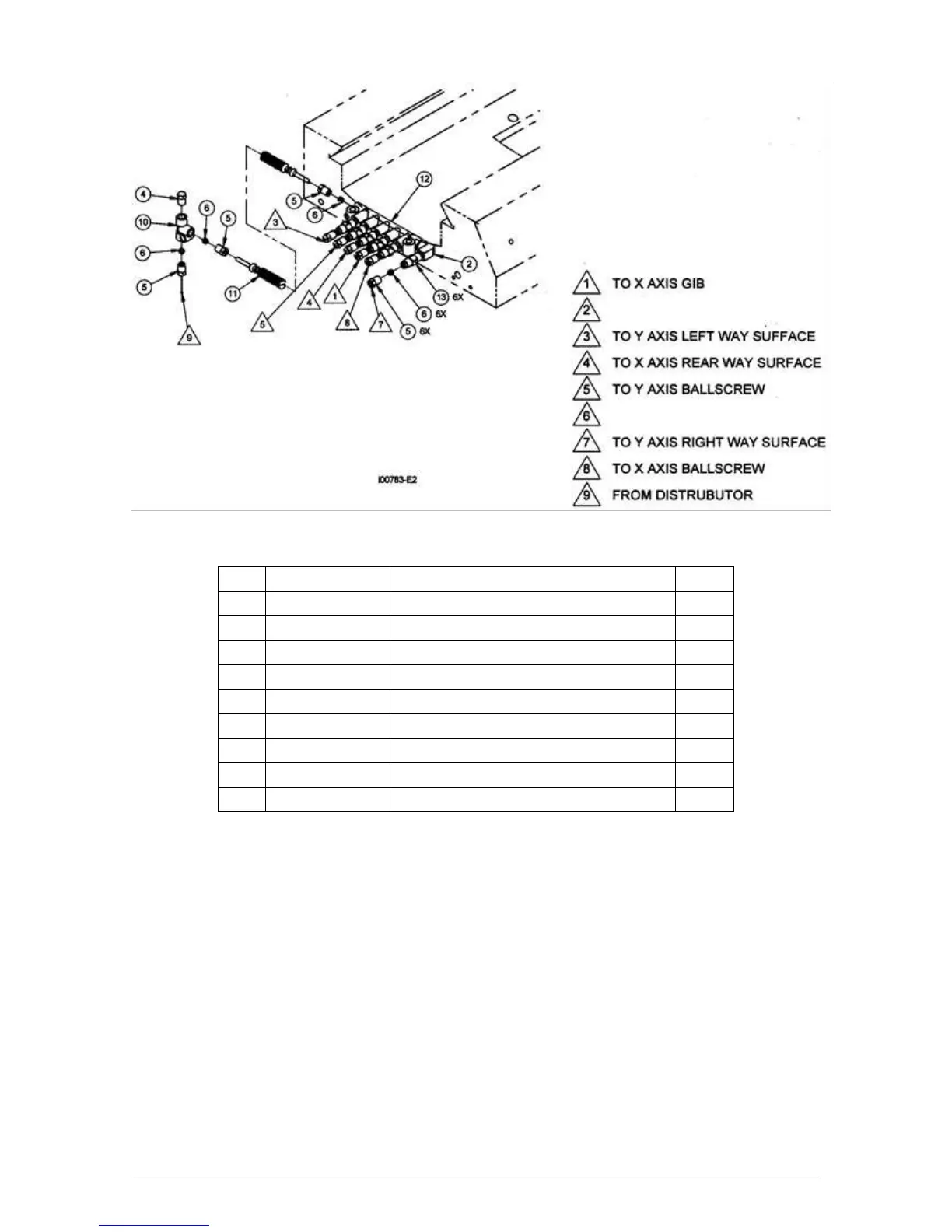

Figure 71 - SMX2500 – Lubrication System – X & Y Axis
ITEM
P/N
DESCRIPTION
QTY
2
PH4-8
ELBOW
1
4
L015
PLUG- M8 X 1.0-PG004
1
5
L013
BUSHING-PA4
9
6
L014
SLEEVE-4 MM-PB4
9
10
L012
TEE ADAPTER-PKD4
1
11
FHC405
HOSE
1
12
L006
DISTRIBUTOR-DB10
1
13
PSS4
OIL DISTRIBUTOR
6
14
L005
TUBING-4MM ALUM-A4
A/R
i00783-E2
