XYZ Bed Mill Safety, Installation, Maintenance, Service & Parts List Manual

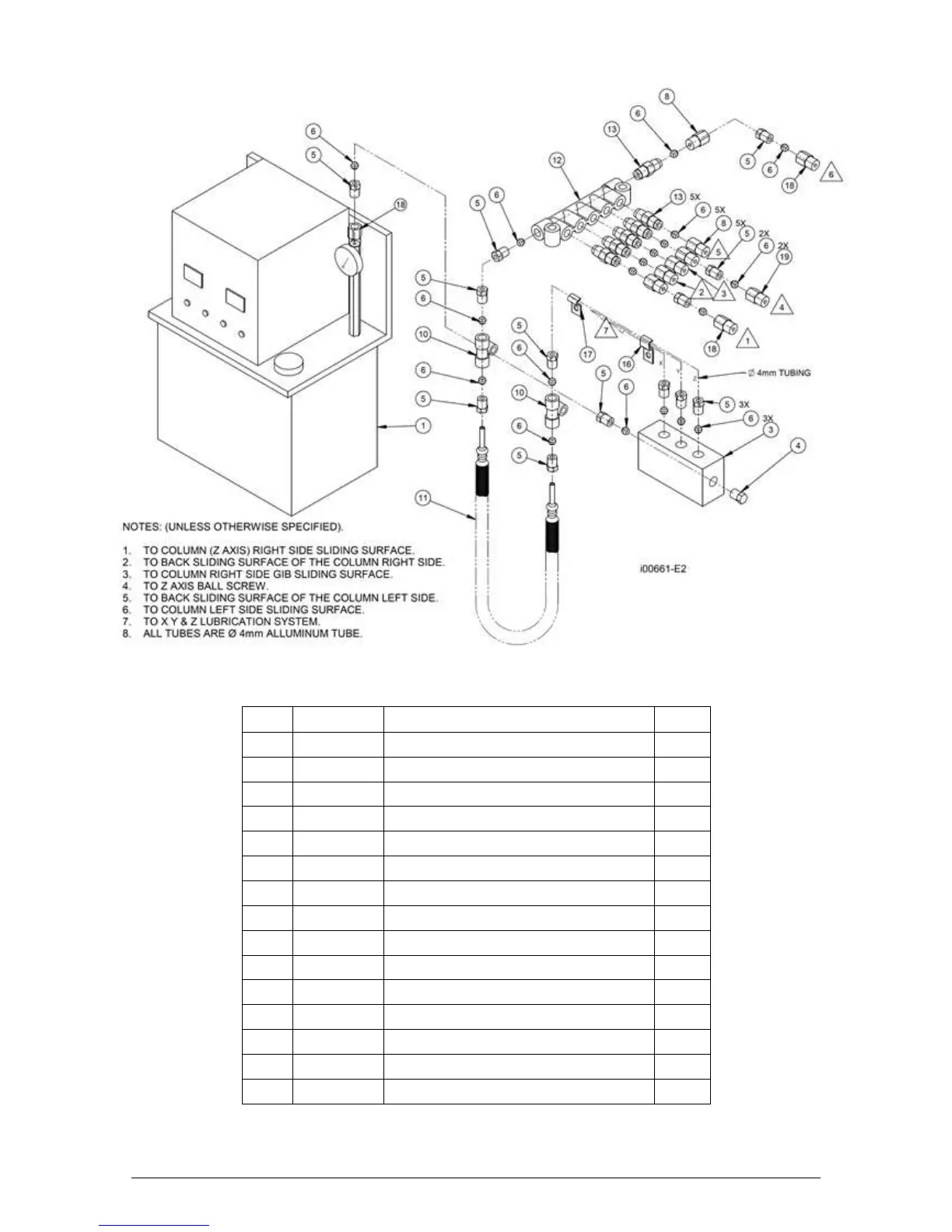

Figure 70 – SMX 2500 - Lubrication Pump & Manifolds
ITEM
P/N
TITLE
QTY
1
21157-2
LUBRICATION PUMP-DPME2
0
3
B-3
DISTRBUTOR-OIL REGULATING B-3
0
4
PG004
PLUG- M8 X 1.0
0
5
PA4
BUSHING
13
6
PB4
SLEEVE-4 MM
19
8
PAN4
NUT
6
10
JD-4
2-WAY JUNCTION
1
11
L008
TUBE- STEEL ROPE & HOSE
1
12
DB7
DISTRIBUTOR
1
13
PSS4
OIL DISTRIBUTOR
6
14
A4
TUBING-4MM ALUM
A/R
16
PZ0204
CLAMP
1
17
PZ0104
CLAMP
1
18
PD401
ADPATER
3
19
PD408
ADAPTER
1
