XYZ Machine Tools Ltd

XYZ Bed Mill Safety, Installation, Maintenance, Service & Parts List Manual

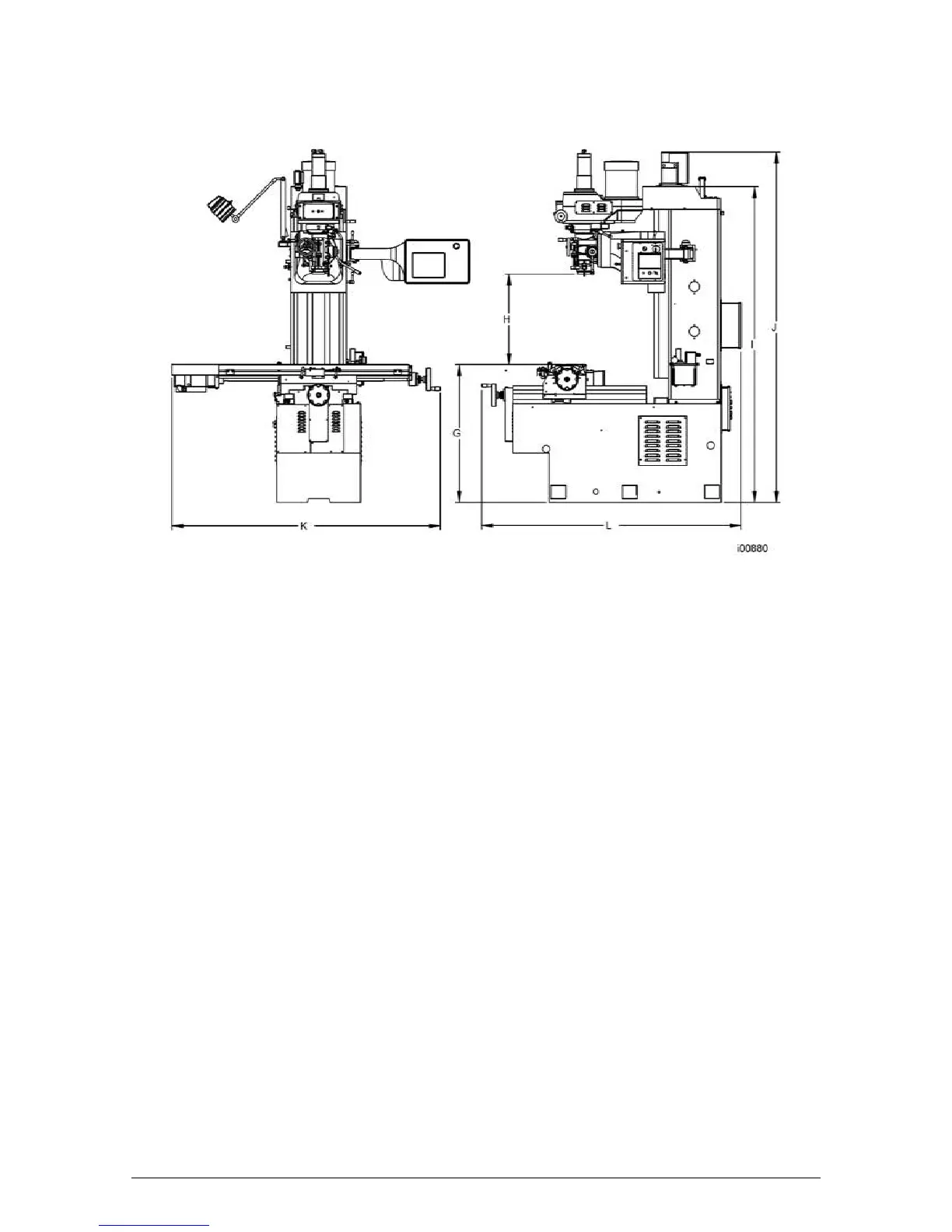

Figure 1b - SMX 2500 - Machine Footprint

SMX2500

Height of table from bottom of bed

864 mm

Maximum distance from spindle nose to table

597 mm

Maximum height of machine from bottom of bed to top of column cover.

1981 mm

Height of machine from bottom of bed to top of spindle motor

2261 mm

Width of machine including table

1778 mm

Length of machine with electric box door closed

1776 mm
