XYZ Machine Tools SMX 5000 User Manual

141
XYZ Machine Tools Ltd
XYZ Bed Mill Safety, Installation, Maintenance, Service & Parts List Manual

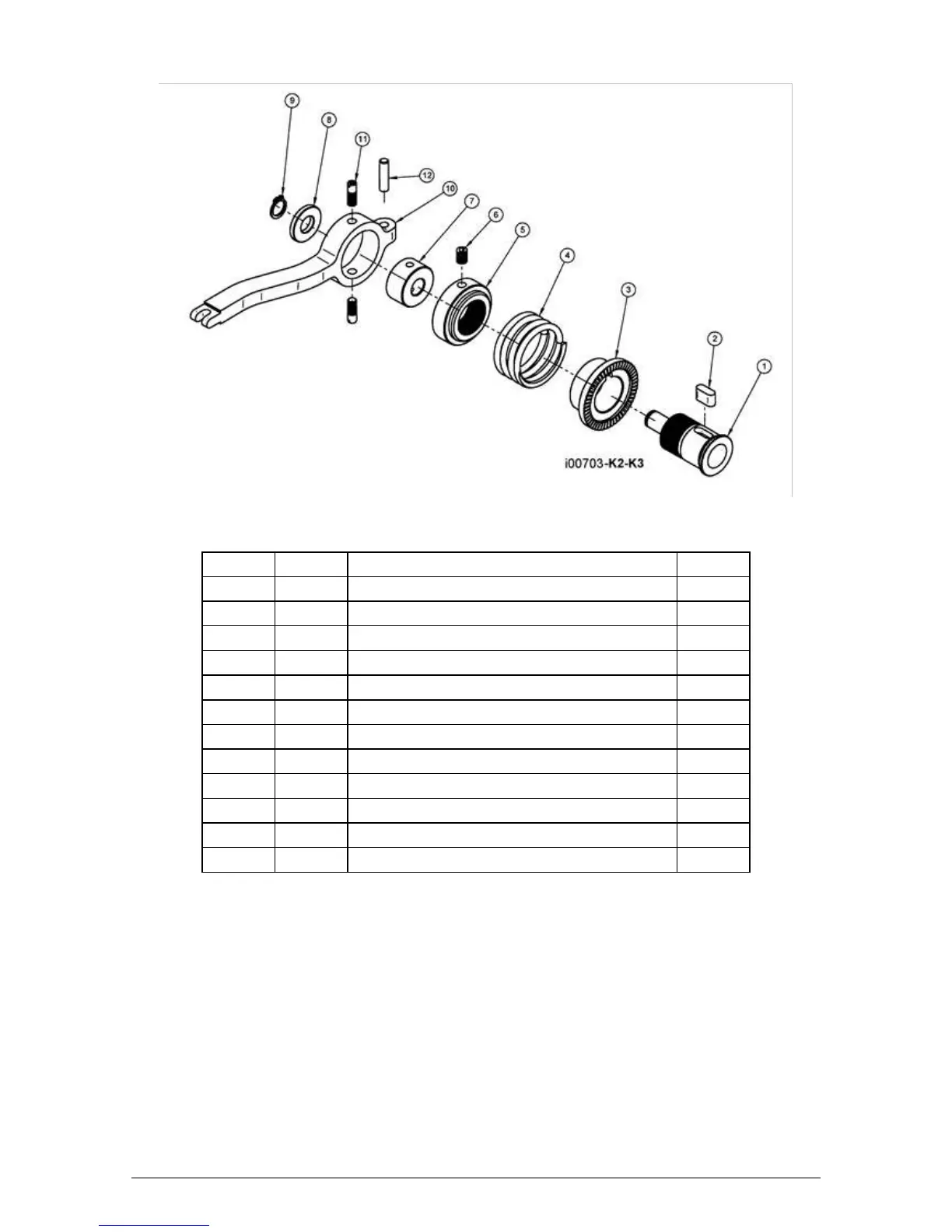

Figure 58 – SMX 2500 - Overload Clutch Trip - P/N: 20779-4
ITEM
P/N
DESCRIPTION
QTY
1
K-B81
FRU-K3-OVERLOAD CLUTCH SLEEVE
1
2
K-B81-1
FRU-K3-KEY 5x8x13L
1
3
K-B80
FRU-K3-OVERLOAD CLUTCH
1
4
K-B79
FRU-K3-SAFETY CLUTCH SPRING
1
5
K-B78
FRU-K3-OVERLOAD CLUTCH LOCKNUT
1
6
K-B76
FRU-K3-SOCKET SET SCREW M6-P1.0x8L
1
7
K-B75
FRU-K3-CLUTCH RING
1
8
K-B97
FRU-K3-OVERLOAD CLUTCH WASHER
1
9
K-B98
FRU-K3-SNAP RING Ø 10
1
10
K-B96
FRU-K3-OVERLOAD CLUTCH TRIP LEVER
1
11
K-B74
FRU-K3-CLUTCH RING PIN (2REQ.)
2
12
K-B77
FRU-K3-BRASS PLUG
1
i00703-K2-K3

XYZ Machine Tools SMX 5000 Specifications

General

Brand	XYZ Machine Tools
Model	SMX 5000
Category	Power Tool
Language	English
