XYZ Machine Tools SMX 5000 User Manual

138
XYZ Machine Tools Ltd
XYZ Bed Mill Safety, Installation, Maintenance, Service & Parts List Manual

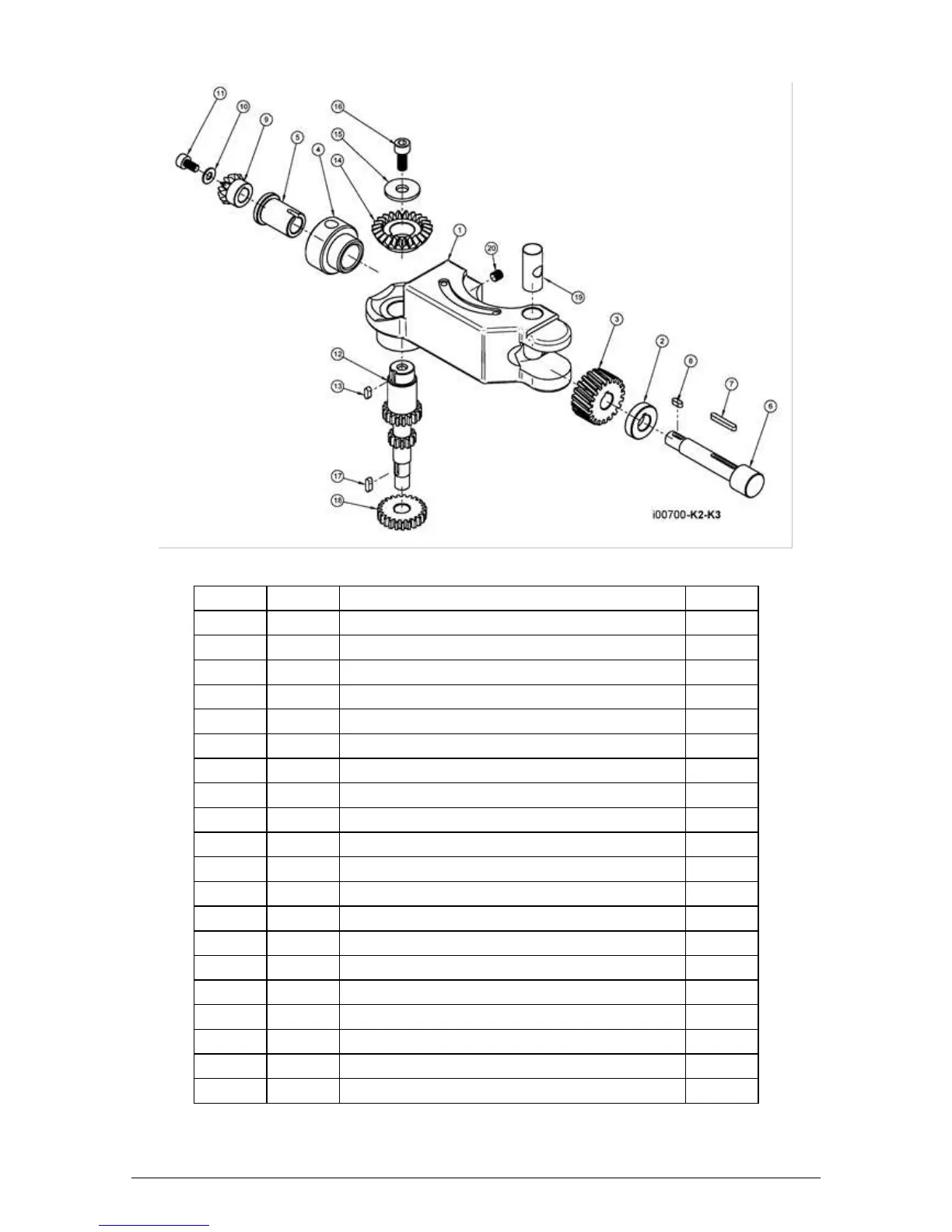

Figure 55 – SMX 2500 - Worm Gear Cradle - P/N: 20779-1
ITEM
P/N
DESCRIPTION
QTY
1
K-B17
FRU-K3-WORM GEAR CRADLE
1
2
K-B07
FRU-K3-WORM GEAR SPACER
1
3
K-B08
FRU-K3-FEED DRIVEWORM GEAR
1
4
K-B05
FRU-K3-WORM CRADLE BUSHING
1
5
K-B04
FRU-K3-FEED WORM GEAR SHAFT SLEEVE
1
6
K-B09
FRU-K3-FEED DRIVE WORM GEAR SHAFT
1
7
K-B11
FRU-K3-KEY 3x3x25L
1
8
K-B10
FRU-K3-WORM SHAFT KEY 3x3x8L
1
9
K-B03
FRU-K3-FEED BEVEL PINION
1
10
K-B02
FRU-K3-BEVEL PINION WASHER Ø 5
1
11
K-B01
FRU-K3-SOC.HD.SCREW M5-P0.8x10L
1
12
K-B36
FRU-K3-FEED DRIVING GEAR
1
13
K-B36-1
FRU-K3-KEY 3x3x8L
1
14
K-B15
FRU-K3-FEED REVERSE BEVEL GEAR
1
15
K-B13
FRU-K3-WASHER Ø 6, 22 OD
1
16
K-B14
FRU-K3-SOC HD SCREW M6-P1.0x15L
1
17
K-B37
FRU-K3-KEY 3x3x10L
1
18
K-B40
FRU-K3-FEED DRIVE GEAR
1
19
K-B16
FRU-K3-FEED ENGAGE PIN
1
20
K-B06
FRU-K3-SETSCREW M6-P1.0x6L
1
i00700-K2-K3
