XYZ Machine Tools Ltd
XYZ Bed Mill Safety, Installation, Maintenance, Service & Parts List Manual

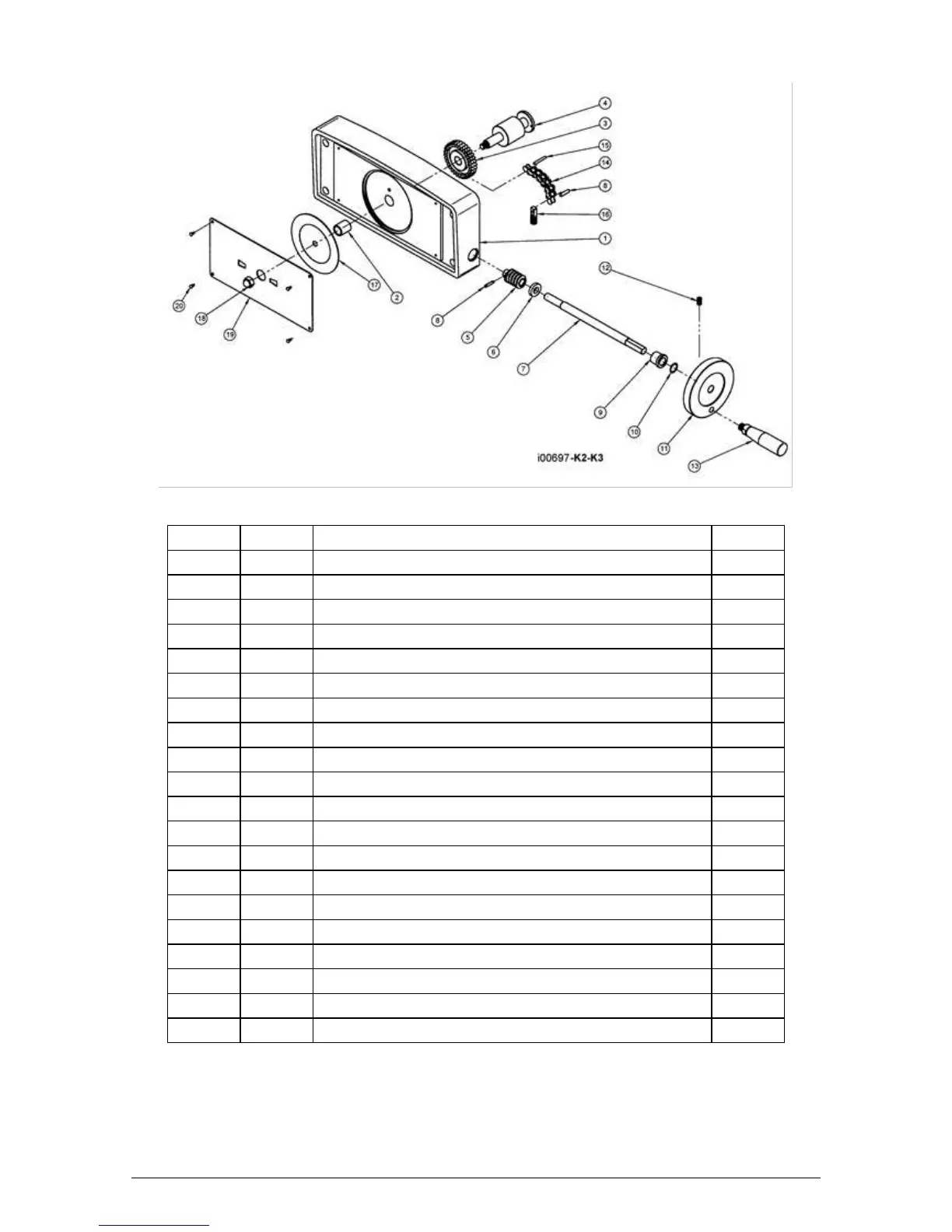

Figure 52 - SMX2500 - Speed Change Handwheel - P/N: 20778-7
ITEM
P/N
DESCRIPTION
QTY
1
VS16
FRU-K3-SPEED CHANGE HOUSING
1
2
VS20
FRU-K3-BEARING SELF LUBRICATING
1
3
VS22
FRU-K3-SPEED CHANGER GEAR
1
4
VS31
FRU-K3-SPEED CHANGE CHAIN DRUM
1
5
VS21
FRU-K3-WORM
1
6
VS125
FRU-K3-WASHER
1
7
VS25
FRU-K3-SPEED CHANGE SHAFT
1
8
VS40
FRU-K3-ROLL PIN Ø3x15L
2
9
VS24
FRU-K3-COPPER BUSHING
1
10
VS24-1
FRU-K3-WASHER-WAVE
1
11
VS27
FRU-K3-SPEED CHANGE HANDWHEEL
1
12
VS18
FRU-K3-FULL DOG SOCKET SET SCREW M6-P1.0x10L
1
13
VS28
FRU-K3-HANDLE 3/8-16NC
1
14
VS32
FRU-K3-CHAIN #310X9.525
1
15
VS31-1
FRU-K3-DOWEL PIN Ø3x25L
1
16
VS30
FRU-K3-SPEED CHANGE STUD
1
17
VS16-1
FRU-K3-SPEED DIAL
1
18
VS95
FRU-K3-NUT-ACORN 5/16-18 NC
1
19
VS16-2
FRU-K3-NAME PLATE
1
20
VS19
FRU-K3-SCREW-DRIVE
1
i00697-K2-K3
