XYZ Machine Tools SMX 5000 User Manual

142
XYZ Machine Tools Ltd
XYZ Bed Mill Safety, Installation, Maintenance, Service & Parts List Manual

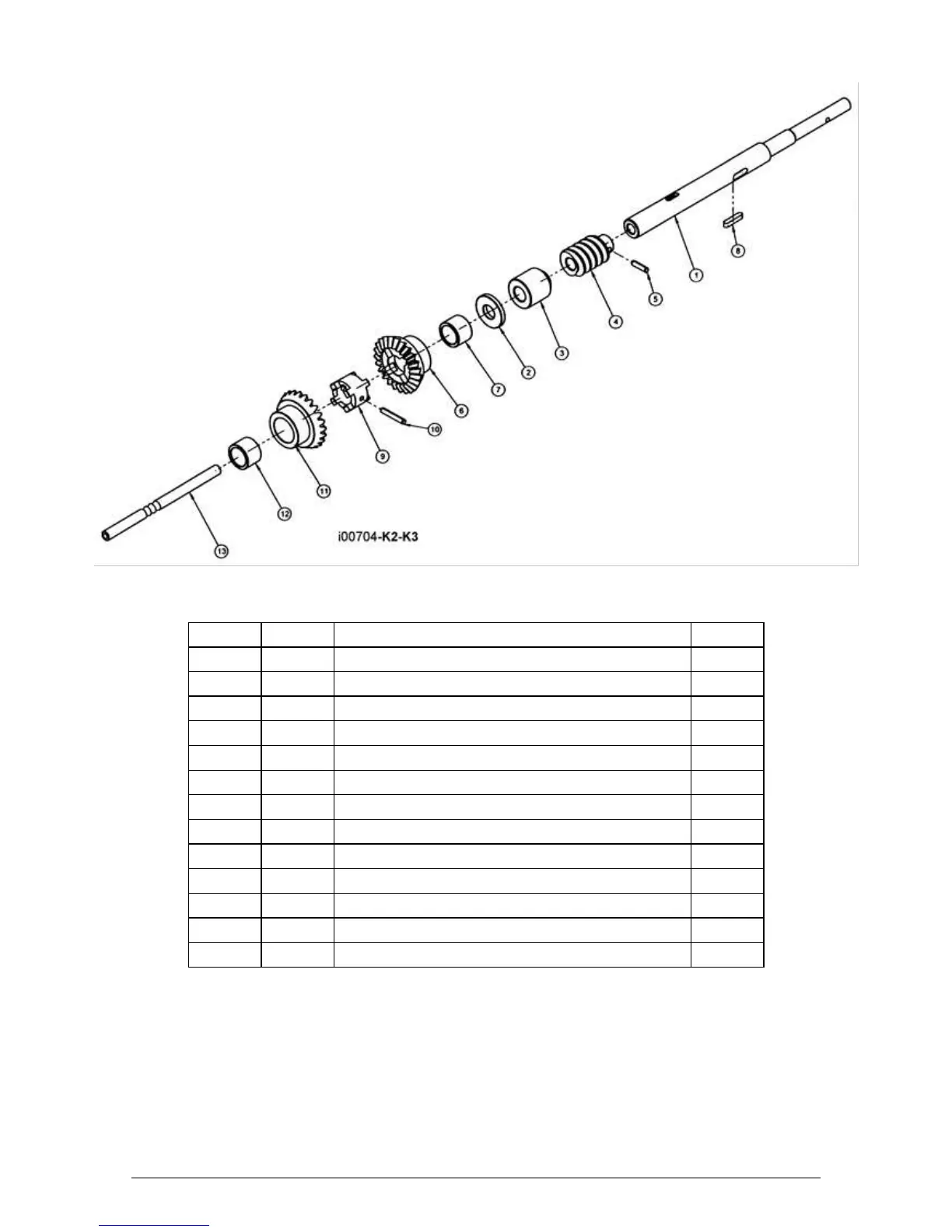

Figure 59 – SMX 2500 - Feed Reverse Clutch - P/N: 20779-5
ITEM
P/N
DESCRIPTION
QTY
1
K-B57
FRU-K3-FEED WORM SHAFT
1
2
K-B47
FRU-K3-FEED WORM SHAFT THRUST WASHER
1
3
K-B44
FRU-K3-FEED WORM SHAFT BUSHING
1
4
K-B43
FRU-K3-WORM
1
5
K-B59
FRU-K3-PIN Ø 3x12L
1
6
K-B49
FRU-K3-FEED REVERSE BEVEL GEAR
1
7
K-B48
FRU-K3-BUSHING
1
8
K-B62
FRU-K3-KEY 3x3x15L
1
9
K-B50
FRU-K3-FEED REVERSE CLUTCH
1
10
K-B56
FRU-K3-PIN Ø 3x19L
1
11
K-B51
FRU-K3-FEED REVERSE BEVEL GEAR
1
12
K-B52
FRU-K3-BUSHING
1
13
K-B55
FRU-K3-REVERSE CLUTCH ROD
1
i00704-K2-K3
