XYZ Machine Tools SMX 5000 - SMX2500 - Quill Feed Selector

139
XYZ Machine Tools Ltd
XYZ Bed Mill Safety, Installation, Maintenance, Service & Parts List Manual

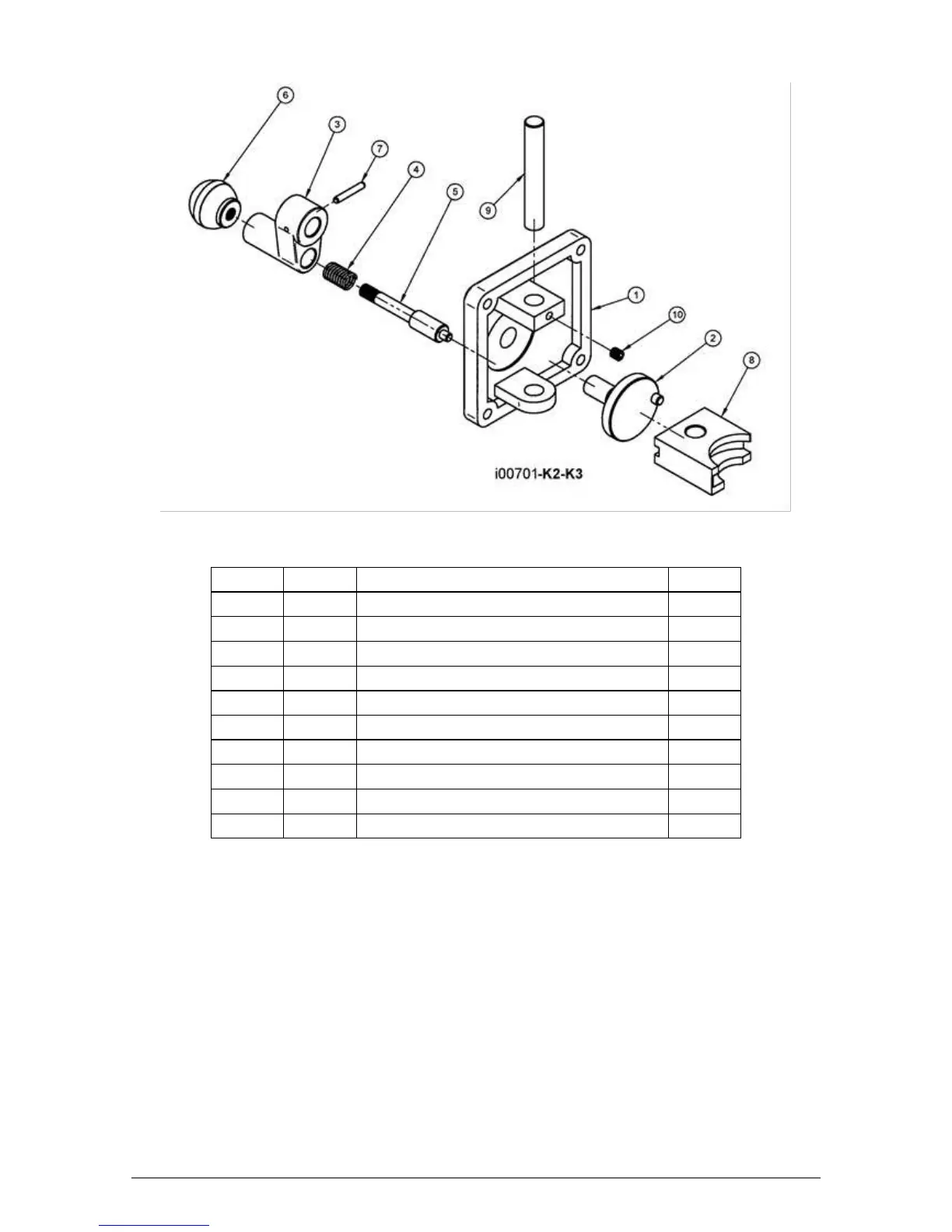

Figure 56 – SMX 2500 - Quill Feed Selector - P/N: 20779-2
ITEM
P/N
DESCRIPTION
QTY
1
K-B66
FRU-K3-CLUSTER GEAR COVER
1
2
K-B64
FRU-K3-CLUSTER GEAR SHAFT CRANK
1
3
K-B70
FRU-K3-SHIFT CRANK
1
4
K-B69
FRU-K3-SPRING Ø 3 x 20L
1
5
K-B68
FRU-K3-GEAR SHIFT PLUNGER
1
6
K-B72
FRU-K3-SHIFT KNOB-5/16-18NC
1
7
K-B71
FRU-K3-ROLL PIN Ø 3 x 20L
1
8
K-B63
FRU-K3-FEED GEAR SHIFT FORK
1
9
K-B65
FRU-K3-SHAFT
1
10
K-B61
FRU-K3-CAP SET SCREW M5-P0.8x5L
1
i00701-K2-K3
