XYZ Machine Tools SMX 5000 User Manual

127
XYZ Machine Tools Ltd
XYZ Bed Mill Safety, Installation, Maintenance, Service & Parts List Manual

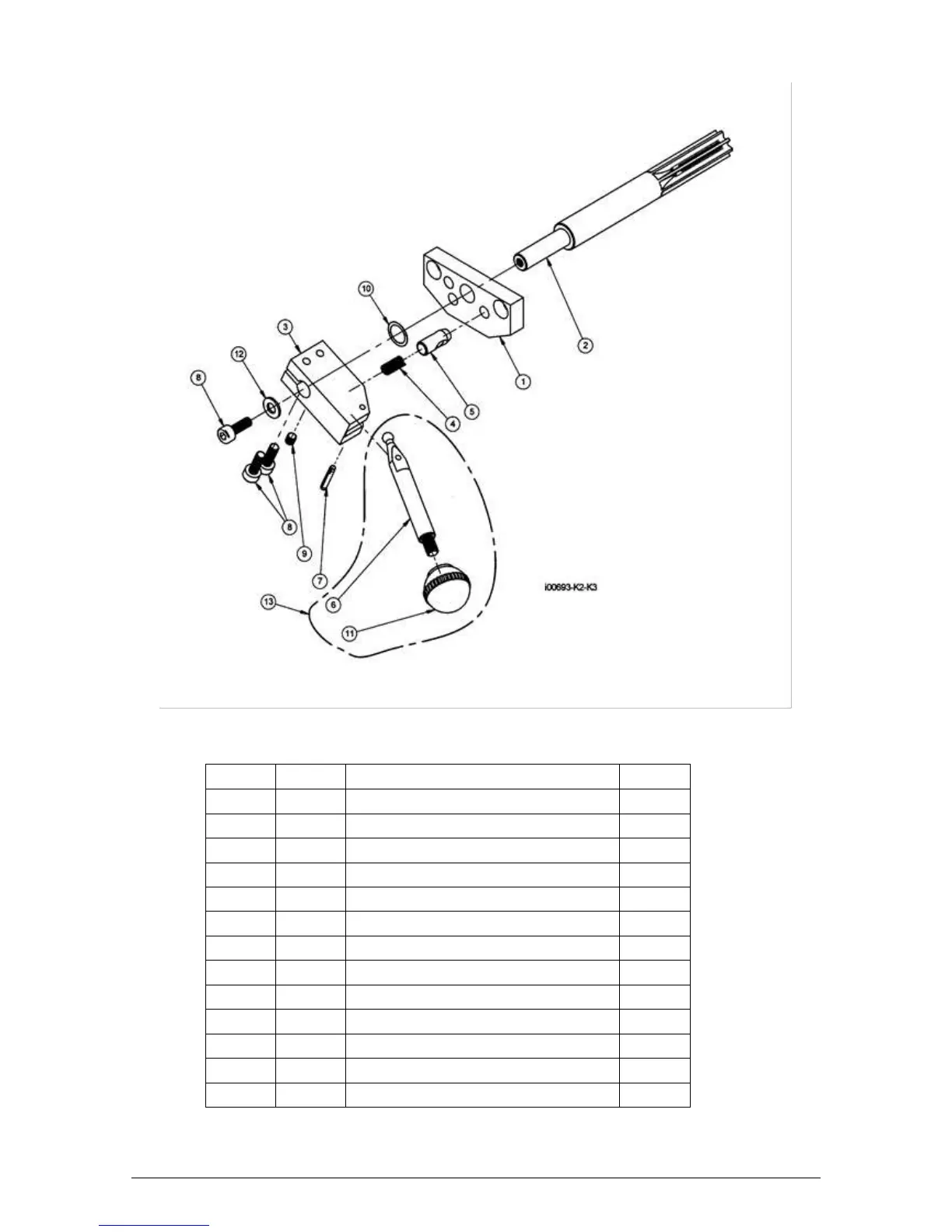

Figure 48 – SMX 2500 - Hi-Low Shift - P/N: 20778-3
ITEM
P/N
DESCRIPTION
QTY
1
VS89
FRU-K3-HI-LOW DETENT PLATE
1
2
VS87
FRU-K3-CLUTCH GEAR SHAFT
1
3
VS92
FRU-K3-HI-LOW PINION BLOCK
1
4
VS91
FRU-K3-SPRING
1
5
VS90
FRU-K3-HI-LOW DETENT PLUNGER
1
6
VS94
FRU-K3-HI-LOW SHAFT CRANK
1
7
VS88
FRU-K3-PIN Ø 3X19L
1
8
VS93
FRU-K3-SCREW M5-P0.8x15L
2
9
VS92-1
FRU-K3-SET SCREW M5-P0.8x5L
1
10
VS92-2
FRU-K3-WASHER- FLAT Ø 11
1
11
VS57
FRU-K3-BAKELITE BALL HANDLE
1
12
VS116
FRU-K3-WASHER- FLAT Ø M5
1
13
24083
SHAFT-HI/LOW SHAFT ASSY
1
i00693-K2-K3
