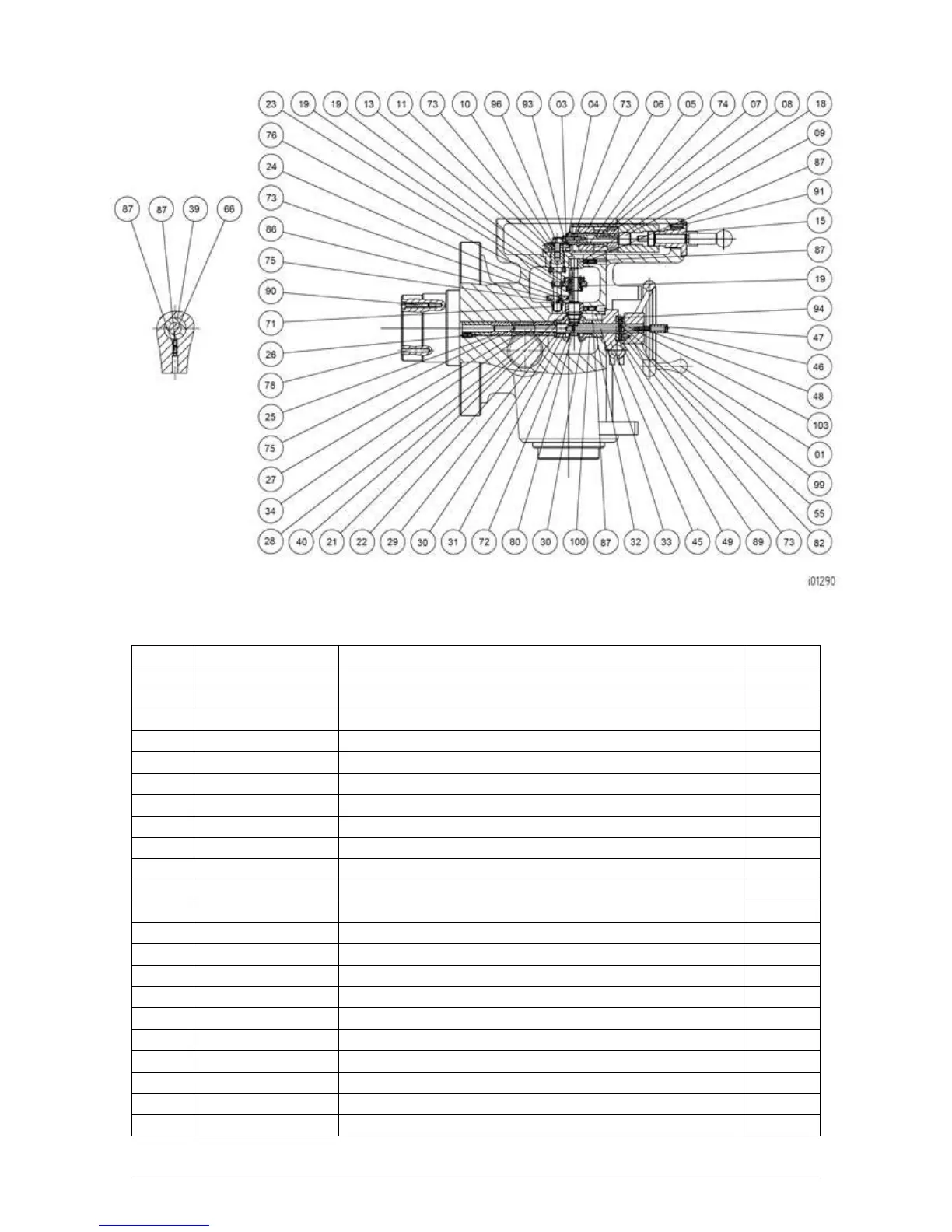

Figure 64b – SMX 4000 and 5000 - Lower Head Assembly (side view)
ITEM
P/N
DESCRIPTION
QTY
1
H-022
HANDLE
1
2
HA-033
PLASTIC BALL
3
3
HB-002
BEVEL PINION WASHER
1
4
HB-003-8
STEEL PINION
1
5
HB-004-8
FEED WORM GEAR SHAFT SLEEVE
1
6
HB-005-8
WORM CRADLE BUSHING
1
7
HB-007-8
WORM GEAR SPACER
1
8
HB-008-8
FEED DRIVE WORM GEAR
1
9
HB-009-8
FEED DRIVE WORM GEAR SHAFT
1
10
HB-013
WASHER
1
11
HB-015-8
FEED REVERSE BEVEL GEAR
1
12
HB-016
FEED ENGAGE PIN
1
13
HB-017-8
FEED GEAR CRADLE
1
14
HB-018-3
WORM GEAR CRADLE THROW OUT
1
15
HB-019-3
SHIFT SLEEVE
1
16
HB-020
GEAR SHIFT PLUNGER
2
17
HB-023
SHIFT CRANK
2
18
HB-027-8
SLEEVE
1
19
HB-028
FEED DRIVE CLUSTER GEAR
1
20
HB-031&HB-035-8
FEED REVERSE BEVEL GEAR PINION
1
21
HB-033-8
DRIVE SHAFT BUSHING
1
22
HB-034-8
SPACER
1
