E

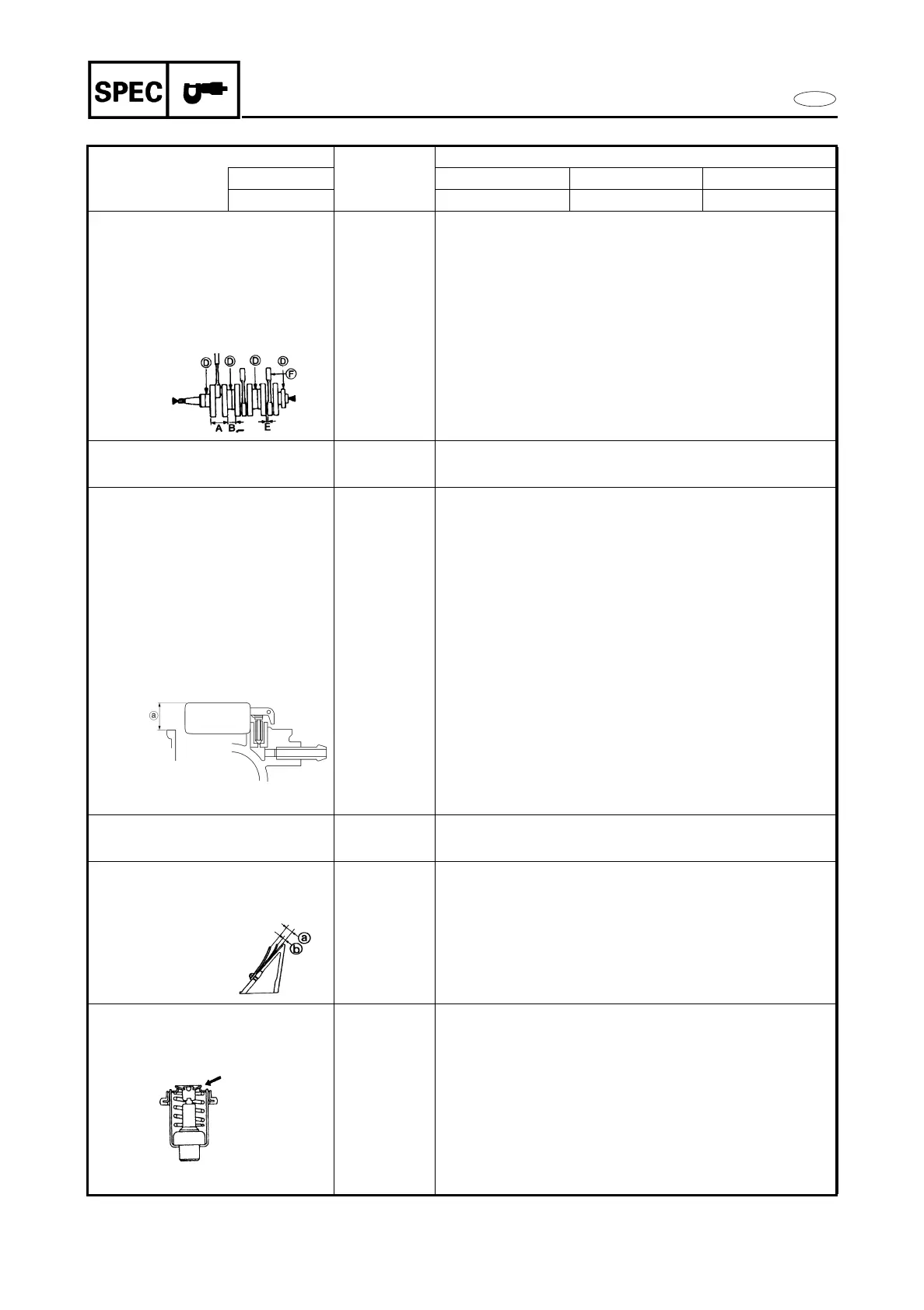

MAINTENANCE SPECIFICATIONS
Unit
Model
Item Worldwide E60HMHD E60HWHD E60HWD
USA, Canada E60MH E60EH —
CRANKSHAFT ASSEMBLY
Crank width (A) mm (in) 57.90 - 57.95 (2.280 - 2.281)
Crank width (B) mm (in) 35.90 - 36.10 (1.413 - 1.421)
Runout limit (D) mm (in) 0.05 (0.002)
Big end side clearance (E) mm (in) 0.20 - 0.70 (0.008 - 0.028)
Small end axial play limit (F) mm (in) 2.0 (0.08)
CONNECTING ROD
Small end diameter 24.900 - 24.812
CARBURETORS
Identification mark mm (in) 6K503
Main jet
(M.J.)
#135
Main air jet
(M.A.J.)
#145
Main nozzle
(M.N.)
mm (in) 3.0 (0.12)
Pilot jet
(P.J.)
#70
Pilot air jet
(P.A.J.)
#85
Pilot screw
(P.S.)
turns out 1 - 1/2 ± 1/4
Float height
a
mm (in) 14.0 ± 2.0 (0.55 ± 0.08)
Valve seat size mm (in) 1.4 (0.06)
ENGINE SPEED
Idle speed r/min 1,000± 50
REED VALVES
Valve stopper height mm (in) 3.0 ± 0.2 (0.12 ± 0.01)
Valve bending
limit
mm (in) 0.2 (0.01)
THERMOSTATS
Opening temperature °C (°F) 48 - 52 (118 - 126)
Full - opening temperature °C (°F) 60 (140)
Valve open lower unit mm (in) 3 (0.12)
2-4
