Yamaha EF7200E - Description

– 7 –
DESCRIPTION

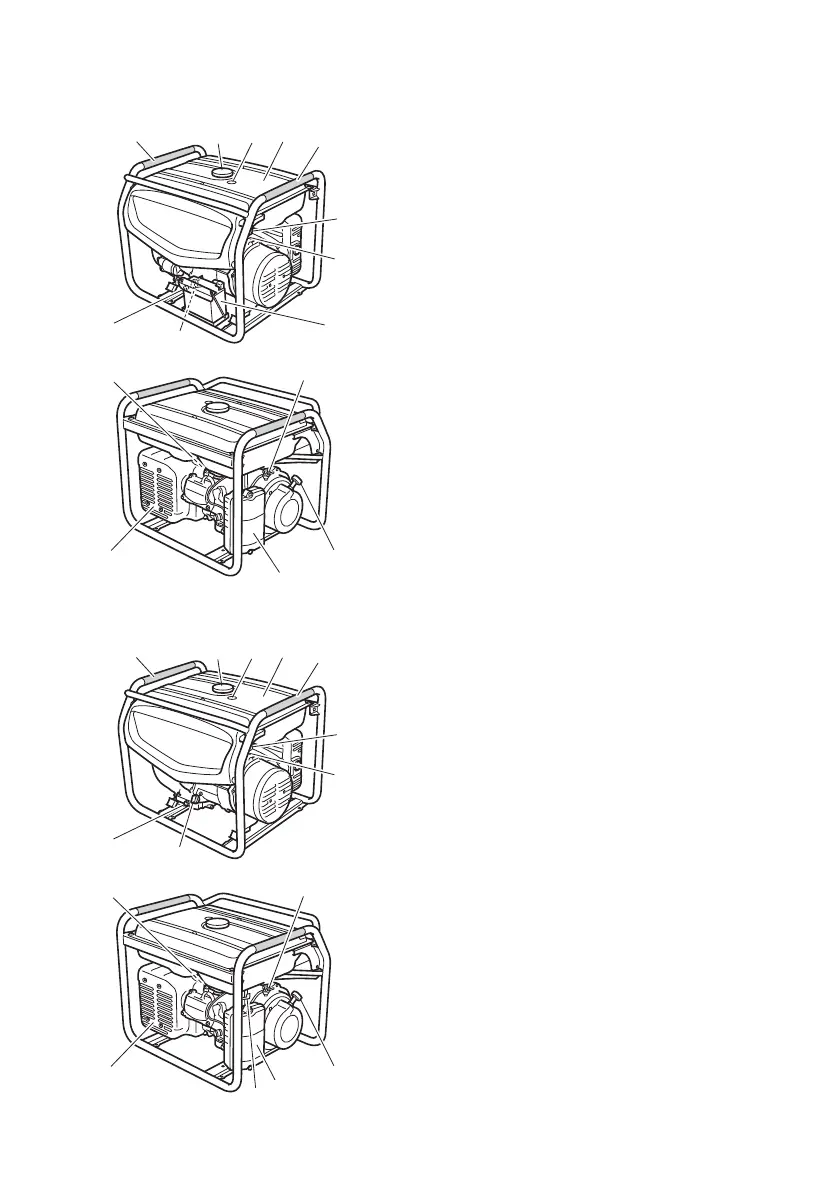

1 Carrying handles (shaded)
2 Fuel tank cap
3 Fuel level gauge
4 Fuel tank
5 Voltage adjuster
6 Ground (earth) terminal
7 Battery (For EF7200E, EF7200DE)
8 Oil filler cap
9 Oil drain bolt
0 Spark plug
q Fuel cock
w Recoil starter handle
e Air filter case cover
r Choke lever (For EF7200)
t Muffler
