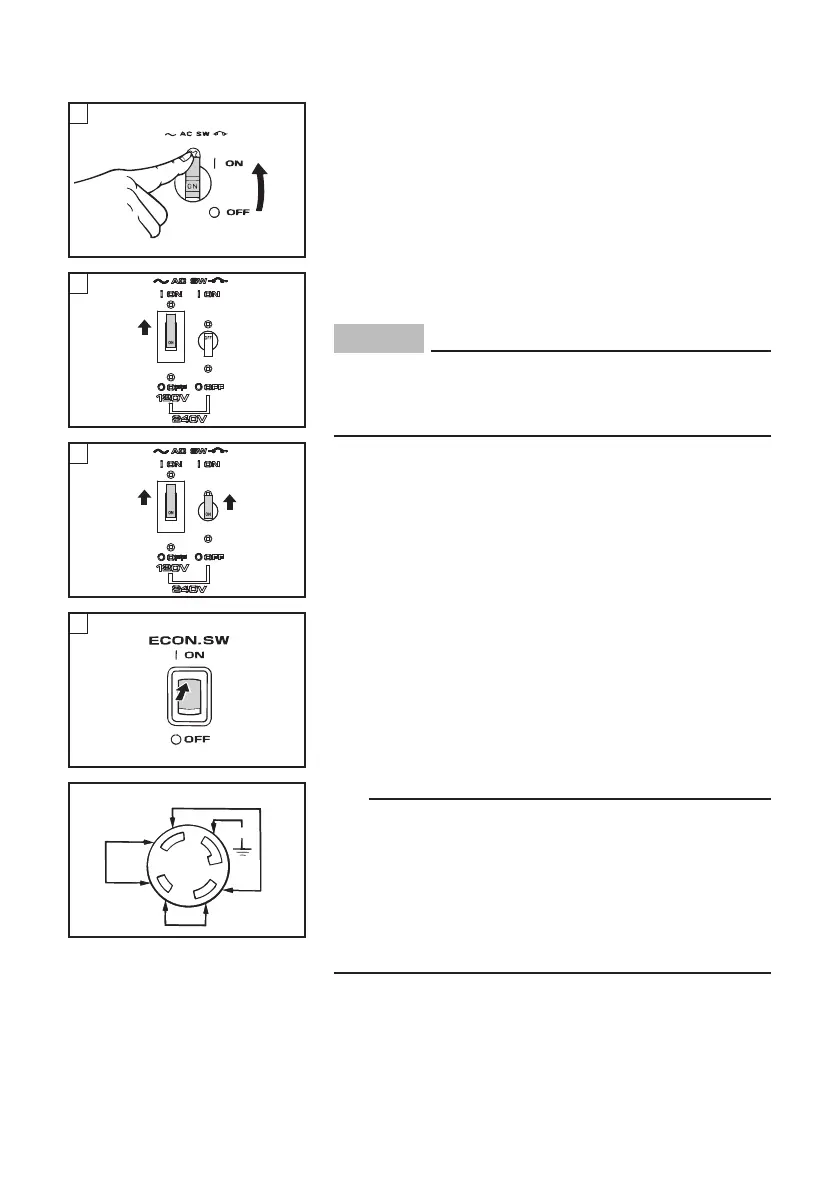

4. Turn the AC switch (N.F.B.) and economy control
switch to “I” (ON) and turn on any electric devices.
4 “I” (ON)
å EF7200/EF7200E
∫ AC 120 V can be used. (EF7200DE)
ç AC 120 V and 240 V can be used. (EF7200DE)
∂ Economy control switch (Except for EF7200)
NOTICE
Reduce the load to the specified generator rated
output if the AC switch (N.F.B.) turns off. If it turns
off again, consult a Yamaha dealer.
TIP
9 The 4-blade plug receptacle can supply both
120 V and 240 V power sources.
9 The economy control switch must be turned to “3”
(OFF) to increase engine speed to rated r/min
when:
- using a load of 0.8 A or less.
- supplying AC 120 V only from W with X.
