– 34 –
5. Install the muffler screen and muffler cap, and
then tighten the muffler cap bolt.
Muffler cap bolt tightening torque:
2.0 Nm (0.20 m·kgf, 1.4 ft·lbf)
6. Install the muffler cover and then tighten the muf-
fler cover bolts.
Muffler cover bolt tightening torque:
12 Nm (1.2 m·kgf, 8.7 ft·lbf)
3
2
1

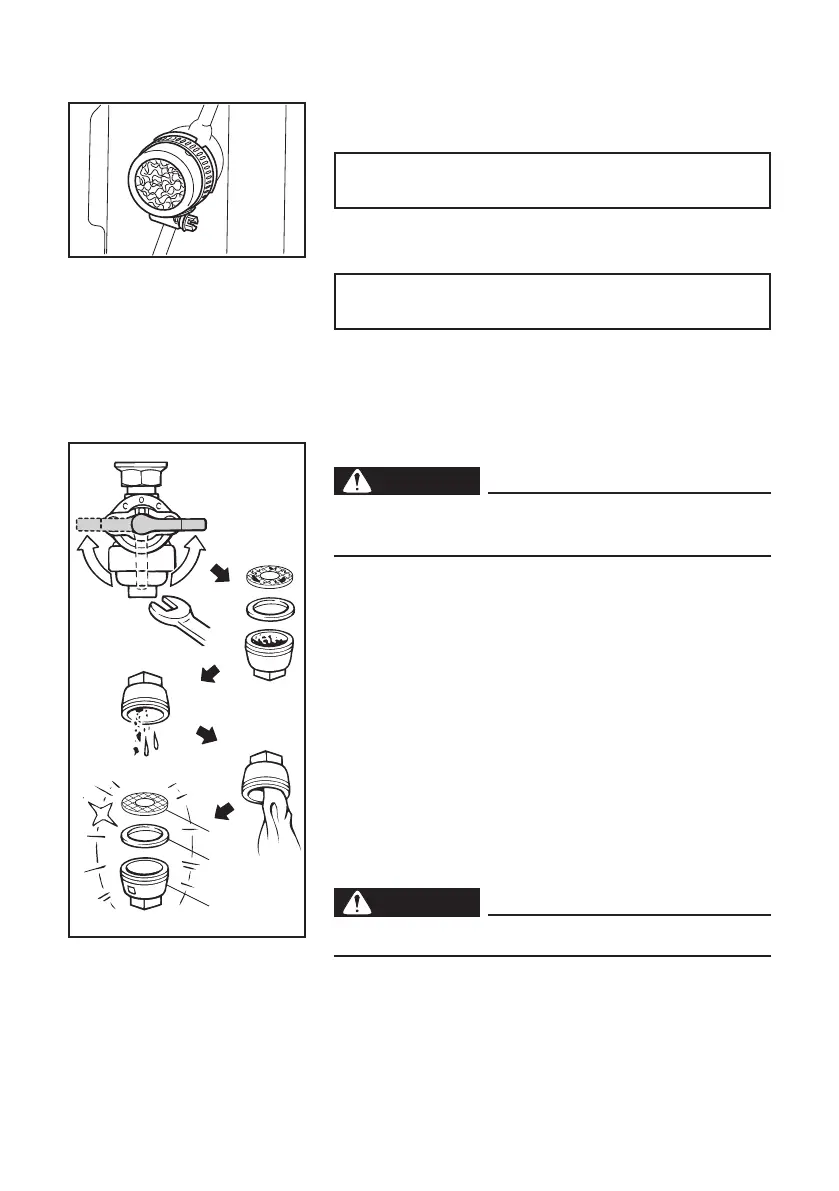

Fuel cock
WARNING
Never use the gasoline while smoking or in the
vicinity of an open flame.
1. Stop the engine.
2. Turn the fuel cock lever to OFF.
3. Remove the fuel cock cup, gasket and fuel strain-
er.
4. Clean the cup and fuel strainer with gasoline and
wipe it off.
5. Check the gasket. Replace it if damaged.
6. Install the fuel strainer, gasket and fuel cock cup.
WARNING
Be sure the fuel cock cup is tightened securely.
1 Fuel cock cup
2 Gasket
3 Fuel strainer
