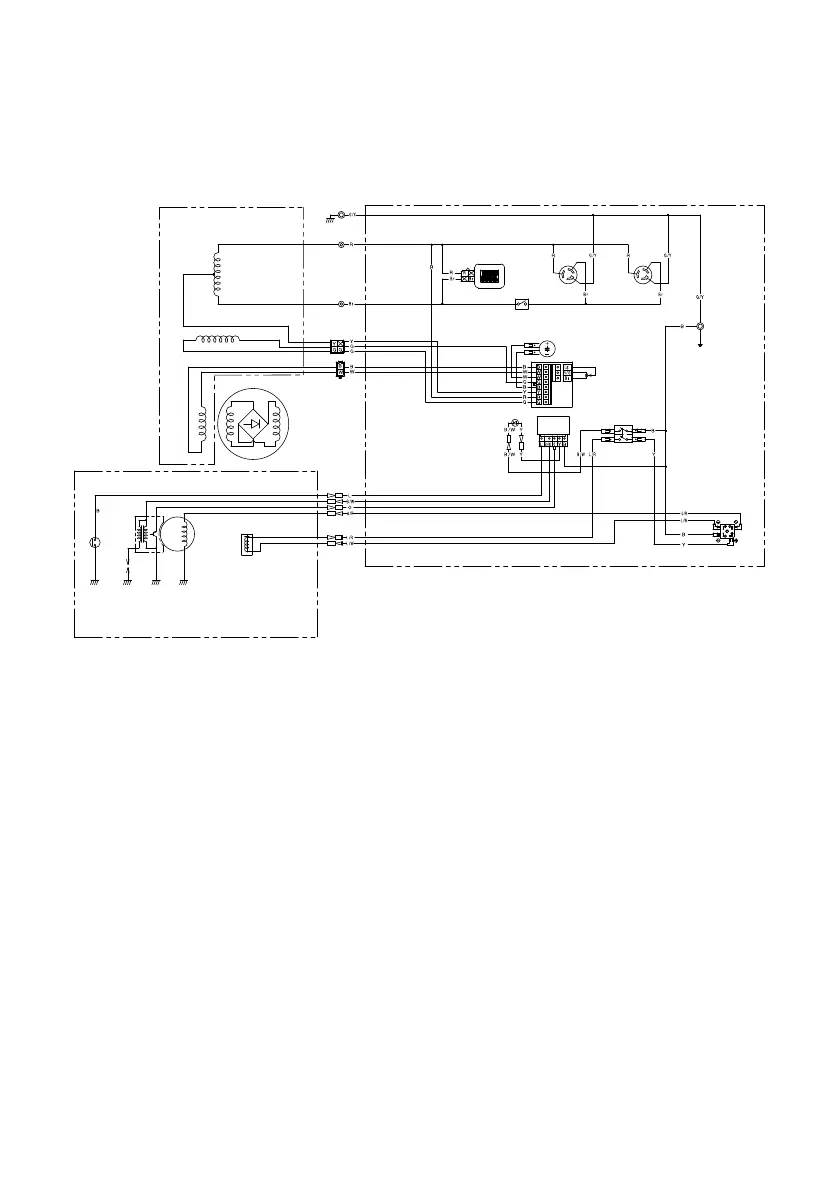

Yamaha EF7200E - Ef5500 Dfw; Ef5500 Fw

– 54 –
1 Rotor assembly
2 Exciter field coil
3 Sub coil
4 Main coil
5 Stator assembly
6 Voltage/hour meter
7 AC switch (N.F.B.)
8 AC receptacle
9 Engine switch
0 Rectifier
q Voltage adjuster
w Condenser
e AVR
r Oil warning unit
t Oil warning light
y Carburetor solenoid valve
u Charging coil
i Spark plug
Color code
B Black
Br Brown
G Green
L Blue
Lg Light green
O Orange
R Red
W White
Y Yellow
B/W Black/White
G/R Green/Red
G/Y Green/Yellow
L/R Blue/Red
L/W Blue/White
R/G Red/Green
o T.C.I. unit
p Oil level switch
1
2
4
5
6
7
8 8
0
q
w
r
t
y
u
o
i
p
e
3
9
EF7200
